22kw 60tf VY60A Hydraulic Static Pile Driver

Basic Information
Place of Origin: CHINA
Brand Name: SINOVO
Certification: CE/GOST/ISO9001
Model Number: VY60A
Minimum Order Quantity: ONE UNIT
Price: Negotiation
Packaging Details: International Export Carton Case Package
Delivery Time: ON STOCK
Payment Terms: T/T&L/C
Supply Ability: 30 set per month
Detail Information
Color: Blue Brand: SINOVO
Lifting Mechanism: Four Max. Piling Pressure: 60tf
Main Engine Power: 22KW Product Name: 22kw 60tf VY60A Hydraulic Static Pile Driver
Dimension: 6000*3700*3000mm Total Weight: 62t
High Light:



22kw Hydraulic Static Pile Driver


60ft Hydraulic Static Pile Driver

Product Description




22kw 60tf VY60A Hydraulic Static Pile Driver



VY series hydraulic static pile driver is a new pile foundation , using the powerful static pressure of the oil produced, smooth and quiet pressing prefabricated pile fast sinking. Easy operation, high efficiency, no noise and gas pollution, when pressed pile foundation, construction of soil disturbance small scope and extent of control for easy operation, good construction quality and other characteristics. VY series hydraulic static pile driver has been widely used in many areas, especially in coastal urban construction and transformation of the old pile.


Sinovo Hydraulic Static Pile Driver enjoys the common feafures of pile dirver such as high efficiency,energy saving, environmental-friendly and so on. Besides, we have more unique technique characteristics as following:

  • Unique design of clamping mechanism for each jaw to be adjusted with the shaft bearing surface to ensure the largest contact area with the pile,avoid damaging the pile.
  • Unique design of side/corner piling structure, improves the capacity of side/corner piling,the pressure force of side/corner piling up to 60%-70% of main piling. The performance is much better than hanging side/corner piling system.
  • Unique clamping pressure-keeping system can automatically fill in the fuel if the cylinder leak oil,ensuring high reliability of clamping pile and high quality of construction.
  • Unique terminal pressure-stabilized system ensures no float to the machine at rated pressure,greatly improving the safety of operation.
  • Unique walking mechanisim with lubrication cup design could realize durable lubrication so as to extend serivice life of rail wheel.
  • Constant & high flow power hydraulic system design ensures high piling efficiency.

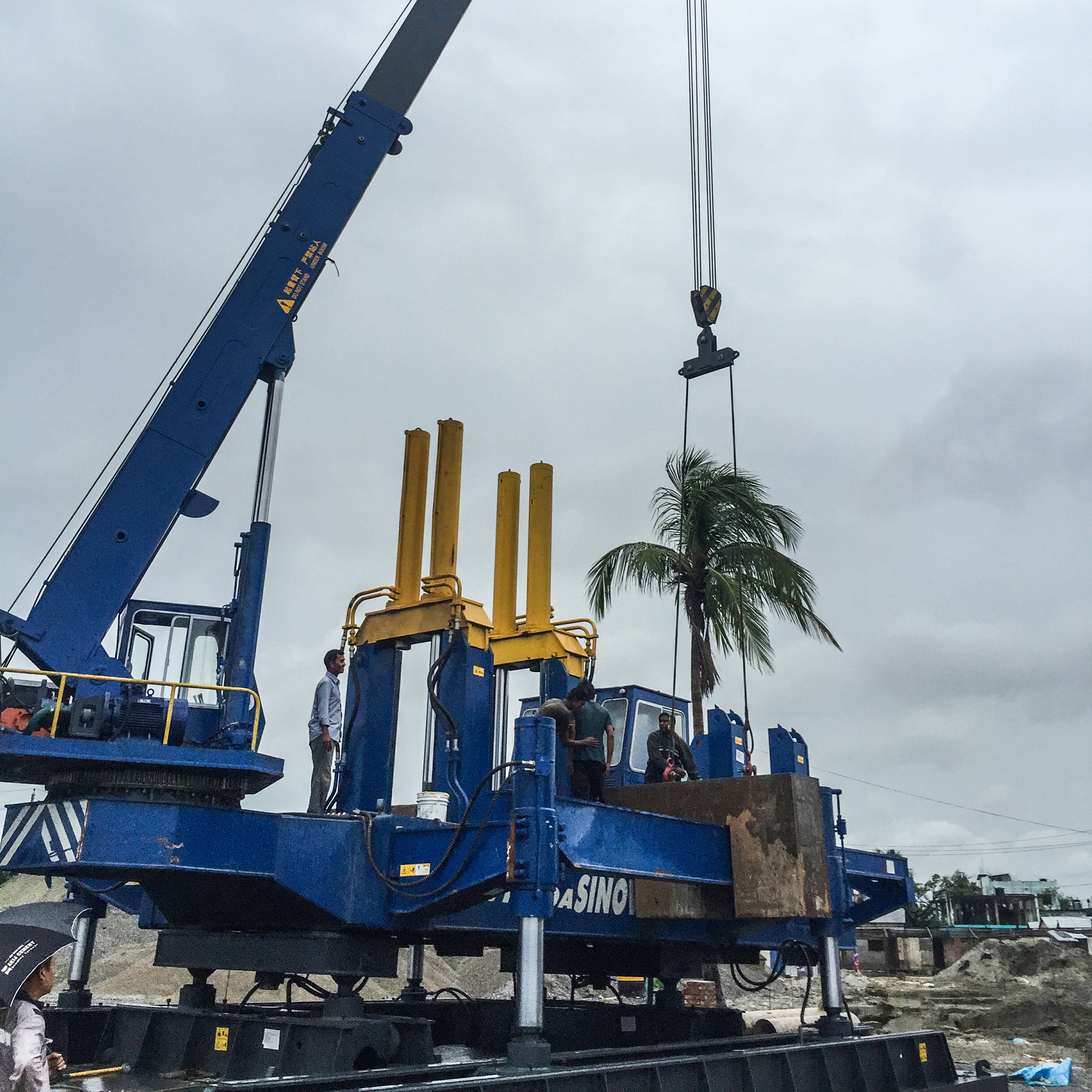

22kw 60tf VY60A Hydraulic Static Pile Driver 0


Main Technical Parameter


Model: VY60A



Max. piling pressure(tf) 60

Max. piling

speed (m/min)

Max 5.24
Min 1.8
Piling stroke (m) 1.5


stroke (m)

Longitudinal Pace 1.6



Slewing angle(°) 12
Rise stroke (mm) 650

Pile type


Square pile


Round pile


Min. Side Pile Distance(mm) 350
Min. Corner Pile Distance(mm) 470
Crane Max. hoist weight (t) 5
Max. pile length (m) 10
Power(kW) Main engine 22
Crane engine 7.5




Work length 6000
Work width 3700
Transportation height 3000
Total weight (t) 62




Q1: Do you have testing facilities?
A1: Yes, our factory has all kinds of testing facilities, and we can send their pictures and test documents to you.
Q2: Will you arrange installation and training?
A2: Yes, our professional engineers will guide on installation and commissioning at site and provide technical training as well.
Q3:Which payment terms can you accept?
A3: Normally we can work on T/T term or L/C term.
Q4: What logistics ways you can work for shipment?
A4: We can ship construction machinery by vanious transportation tools.
(1) For 80% of our shipment, the machine will go by sea, to all main continents such as Africa, South America, Middle East,
Oceania and Southeast Asia etc, either by container or RoRo/Bulk shipment.
(2) For inland neighborhood counties of China, such as Russia, Mongolia etc., we can send machines by road or railway.
(3) For light spare parts in urgent demand, we can send it by intemational courier service, such as DHL, TNT, or Fedex.

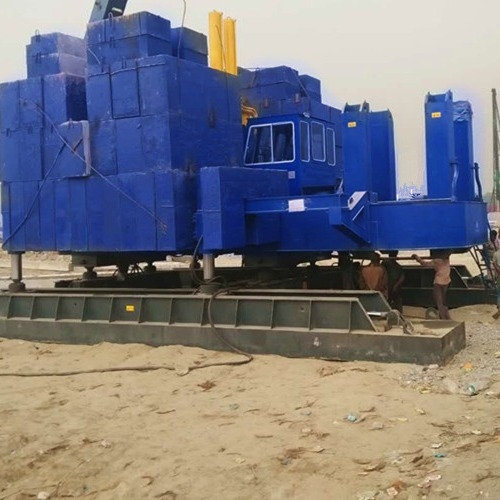

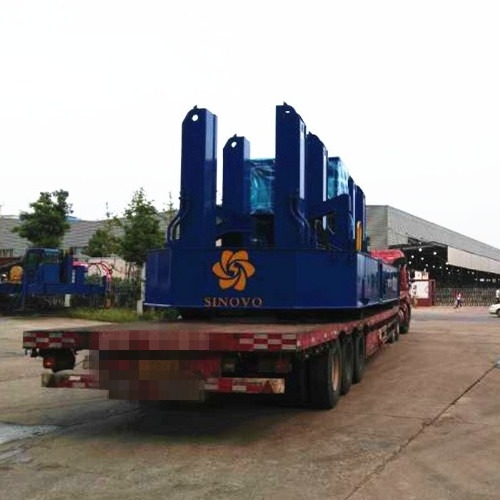

22kw 60tf VY60A Hydraulic Static Pile Driver 122kw 60tf VY60A Hydraulic Static Pile Driver 2
