VY180A Hydraulic Static Pile Driver , Durable piledriver machine no noise

Basic Information
Place of Origin: China
Brand Name: SINOVO
Certification: CE/GOST/ISO9001
Model Number: VY180A
Minimum Order Quantity: 1
Delivery Time: ON STOCK
Payment Terms: T/T&L/C
Detail Information
Color: Blue Brand: SINOVO
Lifting Mechanism: Four
High Light:

static pile driver


hydraulic pile driver

Product Description


 VY180A Hydraulic Static Pile Driver , Durable piledriver machine no noise


   VY series hydraulic static pile driver is a new pile foundation , using the powerful static pressure of the oil produced, smooth and quiet pressing prefabricated pile fast sinking. Easy operation, high efficiency, no noise and gas pollution, when pressed pile foundation, construction of soil disturbance small scope and extent of control for easy operation, good construction quality and other characteristics. VY series hydraulic static pile driver has been widely used in many areas, especially in coastal urban construction and transformation of the old pile.


   Sinovo Hydraulic Static Pile Driver enjoys the common feafures of pile dirver such as high efficiency,energy saving, environmental-friendly and so on. Besides, we have more unique technique characteristics as following:


  • Unique design of clamping mechanism for each jaw to be adjusted with the shaft bearing surface to ensure the largest contact area with the pile,avoid damaging the pile.
  • Unique design of side/corner piling structure, improves the capacity of side/corner piling,the pressure force of side/corner piling up to 60%-70% of main piling. The performance is much better than hanging side/corner piling system.
  • Unique clamping pressure-keeping system can automatically fill in the fuel if the cylinder leak oil,ensuring high reliability of clamping pile and high quality of construction.
  • Unique terminal pressure-stabilized system ensures no float to the machine at rated pressure,greatly improving the safety of operation.
  • Unique walking mechanisim with lubrication cup design could realize durable lubrication so as to extend serivice life of rail wheel.
  • Constant & high flow power hydraulic system design ensures high piling efficiency.

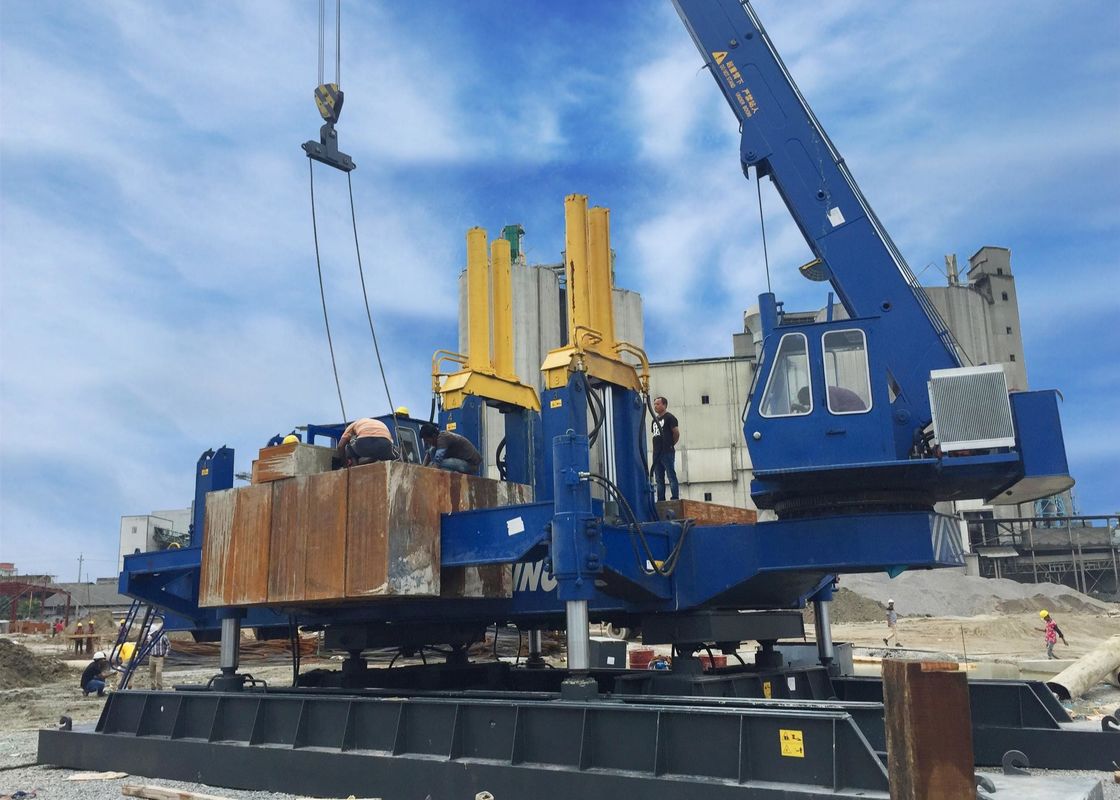

  • VY180A Hydraulic Static Pile Driver , Durable piledriver machine no noise 0

Main Technical Parameter


Model: VY180A





Max. piling pressure(tf) 180

Max. piling

speed (m/min)

Max 5.5
Min 2
Piling stroke (m) 1.6


stroke (m)

Longitudinal Pace 2.2



Slewing angle(°) 12
Rise stroke (mm) 700

Pile type


Square pile


Round pile


Min. Side Pile Distance(mm) 750
Min. Corner Pile Distance(mm) 1200
Crane Max. hoist weight (t) 8
Max. pile length (m) 12
Power(kW) Main engine 37
Crane engine 22




Work length 10000
Work width 5380
Transportation height 3000
Total weight (t) 182
