High flow power VY500A pile drilling machine environmental - friendly

China High flow power VY500A pile drilling machine environmental - friendly supplier
High flow power VY500A pile drilling machine environmental - friendly supplier High flow power VY500A pile drilling machine environmental - friendly supplier High flow power VY500A pile drilling machine environmental - friendly supplier

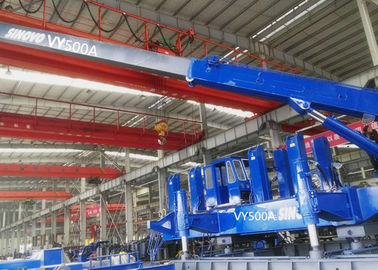

Large Image :  High flow power VY500A pile drilling machine environmental - friendly

Product Details:

Place of Origin: CHINA
Brand Name: sinovo
Certification: CE/GOST/ISO9001
Model Number: VY500A

Payment & Shipping Terms:

Minimum Order Quantity: ONE UNIT
Delivery Time: ON STOCK
Payment Terms: T/T&L/C
Contact Now
Detailed Product Description
Color: Blue Brand: SINOVO
Lifting Mechanism: Four



High flow power VY500A pile drilling machine environmental - friendly



   VY series hydraulic static pile driver is a new pile foundation , using the powerful static pressure of the oil produced, smooth and quiet pressing prefabricated pile fast sinking. Easy operation, high efficiency, no noise and gas pollution, when pressed pile foundation, construction of soil disturbance small scope and extent of control for easy operation, good construction quality and other characteristics. VY series hydraulic static pile driver has been widely used in many areas, especially in coastal urban construction and transformation of the old pile.



   Sinovo Hydraulic Static Pile Driver enjoys the common feafures of pile dirver such as high efficiency,energy saving, environmental-friendly and so on. Besides, we have more unique technique characteristics as following:



  • Unique design of clamping mechanism for each jaw to be adjusted with the shaft bearing surface to ensure the largest contact area with the pile,avoid damaging the pile.
  • Unique design of side/corner piling structure, improves the capacity of side/corner piling,the pressure force of side/corner piling up to 60%-70% of main piling. The performance is much better than hanging side/corner piling system.
  • Unique clamping pressure-keeping system can automatically fill in the fuel if the cylinder leak oil,ensuring high reliability of clamping pile and high quality of construction.
  • Unique terminal pressure-stabilized system ensures no float to the machine at rated pressure,greatly improving the safety of operation.
  • Unique walking mechanisim with lubrication cup design could realize durable lubrication so as to extend serivice life of rail wheel.
  • Constant & high flow power hydraulic system design ensures high piling efficiency.

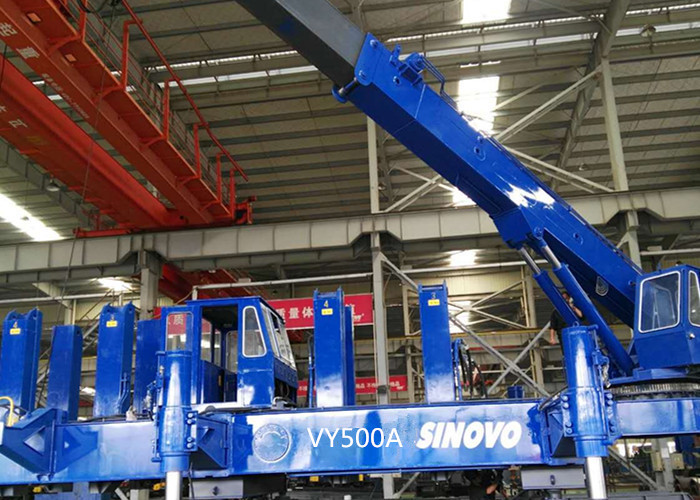

  • High flow power VY500A pile drilling machine environmental - friendly

Main Technical Parameter



Model: VY500A





Parameter



Max. piling pressure(tf) 500

Max. piling

speed (m/min)

Max 6.2
Min 1.1
Piling stroke (m) 1.8

Move

stroke (m)

Longitudinal Pace 3.6

Horizontal

Pace

0.6
Slewing angle(°) 10
Rise stroke (mm) 1000

Pile type

(mm)

Square pile

F300-F600

Round pile

Ø300-Ø600

Min. Side Pile Distance(mm) 1400
Min. Corner Pile Distance(mm) 1635
Crane Max. hoist weight (t) 12
Max. pile length (m) 14
Power(kW) Main engine 111
Crane engine 30

Overall

Dimension

(mm)

Work length 12500
Work width 7800
Transportation height 3280
Total weight (t) 502
