Sinovo VY700A 1.8m Strock Pile Driving Machine Hydraulic Static Pile Driver

Basic Information
Place of Origin: China
Brand Name: SINOVO
Certification: CE/GOST/ISO9001
Model Number: VY700A
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: International Export Carton Case Package
Delivery Time: ON STOCK
Payment Terms: T/T&L/C
Supply Ability: 30 set per month
Detail Information
Color: Blue Brand: SINOVO
Lifting Mechanism: Four Piling Stroke: 1.8m
Power: 119kw Overall Dimension: 14000*8290*3360mm
High Light:

static pile driver


hydraulic pile driver

Product Description

 Sinovo VY700A 1.8m Strock Pile Driving Machine Hydraulic Static Pile Driver


VY series hydraulic static pile driver is a new pile foundation , using the powerful static pressure of the oil produced, smooth and quiet pressing prefabricated pile fast sinking. Easy operation, high efficiency, no noise and gas pollution, when pressed pile foundation, construction of soil disturbance small scope and extent of control for easy operation, good construction quality and other characteristics. VY series hydraulic static pile driver has been widely used in many areas, especially in coastal urban construction and transformation of the old pile.


   Sinovo Hydraulic Static Pile Driver enjoys the common feafures of pile dirver such as high efficiency,energy saving, environmental-friendly and so on. Besides, we have more unique technique characteristics as following:


  • Unique design of clamping mechanism for each jaw to be adjusted with the shaft bearing surface to ensure the largest contact area with the pile,avoid damaging the pile.
  • Unique design of side/corner piling structure, improves the capacity of side/corner piling,the pressure force of side/corner piling up to 60%-70% of main piling. The performance is much better than hanging side/corner piling system.
  • Unique clamping pressure-keeping system can automatically fill in the fuel if the cylinder leak oil,ensuring high reliability of clamping pile and high quality of construction.
  • Unique terminal pressure-stabilized system ensures no float to the machine at rated pressure,greatly improving the safety of operation.
  • Unique walking mechanisim with lubrication cup design could realize durable lubrication so as to extend serivice life of rail wheel.
  • Constant & high flow power hydraulic system design ensures high piling efficiency.

Main Technical Parameter


Model: VY700A




Max. piling pressure(tf) 700

Max. piling

speed (m/min)

Max 6.65
Min 0.84
Piling stroke (m) 1.8


stroke (m)

Longitudinal Pace 3.6



Slewing angle(°) 8
Rise stroke (mm) 1100

Pile type


Square pile


Round pile


Min. Side Pile Distance(mm) 1400
Min. Corner Pile Distance(mm) 1635
Crane Max. hoist weight (t) 16
Max. pile length (m) 15
Power(kW) Main engine 119
Crane engine 30




Work length 14000
Work width 8290
Transportation height 3360
Total weight (t) 702

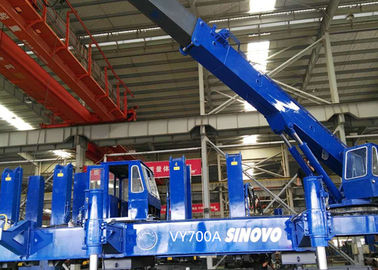

Sinovo VY700A 1.8m Strock Pile Driving Machine Hydraulic Static Pile Driver 0Sinovo VY700A 1.8m Strock Pile Driving Machine Hydraulic Static Pile Driver 1
