High Efficient Water Well Drilling Rig with Drilling Depth 200m 100 kw

Basic Information
Place of Origin: China
Brand Name: SINOVO
Certification: CE/GOST/ISO9001
Model Number: SIN200CA
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: export standard packing
Delivery Time: ON STOCK
Payment Terms: T/T&L/C
Supply Ability: 30 set per month
Detail Information
Max.Drilling Depth: 200m Max.Drilling Diameter: 500mm
Mud Pump: BW850/2A The Heighest Speed: 75 Km/h
Power: 100 Kw
High Light:

truck mounted drilling rig

,

portable water well drilling rig


Product Description

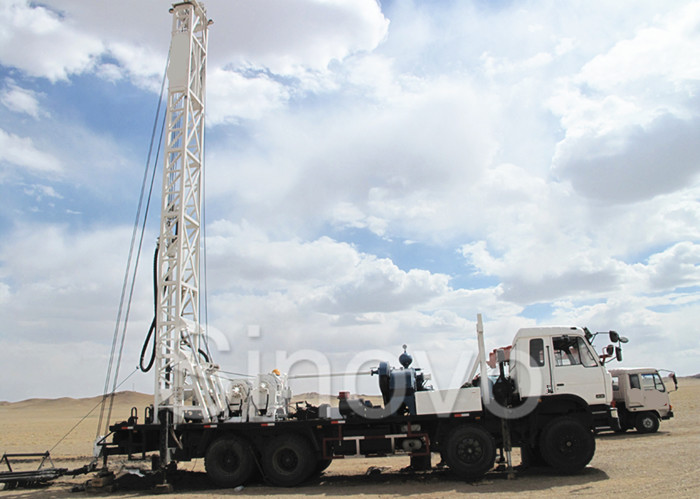

High Efficient Water Well Drilling Rig with Drilling Depth 200m 100 kw



 A water well drilling rig is a rig used for drilling water wells, installing underground pipes and cleaning wells. It is mainly composed of power unit, drill bit, drill rod, core barrel, drill stand etc.Generally, there are three types of water well drilling rig, which are rotary drill, percussion drill and combination drill. We are a specialized water well drilling rig manufacturer and supplier in China. Our SIN series water well drilling rig mounted on truck or trailer uses air circulation, mud or foam system, equipped with rotary tri- cone and down the hole hammer. It is highly efficient under many geological conditions, such as clay, sandy soil layer, bedrock, etc. In order to satisfy all water well drilling requirements, our water well drilling rig can be fitted with many optional accessories such as line lubricator, kelly bar loader, various mud pumps, air compressors, and more.



 Water Well Drilling Rig SIN200CA MAIN FEATURES



1.SIN200CA truck mounted drilling rig is designed by our engineers;It adopts truck munted and is a rotary drilling rig.

2.The truck chassis adopts the special crane chassis of brand CHANA TRUCK,the main transmit,transmisson power,gearbox,sets of windlass,mud pump,sewage pump,mast are set up on the chassis.

3.This rig is a rotary drilling rig with directional circulation,which is equipped with BW850/2A mud pump,it adopts the slurry as the washing fluid,it can drill on clay,sand and rock

4.The power of drilling rig comes from the truck engine,the rig sets up distribute implement and hydraulic system.

5.The master driving of rig is mechanical,the four jacks and mast are hydraulic operated.Distribute box,sewage pump,master driving clutch system are air operated.





Technical Parameters



Max.Drilling depth(M) 200
Max.Drilling diameter(mm) 500
speed of turntable (r/min) 6.7;10;17;43;63;108
Torque of turntable (KN.M) 14.5;9.7;5.7;2.3;1.5;0.9
Single rope lifting capacity of main windlass (KN) 30
The capacity of main windlass(KN) 180
Single rope lifting capacity of hydraulic windlass (KN) 30
The capacity of hydraulic windlass(KN) 120
The lifting capacity of hook(KN) 180
Bearing capacity of mast(KN) 180
The height of mast(mm) 10200
Bearing capacity(t) 25



BW850/2A mud pump



Diameter of cylinder(mm) 150
Stroke of poston (mm)  180
Theory of flow (L/min) 600    850
Rated pressure (Mpa) 3        2
Pounding times(min-1) 58      82
Diameter of suction tube(mm) 127
Diameter of drain pipe(mm) 64
Input speed(r/min) 470
Input power(kw) 40
Overall dimensions (mm) 2000x1030x1400
Weight(t) 1.5
