Hydraulic Crawler Drills With High Rotation Speed for Double Motor Lifting Force 50KN

Hydraulic Crawler Drills With High Rotation Speed for Double Motor Lifting Force 50KN

    • Hydraulic Crawler Drills With High Rotation Speed for Double Motor Lifting Force 50KN
    • Hydraulic Crawler Drills With High Rotation Speed for Double Motor Lifting Force 50KN
    • Hydraulic Crawler Drills With High Rotation Speed for Double Motor Lifting Force 50KN
    • Hydraulic Crawler Drills With High Rotation Speed for Double Motor Lifting Force 50KN
  • Hydraulic Crawler Drills With High Rotation Speed for Double Motor Lifting Force 50KN

    Product Details:

    Place of Origin: China
    Brand Name: SINOVO
    Certification: CE/GOST/ISO9001
    Model Number: SM-300

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Delivery Time: ON STOCK
    Payment Terms: T/T&L/C
    Contact Now
    Detailed Product Description
    High Light:

    drilling machines

    ,

    drilling engineering

    Double Motor Lifting Force 50KN Hydraulic Crawler Drills With High Rotation Speed

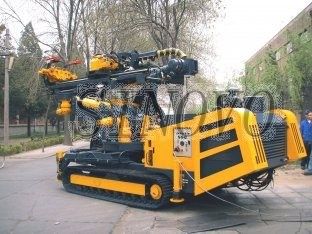

    SM-300 Hydraulic crawler drills


    SM-300 Rig is crawler Mounted with Top Hydraulic Drive rig .It is the new style rig our company designed and produced. The rig is mainly use for diamond bit drilling and carbide bit drilling of solid bed. It also can be use in Underpinning and pile drilling, Geotechnical Surveys drilling and Mineral Exploration drilling etc.



    SM-300 Hydraulic crawler drills - Technical specifications



    EURO standards

    U.S.standards

    ENGINE      Deutz Wind cooling diesel engine

    46KW

    61.7hp

          Hole diameter:

    Φ110-219 mm

    4.3-8.6inch

          Drilling angle:

    all directions

    Rotary head

          A. Back hydraulic rotary  head (drilling rod)



    Rotation speed

    Torque

    Torque

             Single motor

    low speed   0-120  r/min

    1600 N.m

    1180lbf.ft



    High speed  0-310  r/min

    700  N.m

    516lbf.ft

             Double motor

    low speed   0-60   r/min

    3200 N.m

    2360lbf.ft



    High speed  0-155  r/min

    1400 N.m

    1033lbf.ft

         B. Forward hydraulic rotary head (sleeve)



    Rotation speed

    Torque

    Torque

             Single motor

    low speed  0-60  r/min

    2500 N.m

    1844lbf.ft

             Double motor

    low speed  0-30  r/min

    5000 N.m

    3688lbf.ft

        C. Translation stroke:

    2200 N.m

    1623lbf.ft

    Feeding system:  single hydraulic cylinder driving the chain

         Lifting force

    50  KN

    11240lbf

         Feeding force

    35  KN

    7868lbf

     Clamps



        Diameter

    50-219  mm

    2-8.6inch

    Winch

     Lifting force

    15 KN

    3372lbf

    width of Crawlers

    2260mm

    89inch

    weight in working condition

    9000 Kg

    19842lb



    Main Features:

    (1)Top hydraulic head driver is droved by two high speed hydraulic motor. It can supply the great torque and the wide range of the rotation speeds.

    (2) Feeding and the lifting system adopt the hydraulic cylinders driving and chain transmission. It have the long feeding distance and giving the convenient for the drilling

    (3)The V style orbit in the mast can sure the enough rigidity between the top hydraulic head and the mast and give the stability at the high rotation speed.

    (4) Rod unscrew system make the operation simply

    (5)Hydraulic winch for lifting have the better lifting stability and good braking ability.

    (6) Rotation unit driving system is controlled by the Variable Flux Pump .it has the high efficiency.

    (7) Steel Crawlers drive by the hydraulic motor, so the rig has a wide maneuverability

    (8)the mast can turn 360oin horizontal direction, 90o/-20o in vertical direction. The height can be adjusted at 2500.it can drill hole in any orientations.

    (9) The rig hydraulic system control by the proportion valve and the circuit.
