Full Hydraulic Truck Type Water Well Drilling Equipment 132kw Diesel Engine Power

Basic Information
Place of Origin: China
Brand Name: Sinovo
Certification: CE/ISO
Model Number: SNR200CS
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Export package
Delivery Time: 7-15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30 sets per month
Detail Information
Drill Model: SNR200CS Diesel Engine Power: 132kw
Rotate Speed: 2200rpm Usage: Large Diameter Water Wells, Pile Holes, Mining Rescue And Other Projects
Mast Height: 7.2m Rod Diameter: 89/114mm
High Light:

geothermal drilling rigs


portable water well drilling rig


truck mounted drilling rig

Product Description

Full Hydraulic Truck Type Well Drilling Equipment 132kw Diesel Engine Power


SNR200CS full hydraulic double rotary head water well drilling rig, It can be drilled with DTH hammer, and can also be drilled with mud pump , casing rotator to meet different geological conditions. It is suitable for large diameter water wells, pile holes, mining rescue and other projects.


The rig can provide three different types of drilling rig, such as truck, trailer type and crawler type, according to the needs of the users.


The drilling rig is powered by two diesel engines. The upper rotary power head is made up of high-speed motor and gearbox, and the bottom rotary head is made up of low speed, high torque hydraulic motor and gearbox. The propulsion system is fed by the oil cylinder. Rotating and feeding system are controlled by hydraulic pilot control which can achieve stepless speed regulation. Breaking out and in drill rod, leveling the whole machine, winch and other auxiliary actions are controlled by hydraulic system. The structure of rig is designed to reasonable, which is easy to operate and maintenance.

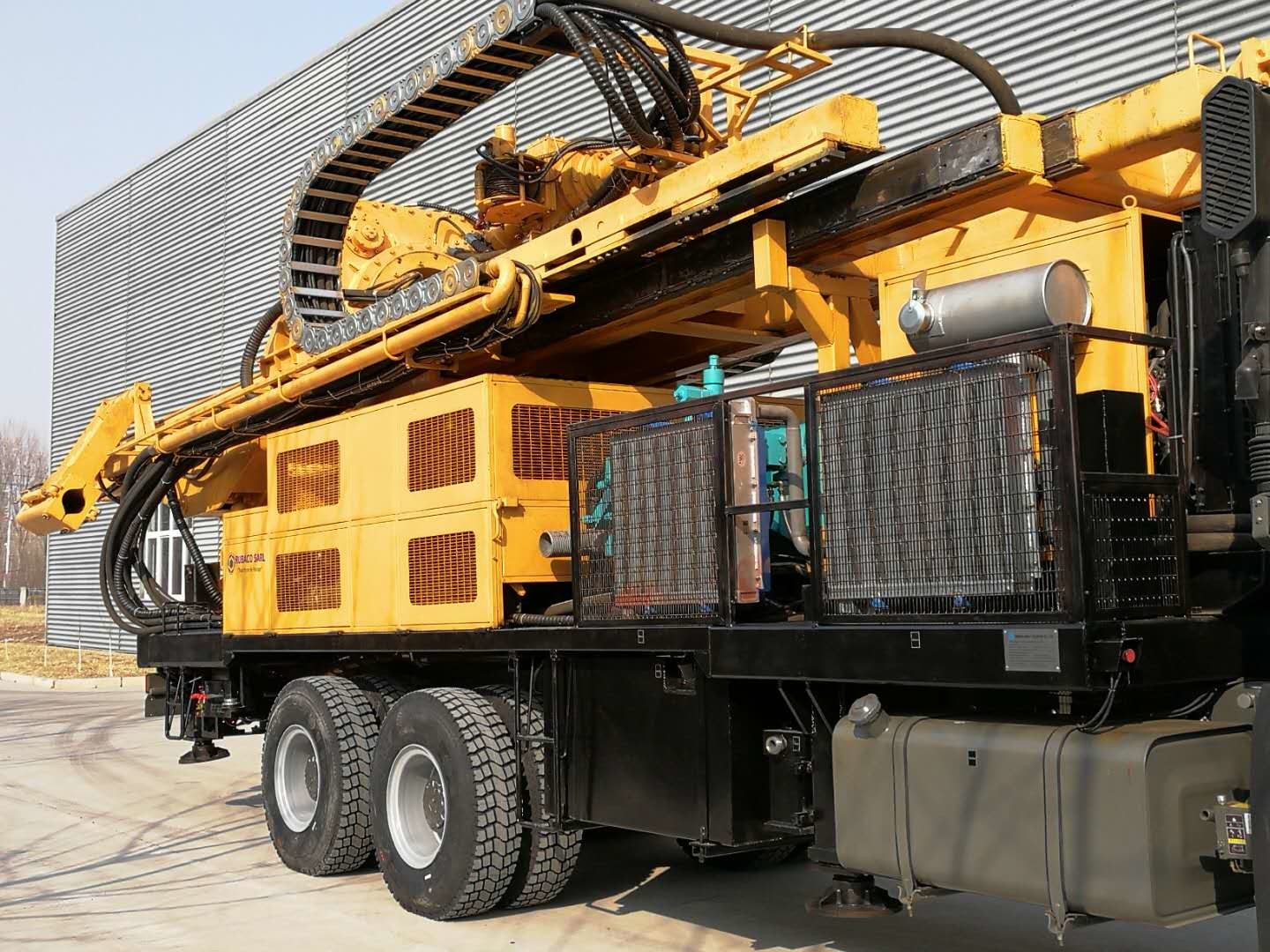

Full Hydraulic Truck Type Water Well Drilling Equipment 132kw Diesel Engine Power 0



Technical Parameters


Drill model SNR200CS
Diesel engine   Model Cummins 6BTA5.9-C180
KW Power 132
rpm Rotate speed 2200
Rotary head rpm Rotate speed 0-100
N.m Max. torque 18000
KN Max. pullback force 150
KN Max. feed force 150
Mast m Height 7.2
  Angle 0︒-90︒
m Stroke 4.5
Rod mm Diameter 89/114
RC (reverse circulation) drilling mm Max. diameter 1000
m Depth 200
Rock with water and air composite DTH mm Max. diameter 600
m Depth 100
m³/Kg Air consumption 31/24
New DTH mm Max. diameter 300
m Depth 300
m³/Kg Air consumption 31/24
Traditional DTH mm Max. diameter 300
m Depth 120
m³/Kg Air consumption 31/24
RC pump   Model 6,7
Mud pump   Model BW250/10
Winch KN Lifting force 15
Transport dimension Kg Weight 9200
LxWxH mm Overall dimensions 7200x2200x2880


Rig operation by truck or trailer or crawler Mast extension Breakout cylinder Air compressor
Centrifugal pump Mud pump Water pump Foam pump
RC pump Screw pump Drill pipe box Pipe loader arm
Opening clamp Support jack extension
