TG42 261kw Diaphragm Wall Machine Depth Of Trench 80m For Retention Systems Permanent Foundation Walls

Basic Information
Place of Origin: China
Brand Name: Sinovo
Certification: CE/ISO
Model Number: TG42
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: 7-10 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30 set per month
Detail Information
Model: TG42 Width Of Trench: 600 - 1500mm
Depth Of Trench: 80m Max. Pull Force: 420kn
Engine Power: 261kw Undercarriage Model: CAT336D
High Light:

diaphragm wall machine

,

heavy construction equipment


Product Description

261kw Diaphragm Wall Equipment For Retention Systems Permanent Foundation Walls



General Introduction

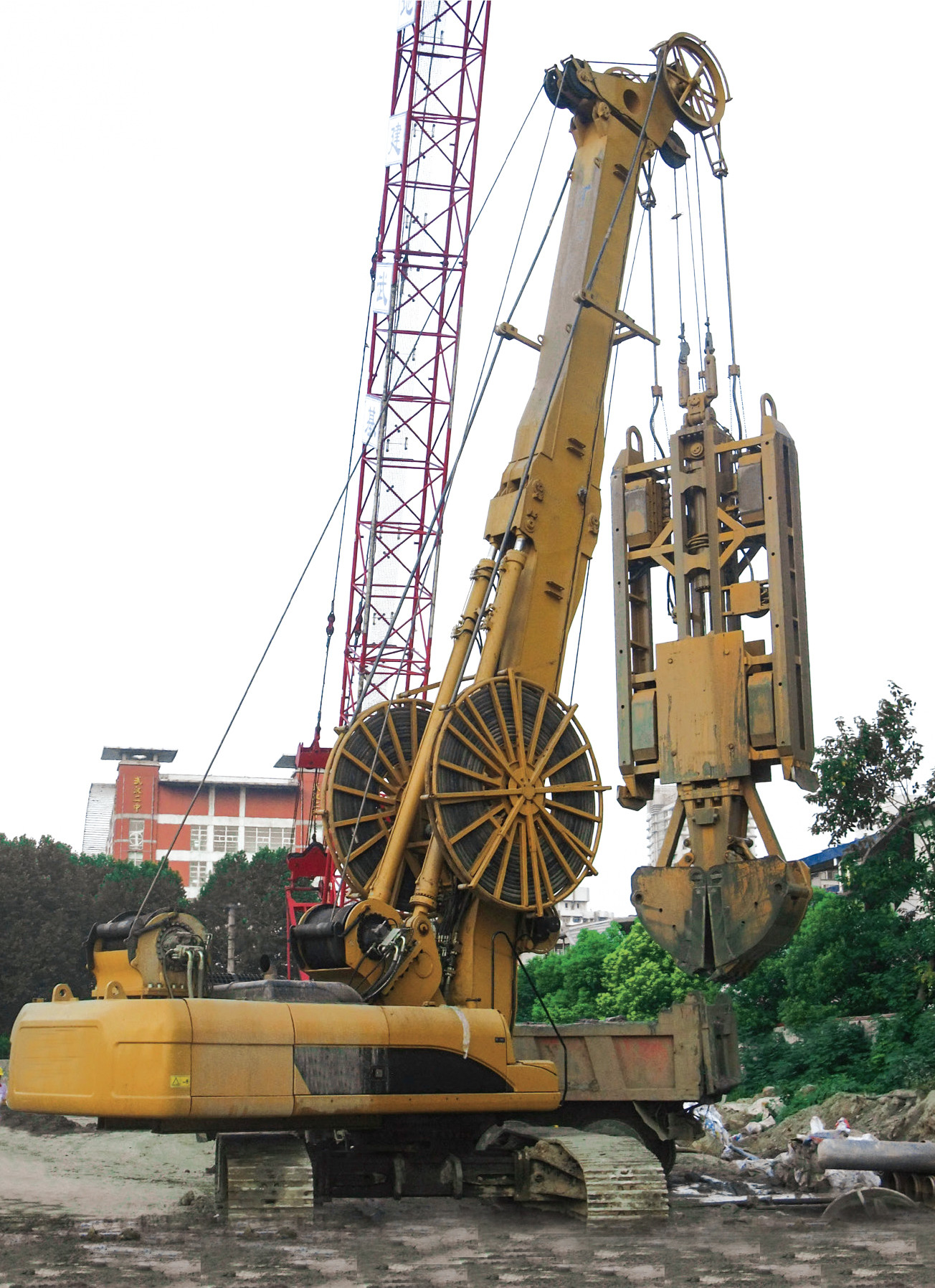

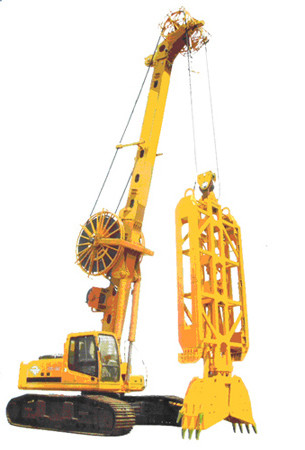

TG series hydraulic diaphragm wall grabs are current main equipment of diaphragm construction,and it has advantages including high efficiency construction, accurate measurement,and high quality of wall.



It is mainly used in the construction of water-resisting wall,bearing wall in deep foundation engineering of large-scale construction. projects, such as metro station basement in high rise building, underground parking, underground business street,port,mining,reservoir dam engineering and others.



The TG42 is highly hydraulic controlled, easy to relocate,safe and conformable to operate, excellent in working stability and highly cost effective. In addition TG series hydraulic diaphragm wall grabs build the wall rapidly and requires small amount of protective mud,especially suitable for operations in areas with high urban population density or close to the buildings.



TG series are designed with innovative push-plate alignment system having greater structural superiorityas compared with other brands, the homing of grab are easier and faster. With 1-cylinder connecting rod(push plate mechanism)and 2-cylinder connecting rod(4-rod mechanism)zero adjuster,the arm can be calibrated at any time in progress.





Advantages:


Byadherence to independent innovation, we have designed and developed the following key technologies:



1. With 1-cylinder connecting rod(push plate mechanism and 2-cylinder connecting rod(4-rod mechanism)zero adjusters, the arm can be calibrated at any time in progress.
2. High-efficiency construction and a powerful grab closing force, which is beneficial to construction of diaphragm wall in complex strata; hoisting speed of winding machine is fast and auxiliary time of the construction is short.
3. Inclinometer, longitudinal rectification and lateral rectification devices are mounted can make the bearing conditioning for slot wall and can have a good rectifying effect in the construction of soft soil layer.



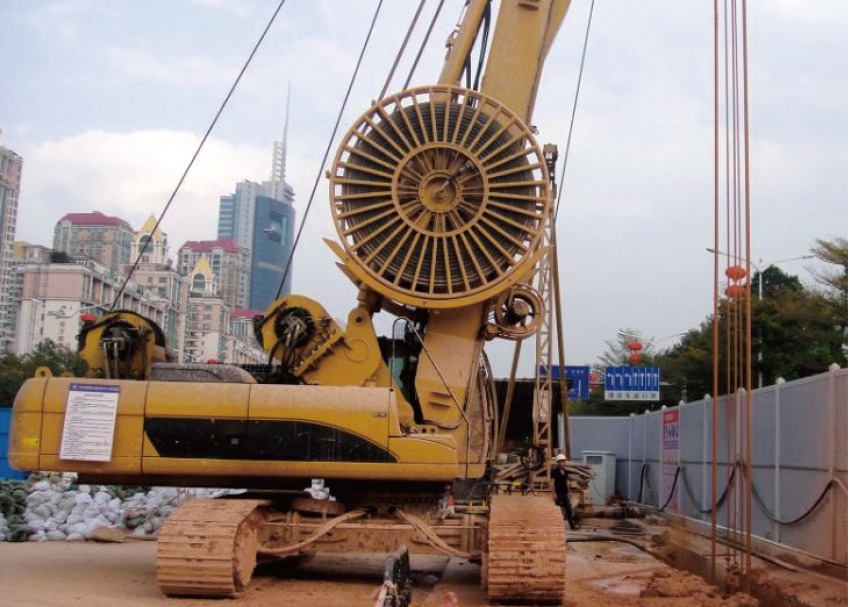

TG42 261kw Diaphragm Wall Machine Depth Of Trench 80m For Retention Systems Permanent Foundation Walls 0



Technical parameters
  Euro Standards U.S Standards
Width of trench 600 - 1500mm 31- 59in
Depth of trench 80m 262ft
Max. pull force 420kN 94420 lbf
Volume of grab bucker 0.8-2.1 m³ 0.8-2.1 m³
Undercarriage Model CAT336D CAT336D
Engine power 261KW 350HP
Pull force of main winch (The first layer)
Extendable undercarriage (mm) 800mm 31 in
Track shoe width 3000-4300mm 118-170in
System Pressure 35Mpa 5076psi
