Easy Operation Diaphragm Wall Machine 261KW Engine Power 500kn Max Pull Force

Basic Information
Place of Origin: China
Brand Name: Sinovo
Certification: CE/ISO
Model Number: TG50
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detail Information
Model: TG50 Width Of Trench: 800 - 1500mm
Depth Of Trench: 80m Max. Pull Force: 500kn
Volume Of Grab Bucker: 1.1-2.1 M³ Engine Power: 261KW
High Light:

diaphragm wall machine


heavy construction equipment

Product Description

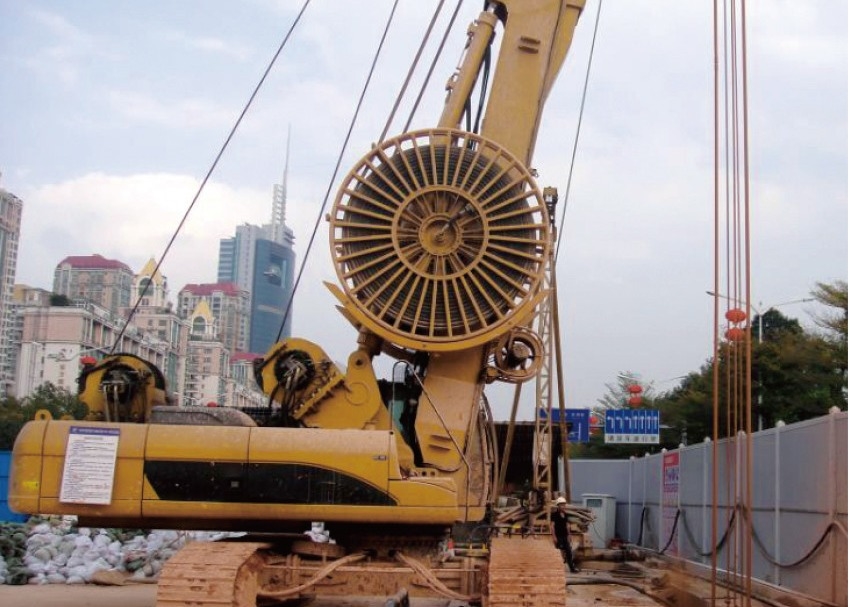

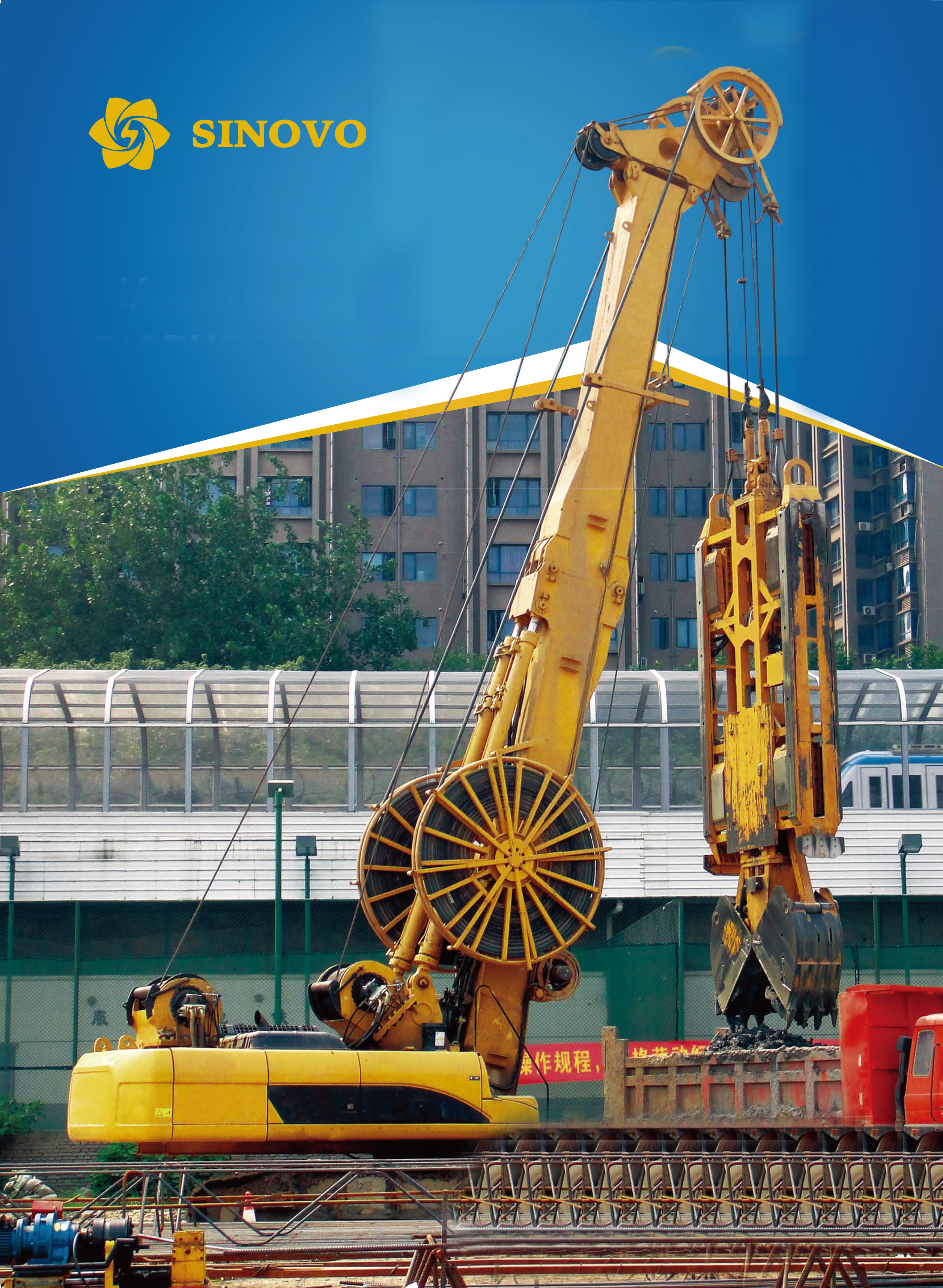

TG50 Diaphragm Wall equipment Depth of Trench Can Reach 80

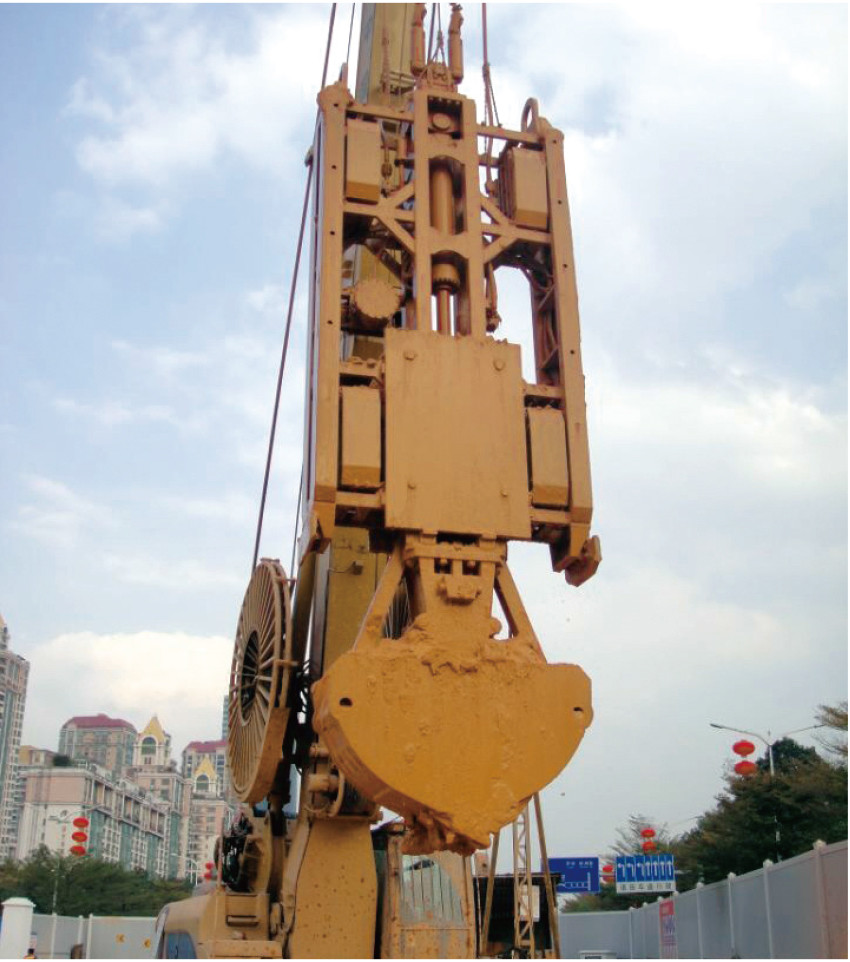

Diaphragm walls are underground structural elements principally used for retention systems and permanent foundation walls. Our TG series hydraulic diaphragm wall grabs are ideal forpit strutting, dam anti-seepage, excavation support, dock cofferdam and foundation element, and are also suitable for the construction of square piles.As a result of their undoubted strength, simplicity and low running cost,our TG Series cable-operated grabs for diaphragm Walls are widely used in the construction of foundations and trenches.Rectangular or semicircular jaws with their relative guides are interchangeable on the actual grab body. Unloading is done by taking advantage of the grab body's weight. When released by the rope,the grab descends with considerable force, thus helping unload material from the jaws.


It is one of the most efficient and versatile construction machines on the market .





By adherence to independent innovation, we have designed and developed the following key technologies:


1. Advanced measure system:

The grab has equipped advanced touch-screen computer measure system recording and displaying the dug depth and inclination of hydraulic grab bucket. Its depth,hoisting speed and location of X, Y direction can be displayed accurately in the screen, and its measured inclination degree can reach 0.01, which can be saved and print and output automatically by computer.
2.  Reliable security protection system: security control level and multi center electric detection system are set in car cab can forecast the work status of main components at any time.
3. Grab rotary system: grab rotary system can make relative boom rotary, under the conditions that the chassis cannot be moved, to complete the wall construction at any angle, which greatly improve the adaptability of equipment.
4. Advance-performance chassis and comfortable operation system: using special chassis ofCAT,valve,pump and motor of Rexroth, with advance performance and easy operation. The cabin equip with air condition,stereo,full adjustable driver seat, with features of easy operation and comfort.



Technical parameters
  Euro Standards U.S Standards
Width of trench 800 - 1500mm 31- 59in
Depth of trench 80m 262ft
Max. pull force 500kN 112404lbf
Volume of grab bucker 1.1-2.1 m³ 1.1-2.1 m³
Undercarriage Model CAT336D CAT336D
Engine power 261KW 350HP
Pull force of main winch (The first layer)
Extendable undercarriage (mm) 800mm 31 in
Track shoe width 3000-4300mm 118-170in
System Pressure 35Mpa 5076psi
