SM1100B Full Hydraulic Crawler Drills Multifunctional Drilling Machine 20Mpa Pressure

Basic Information
Place of Origin: China
Brand Name: SINOVO
Certification: CE/ISO/SGS
Model Number: SM1100B
Minimum Order Quantity: 1
Payment Terms: L/C, D/A, D/P, T/T
Detail Information
Diesel Engine Model: Cummins 6BTA5.9-C150 Rated Output&Speed: 110/2200kw/rpm
Hydraulic Sys. Pressure: 20Mpa Rotary Head Type: XW230
Max Torque: 23000N.m Weight: 11000KG
High Light:

hydraulic crawler drills

,

drilling machines


Product Description

SM1100B Full Hydraulic Crawler Multifunctional Drilling Rig The Mast Can Turn 360° in Horizontal Direction



The full hydraulic crawler multifunctional drilling rig is a piece of advanced drilling equipment that is developed by our company and TEC System Company of France. All the functions of this equipment are carried out by hydraulic system,but controlled by electrical system.This drilling rig can be used in many applications,such as tunneling,metro,foundation and so on.





Features of Multifunctional Drilling Rig



1. Compact in structure,our drilling rig is ideally suited for working in limited spaces
2. The mast of this machine can turn 360° in horizontal direction, 120°/ -20°in vertical direction. The height can be adjusted at 2650 mm.So drilling in all directions can be realized
3. The translation of mast can reach 3600 mm, resulting in high efficiency
4. Easy control of this machine is achieved due to the use of electric controller
5. The functions include translation and rotation of the pivot, tilting angle adjusting of the mast, reposition of the drilling hole, pull-down pressure adjusting, pull up speed adjusting, rotation speed adjust of rotation head etc
6. Equipped with powerful engine,our drilling rig can be used in a wide range of engineering constructions.





Technical parameters



Multifunctional drills- Technical specifications
  EURO standards U.S.standards
Power
Diesel 109KW 146hp
Bi-motor(diesel+electric) 47KW(diesel)+90KW(electric) 63hp(diesel)+120.7hp(electric)
Mast
Tilting angle from -20° to +90° from -20° to +90°
Pull down 0-60KN 0-13489lbf
Pull up 0-70KN 0-15737lbf
Translation stroke 3600mm 142inch
Length of mast 6250mm 246inch
Rotation of mast from -180°to +180° from -180° to +180°
Rotary head
Torque 7210-900N.m 5318/664lbf.ft
Speed 50-600rpm 50-600rpm
Winch
Lift capacity 2T 4409lb
Clamps
diameter 70-225mm 2.8-8.9inch
Crawler
Width of crawler 500mm 96.9inch
Length of crawler 2460mm 20inch


SM1100B Full Hydraulic Crawler Multifunctional Drilling Rig



Specification Unit Item
SM1100B
Power Diesel Engine Model   Cummins 6BTA5.9-C150
Rated Output&Speed kw/rpm 110/2200
Hydraulic sys. Pressure Mpa 20
Hydraulic sys.Flow L/min 85, 85, 30, 16
Rotary Head work model   Rotation
type   XW230
max torque N.m 23000
max rotating speeding r/min 44
Percussion Frequency min-1 /
Percussion Energy Nm
Feed Mechanism Feeding Force KN 53
Extraction Force KN 71
Max .Feeding Speed m/min 40.8
Max. Pipe Extract Speed m/min 30.6
Feed Stroke mm 4100
Traveling Mechanism Grade Ability   27°
Traveling Speed km/h 3.08
Winch Capacity N 20000
Clamp Diameter mm Φ65-273
Clamp Force kN 190
Slide stroke of mast mm 1000
Total weight kg 11000
Overall Dimensions(L*W*H) mm 6550*2200*2800

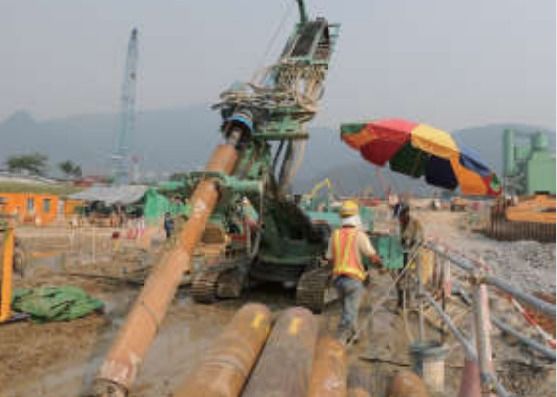

SM1100B Full Hydraulic Crawler Drills Multifunctional Drilling Machine 20Mpa Pressure 0

SM1100B Full Hydraulic Crawler Drills Multifunctional Drilling Machine 20Mpa Pressure 1
