Transporting Crane Lifting Height 7.5m Pipe Laying Machine

Basic Information
Place of Origin: China
Brand Name: SINOVO
Certification: CE/ISO/SGS
Model Number: TSDY38
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: 7-10 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30 set per month
Detail Information
Model: TSDY38 Max Travelling Speed: 3km/h
Travel Reducer: Brevini Max Torque Of Hoist: 600kn.m
Crane Lifting Height: 7.5m Usage: Pipe Layer
High Light:

pipelayer equipment


pipe laying machine


pipeline crane

Product Description

Erysipelas machine

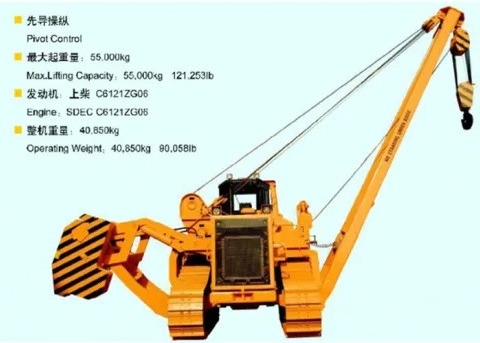

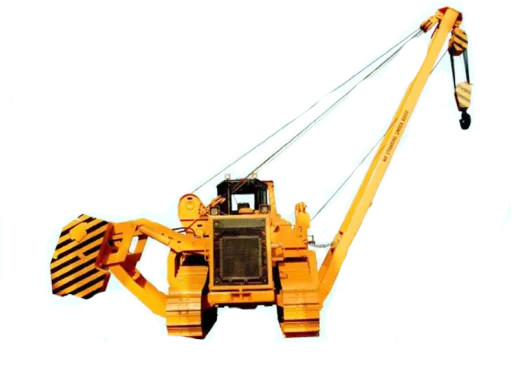

TSDY38 Pipelayer machine, with an auxiliary winch, has the function of lifting pipes and serves as ideal equipment set for transporting steel pipe. Besides, the machine can move in wetland and is available for land transportation.


Technical Parameters:


1. The pipelayer employs Volvo engine and Rexroth main pump with reliable quality and stability.

2. The machine comes with a pipe transporting device. The device is equipped with a pipe clamper which protects the steel from falling down during transportation and also avoids pipe broken caused by the force.

3. The auxiliary winch can provide 20-ton pulling force that can be used for dragging heavy goods or self-help. For instance, when the pipelayer machine gets stuck in a low-lying land, the winch will help the machine get out from it.

4. The crane can lift the 8-ton goods to a height as high as 7.5m.

5. The crawler is extendable and its width reaches up to 3.36 meters after contracted completely. The whole machine is 3.6 meters in height. A flat truck with the height of 800mm is available to load and transport the machine.

6. The crawler comes with attached floating boxes that largely decrease the pressure onto the ground. With 0.046 Mpa specific pressure, the product is not easy to cave in the mire, river way and other soft ground.

7. Traveling Speed: 3 km/h


Basic Info.

Model NO. TSDY38
Max Travelling Speed 3km/h
Travel Reducer Brevini
Max Torque of Hoist 600kn.m
Crane Lifting Height 7.5m
Ground Pressure Non Load 0.0288MPa
Total Weight 38tons
Usage Pipe Layer
Power Type Diesel
Trademark Beijing Sinovo
Transport Package Wooden Case
Specification 10100X4955X3600MM
Origin Beijing
HS Code 8479109000
