| Place of Origin: | China |
|---|---|
| Brand Name: | SINOVO |
| Certification: | CE/ISO/SGS |
| Model Number: | SPY90 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-10 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30 set per month |
| Model NO.: | SPY90 | Model Of Diesel Engine: | Cummins Nta855-C360 |
|---|---|---|---|
| Rated Power: | 257Kw | Track Shoe Width: | 760mm |
| Usage: | Pipe Layer | Power Type: | Diesel |
| Specification: | 5.7x4.95x8.13M | Be Used In: | Frigid Zone Tropics Desert Marsh Area |
| Highlight: | pipelayer equipment,pipe laying machine,pipeline crane |
||

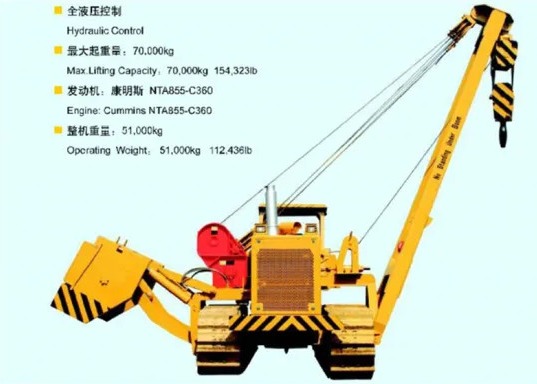

SPY90 HYDRAULIC PIPELAYER
MAIN FEATURES:
1. Adopt special designed chassis for pipelayer, two optional track shoe width.
2. Adopt load sensitive hydraulic system. Wrist control type single lever (Joystick) for easy operation and realize the compound movement.
3. Turbo intercoller Cummins Engine, which reserves enough power to meet any touch working conditions.
4.Modular design has facilitated removal/installation of components and shorten machine downtime.
5. Well-equipped safety device such as automatic load moment limiter, hoisting height limit switch. Boom buffer limiter device, make operation more safer.
6. Main components of hydraulic system adopt qualified international famous brand enhancing the reliability of the product.
7. Customized integrated solution for different working environment such as the frigid zone, the tropics, deserts and marsh area.
Basic Info.
| Model NO. | SPY90 |
| Rated Power | 257kw |
| Model Of Diesel Engine | Cummins Nta855-C360 |
| Operating Weight | 57.3t |
| Track Shoe Width | 760mm |
| Rated Working Pressure Of System | 20000kpa |
| Diameter of Wire Rope | 22mm |
| Usage | Pipe Layer |
| Power Type | Diesel |
| Trademark | Beijing Sinovo |
| Transport Package | Wooden Case |
| Specification | 5.7X4.95X8.13M |
| Origin | Beijing |
| HS Code | 8479109000 |
Technical Parameter:
| Main Specifications | ||
| Max. lifting capacity | 90,000kg | |
| Lfting capacity with jib | 3,000kg | |
| Max lfting moment at Min. overhang | 1076kN.m(882kn*1.22m) | |
| Max. Lifting moment at Max. overhang | 891.8kN m(127.4kN*7m) | |
| Max lifting height of hook | 5.75m | |
| Boom length | 7.35m | |
| Track shoe width | 760mm | |
| Hoisting speed (six part line) | 6 m/min | |
| Boom elevating time | 60s | |
| Model of chassis | DGY-90 | |
| Model of diesel engine | COMMINS NTA855-C360 | |
| Rated power | 257kw | |
| Temperature of surroundings | -30℃~+40℃ | |
| Rated working pressure of system | 20.000kPa | |
| Hook winch | Hydraulically driven, Planetary transmission,Free-fall function | |
| Boom winch | Hydraulically driven, Planetary transmission,Free-fall function | |
| Model of Hydraulic pump | CBY4125/4100k1008 | |
| Dia. of wire rope | 22mm | |
| Ground pressure without load | 104kpa | |
| Overall dimension(LengtheWidth+Height) | With boom | 5.7*4.95*8.13m |
| Without boom | 5.7*3.47*3. 30m | |
| Operating weight | 57300kg | |
