1000m Drilling Depth Hydraulic Waterwell Drilling Rig Mounted on truck or crawler

Basic Information
Place of Origin: China
Brand Name: SINOVO
Certification: CE/ISO/SGS
Model Number: SNR1600
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: 7-10 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30 sets per month
Detail Information
Model: SNR1600 Max Drilling Depth: 1600m
Drilling Diameter: 105-1000mm Air Pressure: 1.65-8Mpa
Rod Length: 4.5m Rod Diameter: 127mm
Weight: 30t Drilling Method: Top Drive Hydraulic Rotary And Pushing, Hammer Or Mud Drilling
High Light:

Hydraulic Waterwell Drilling Rig


1000m Depth Waterwell Drilling Rig

Product Description

1000m Drilling Depth Water Well Drilling Machine For Drilling Wells


We are a specialized water well drilling rig manufacturer and supplier in China. Our SNR series water well drilling rig mounted on truck or trailer uses air circulation, mud or foam system, equipped with rotary tri-cone and down the hole hammer. It is highly efficient under many geological conditions, such as clay, sandy soil layer, bedrock, etc. In order to satisfy all water well drilling requirements, our water well drilling rig can be fitted with many optional accessories such as line lubricator, kelly bar loader, various mud pumps, air compressors, and more.



Basic Information:


Full hydraulic multi-functional water well drill rig, the mainly drilling method is muddy wheel rotary driling, and DTH Hammer Drill is an auxiliary, can meet the drilling requirements of different geological conditions driling and other vertical holes. It is widely used in engineering construction for drilling wells,monitoring wells and ground-source heat pump air-conditioner, and also applied in hole blasting, bolting and anchor cable, etc.

The rig can be based on the needs of users, to provide truck-based,trailer-style, crawler three different forms. The drilling machine is powered by a diesel engine, and the rotary power head is composed of a low-speed and high-torque motor and a gear reducer, which is used to advance the motor chain mechanism. Rotary and propulsion are hydraulic pilot control to achieve stepless speed regulation, push forward used two-speed adjustment. Drilling machine unloading rod, drilling vehicle leveling, hoisting and other auxiliary actions are controlled by the hydraulic, rig layout reasonable, easy to operate and maintenance, Is the ideal drilling equipment.




Main features and advantages:


1. Hydraulic rotary head and break in-out clamp device, advanced motor- chain feeding system, and hydraulic winch are reasonable matched.

2. The rig can be either crawler, trailer or truck mounted.

3. This rig can be used by two drilling method in set covering layer and stratum soil condition.

4. Hydraulic system is equipped with separate air-cooled hydraulic oil cooler , also can install water cooler as client's optional in order to ensure hydraulic system work continuously and efficiently under the high temperature weather conditions in different regions.

5. Conveniently equipped with air compressor and DTH hammer, it can be used to drill the hole in rock soil condition by air drilling method.

6. Four hydraulic support jacks can level rapidly undercarriage to ensure the drilling accuracy. The support jack extension as optional can be easy to make the rig load and unload on truck as Self-loading by itself, which save more transportation cost.

7. Traveling to tracked self-propelled structure, optional 6*6 or 8*4 heavy truck to car type well driling.

8. Set covering layer, stratum two kinds of method in one construction dril.



Technical Parameter:


Item Unit SNR1600 SNR1600L SNR1600S
Max drilling depth m 1600 1600 1600
Drilling diameter mm 105-1000 105-1000 105-1000
Air pressure Mpa 1.65-8 1.65-8 1.65-8
Air consumption m3/min 16-120 16-120 16-120
Rod length m 4.5 6 6
Rod diameter mm 127 127 127
Main shaft pressure T 16 13 13
Lifting force T 81 81 81
Fast lifting speed m/min 23 23 23
Fast forwarding speed m/min 37 44 44
Max rotary torque N.m 24500 24500 24500
Max rotary speed r/min 90 90 90
Big secondary winch lifting force T 2.5/4(Optional) 2.5/4(Optional)
Small secondary winch lifting force T 1.5 1.5 1.5
Jacks stroke m 1.7 1.7 1.7
Drilling efficiency m/h 10-35 10-35 10-35
Moving speed Km/h 3 3 3
Uphill angle ° 21 21 21
Weight of the rig T 30 32 30
Dimension m 8.6*2.6*3.5 10*2.6*3.5 8.6*2.6*3.5
Working condition Unconsolidated formation and Bedrock
Drilling method Top drive hydraulic rotary and pushing, hammer or mud drilling
Suitable hammer Medium and high air pressure series
Optional accessories Mud pump, Gentrifugal pump, Generator, Foam pump

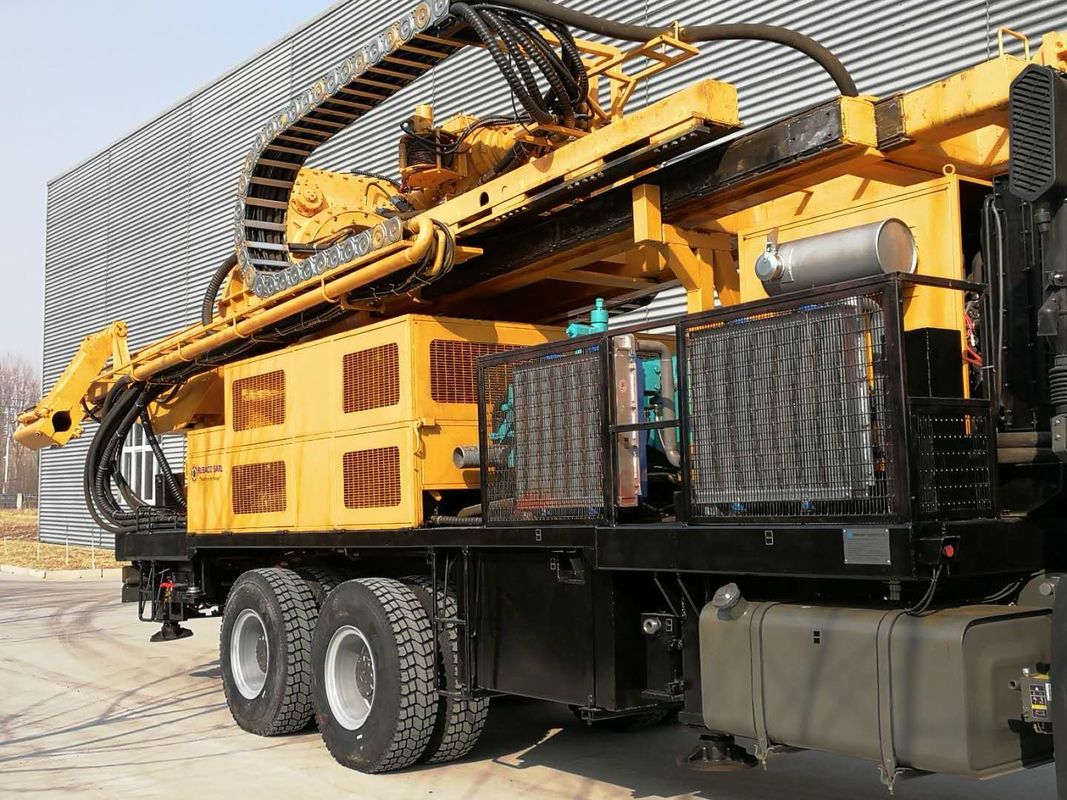

1000m Drilling Depth Hydraulic Waterwell Drilling Rig Mounted on truck or crawler 0

Rig operation by truck or trailer or crawler Mast extension Breakout cylinder Air compressor
Centrifugal pump Mud pump Water pump Foam pump
RC pump Screw pump Drill pipe box Pipe loader arm
Opening clamp Support jack extension



Warranty and Commissioning:

6 months from shipment.Warranty covers main parts and components.The warranty does not cover consumable and wearing parts as:oils,fuels,gaskets,lamps,ropes,fuses and drilling tools.By our engineer at your jobsite for max 7 days as required.Who will erect and commission the equipment together with your staff and train your staff in the operation and maintenance of the equipment Vise permits, accommodation and transport are to be provided by you.


As a long-established drilling rig manufacturer in China, we SINOVO group do business with reputation and word of mouth. We are dedicated to provide customers perfect service. To make customers feel secure in using our products,we establish a complete after-sales service system, and provide a one-year warranty for our drilling rigs. During the warranty period, we provide free debugging, operator training and maintenance service. In addition, we also offer free spare parts. As our main components are imported from world renowned companies, our overseas customers can maintain these components easily.
