Hydraulic Percussion Rotary Head Drilling Accessories

Basic Information
Place of Origin: China
Brand Name: SINOVO
Certification: CE/GOST/ISO9001
Model Number: SHB50A
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Exporting Standard
Delivery Time: 7-10 work days
Supply Ability: 30000 set per year
Detail Information
Product Name: Hydraulic Percussion Rotary Head Model: SHB50A
Length: Taper-length Usage: Drilling
Transport Package: Exporting Standard Weight: 858kg
High Light:

DTH Drilling Accessories


Hydraulic Percussion Rotary Head

Product Description

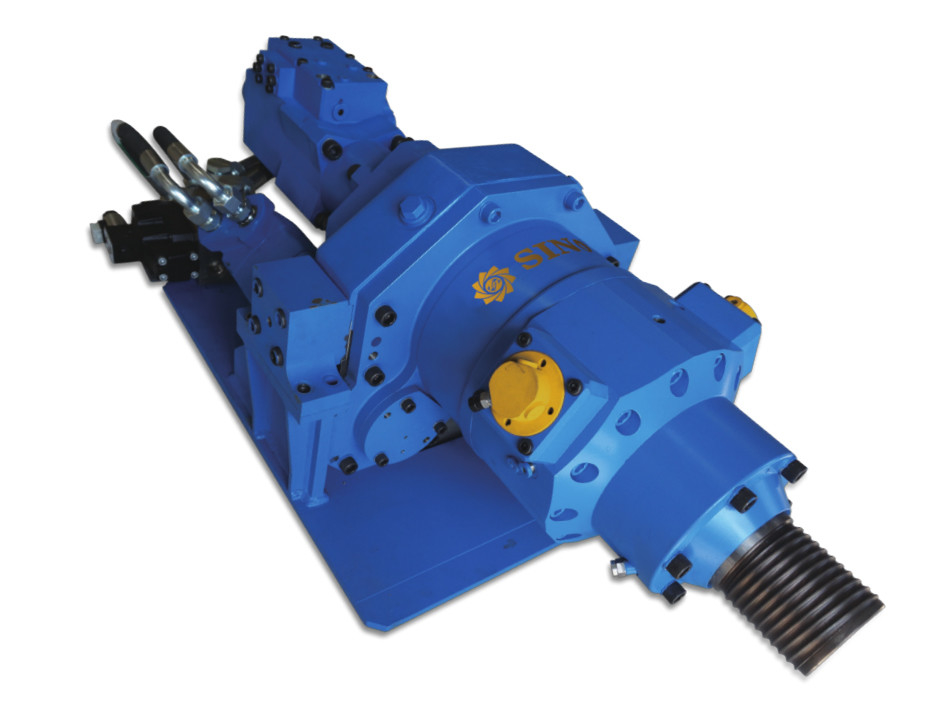

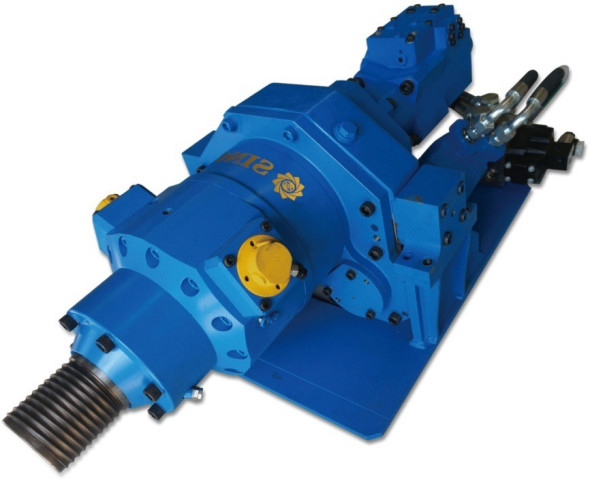

Hydraulic Percussion Rotary Head SHB50A Exporting Standard For Drilling


Basic Information:


SINOVO hydraulic percussion rotary head is an attached tool suitable for working with hydraulic drilling rigs.

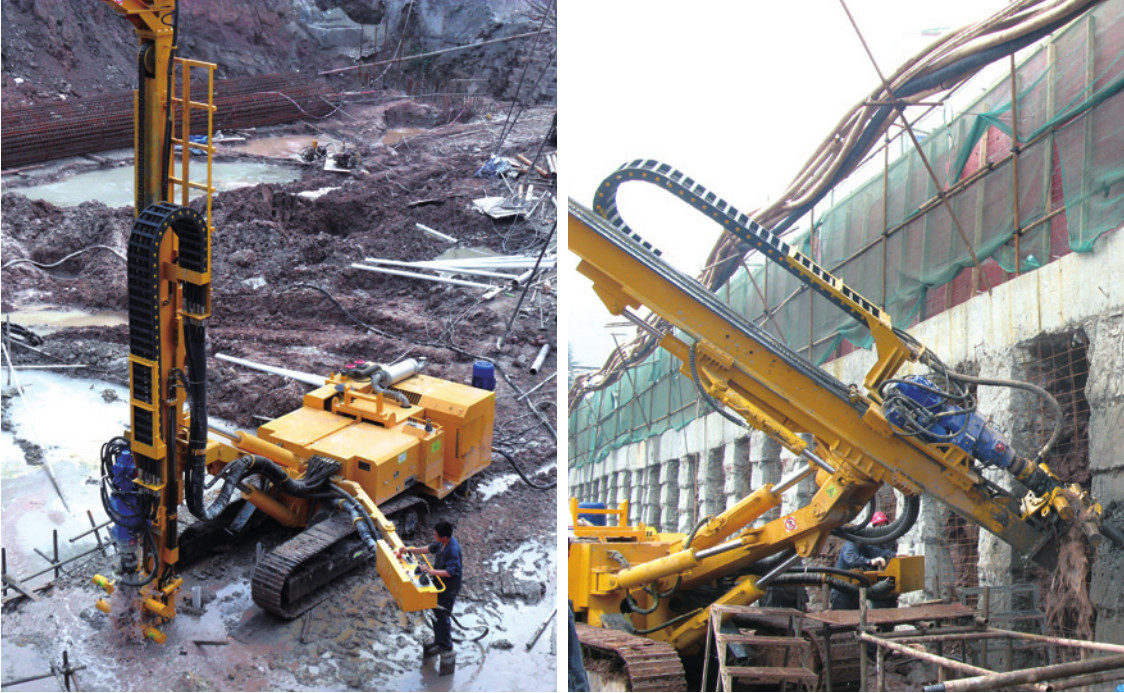

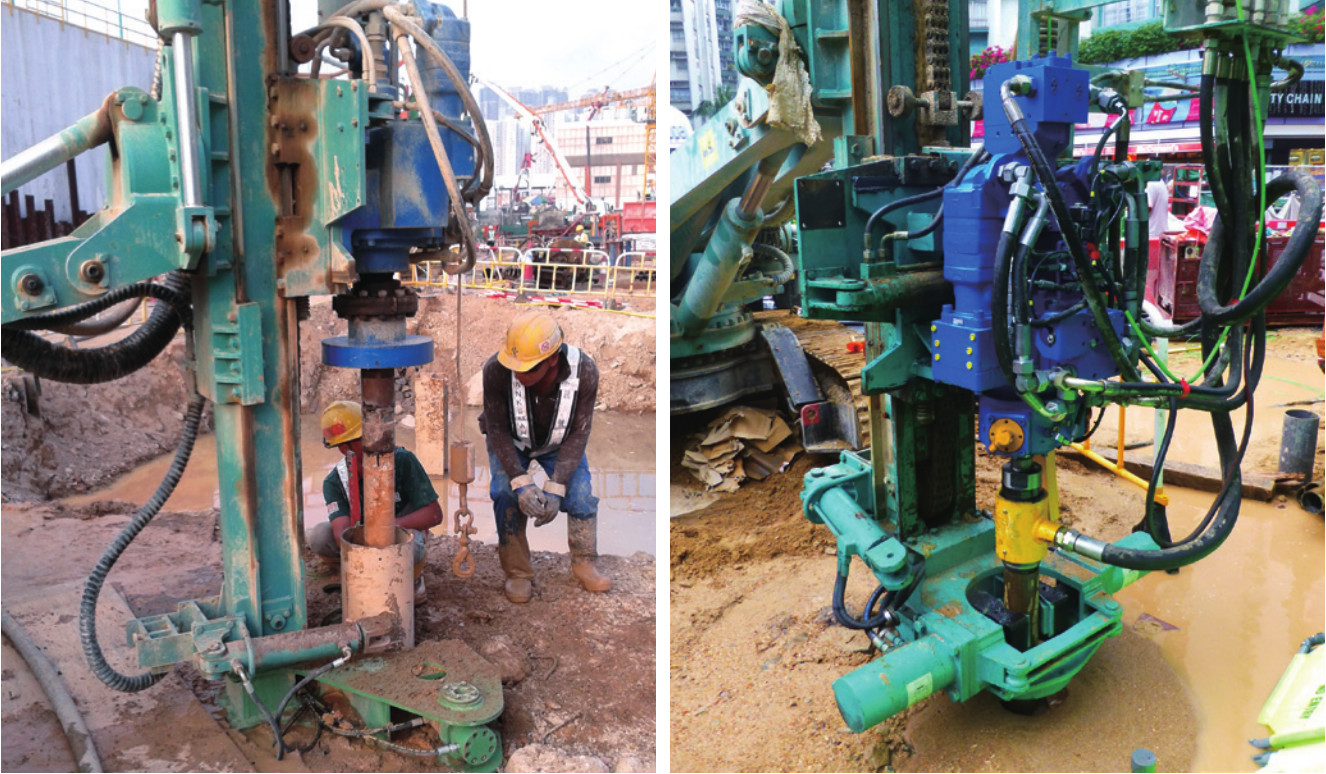

Applications: Rotary head in the special engineering projects. Driven by two motors, it can finish the drilling efficiently on all kinds of stratum. It can work with various of engineering driling rigs, such as for anchoring and anchor cable, micro pile, high pressure jet grouting, grouting, water well, geological disaster control, geothermal well, tunnel pipe roofing, tunnel grouting, tunnel rescue drilling and so on. It especially can be used with simultaneous casing drilling on complicated stratum where difficult to make piles such as the sandy cobble condition, crumbly strata condition. By reverse hitting, the drilling rod can be taken out quickly if the drilling bit stuck in during driling process.



Main Features:

1. Structural and compact design saves more space;
2. Antifriction buffer system makes sure the driling tools easy to disassembly in difficult working conditions; .
3. With optimizing pilot flow and actual assembly, the impact control is high efficient;
4. By controlling impact frequency and impact energy, it improves the drilling efficiency so that accommodates all working conditions;
5. Be able to work with all manufacturers' drilling rigs, can meet different drilling requirements.



Technical Specifications:


Percussion Mechanism


Working Pressure bar 170-200
Flow Rate l/min 90
Setting   l 0 ll
Percussion Rate r/min 1208 1901 2409
Percussion Capacity Nm 838 531 429


Rotary Mechanism



Single Speed

Double Speed
1335ccm 2475ccm



4950ccm 1335ccm 2475ccm 3670ccm 4950ccm
Working Pressure bar 205 205 205 190 205 205 205 190
Flow Rate l/min 170 170 170 170 130 170 170 170
Rotate Speed r/min 161 115 81 59 243 205 163 128
Torque Nm 6488 9175 12978 16892 6298 9105 12928 16806
Setting   2 2 2 2 3 3 3 3
