Hydraulic Water well Drilling Rig with Diesel Engine mounted on crawler, trailer or truck

Basic Information
Place of Origin: China
Brand Name: SINOVO
Certification: CE/GOST/ISO9001
Model Number: SNR1000CS
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Exporting Standard
Delivery Time: 7-10 work days
Supply Ability: 30 units per month
Detail Information
Model: SNR1000CS Motor: Diesel Engine
Diesel Engine Power: 239KW Rotate Speed: 2200RPN
Transport Package: Standard Packing Certification: CE, ISO 9001:2008, GOST
High Light:

2200RPN Waterwell Drilling Rig

,

239KW Waterwell Drilling Rig


Product Description



SNR1000CS Full Hydraulic Double Rotary Head Water Well Drilling Rig



Descriptions:



Full hydraulic double rotary head water well drilling rig, It can be drilled with DTH hammer, and can also be drilled with mud pump , casing rotator to meet different geological conditions. It is suitable for large diameter water wells, pile holes, mining rescue and other projects.

The rig can provide three different types of drilling rig, such as truck, trailer type and crawler type, according to the needs of the users. The drilling rig is powered by two diesel engines. The upper rotary power head is made up of high-speed motor and gearbox, and the bottom rotary head is made up of low speed, high torque hydraulic motor and gearbox. The propulsion system is fed by the oil cylinder. Rotating and feeding system are controlled by hydraulic pilot control which can achieve stepless speed regulation. Breaking out and in drill rod, leveling the whole machine, winch and other auxiliary actions are controlled by hydraulic system. The structure of rig is designed to reasonable, which is easy to operate and maintenance.


SNR1000CS full hydraulic double rotary head water well drilling rig, It can be drilled with DTH hammer, and can also be drilled with mud pump , casing rotator to meet different geological conditions. It is suitable for large diameter water wells, pile holes, mining rescue and other projects. The rig can provide three different types of drilling rig, such as truck, trailer type and crawler type, according to the needs of the users. The drilling rig is powered by two diesel engines. The upper rotary power head is made up of high-speed motor and gearbox, and the bottom rotary head is made up of low speed, high torque hydraulic motor and gearbox. The propulsion system is fed by the oil cylinder. Rotating and feeding system are controlled by hydraulic pilot control which can achieve stepless speed regulation. Breaking out and in drill rod, leveling the whole machine, winch and other auxiliary actions
are controlled by hydraulic system. The structure of rig is designed to reasonable, which is easy to operate and maintenance.



SNR1000CS Technical Parameters:


Drill model SNR1000CS
Diesel engine   Model Cummins 6LTA8.9-C325
KW Power 239
rpm Rotate speed 2200
Rotary head rpm Rotate speed 0-150
N.m Max. torque 32000
KN Max. pullback force 500
KN Max. feed force 500
Mast m   14.5
  Angle 0︒-90︒
m Stroke 10.5
Rod mm Diameter 89/114/127/159
RC (reverse circulation) drilling mm Max. diameter 1500
m Depth 200
Rock with water and air composite DTH mm Max. diameter 600
m Depth 600
m³/Kg Air consumption 31/24
New DTH mm Max. diameter 300
m Depth 1500(1000)
m³/Kg Air consumption 31/24
Traditional DTH mm Max. diameter 300
m Depth 120
m³/Kg Air consumption 31/24
RC pump   Model 6,7
Mud pump   Model BW1200/14
Winch KN Lifting force 15+50+100
Transport dimension Kg Weight 25000
LxWxH mm Overall dimensions 14500x2650x3800

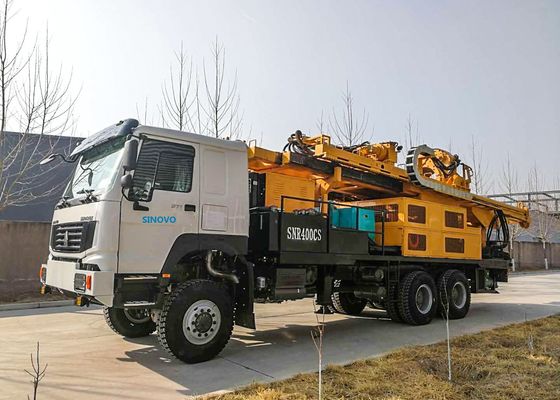

Hydraulic Water well Drilling Rig with Diesel Engine mounted on crawler, trailer or truck 0



Any further information about the specification, after sale service, price, etc, please feel free to contact with us.
