60m Depth Hydraulic Underground Diaphragm Wall Grab

Basic Information
Place of Origin: China
Brand Name: SINOVO
Model Number: TG35
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: International Export Carton Case Package
Delivery Time: 7-10 work days
Payment Terms: L/C, D/A
Supply Ability: 30 set per month
Detail Information
Certification: CE / Gost / ISO9001 Name: Hydraulic Underground Diaphragm Wall Grab
Width Of Trench: 600-1200mm Depth Of Trench: 60m
Max. Pull Force: 350KN Engine Power: 213KW
Extendable Undercarriage (mm): 800mm Track Shoe Width: 3000-4300mm
High Light:

60m Diaphragm Wall Grab


Underground Diaphragm Wall Grab


hydraulic diaphragm wall grab

Product Description

60m Depth CAT Undercarriage Hydraulic Underground Diaphragm Wall Grab

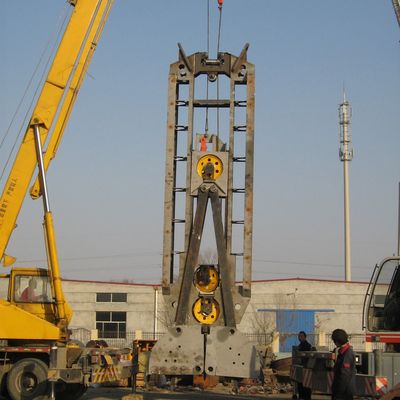

SINOVO Hydraulic Underground Diaphragm Wall Grab use a dedicated groove (hole) device, along a predetermined deep base position or around the original underground structure, digging a certain width and depth groove (hole), then set the reinforcement cage in the groove (hole), pouring concrete, building a wall (pile), connect into a continuous underground reinforced concrete wall in a joint way. Underground diaphragm wall have widely use, mainly used in the basement of buildings, subways, tunnels, docks, water cut walls, retaining walls, etc.

The specific extra-wide chassis, having large swiveling bearing, provides super stability.

Double winch and single row rope construction extend the life-span of the steel rope, reduce the construction cost .The control system equipped with an encoder ensures the accurate synchronization of double winches reduces the frequency of synchronized adjustment and increases the construction efficiency.Equipped with advanced inclinometer, which can provide the grab adjustment and fall down protection function, it can record and memory the locus grab, and draw the wall curve. This can effectively guarantee the wall precision.

With the load-sensing control, the hydraulic system can effectively increase the utilization rate of system resources and also the construction efficiency.



Technical Parameter


  Euro Standards U.S Standards
Width of trench 600-1200mm 24-47in
Depth of trench 60m 197ft
Max. pull force 350kN 78683 lbf
Volume of grab bucker 0.8-1.5 m³ 0.8-1.5m³
Undercarriage Model CAT330D CAT330D
Engine power 213kW 286HP
Pull force of main winch (The first layer) 180kN 40466lbf
Extendable undercarriage (mm) 800mm 32 in
Track shoe width 3000-4300mm 118-170in
System Pressure 35Mpa 5076psi




Q1: Are you factory or trade company?
A1: We are factory. And we have ourselves trading company.
Q2: Which trade term can you accept?
A2: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.
Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.


60m Depth Hydraulic Underground Diaphragm Wall Grab 0


Any further information about the specification, after sale service, price,etc, please feel free to contact with us.
