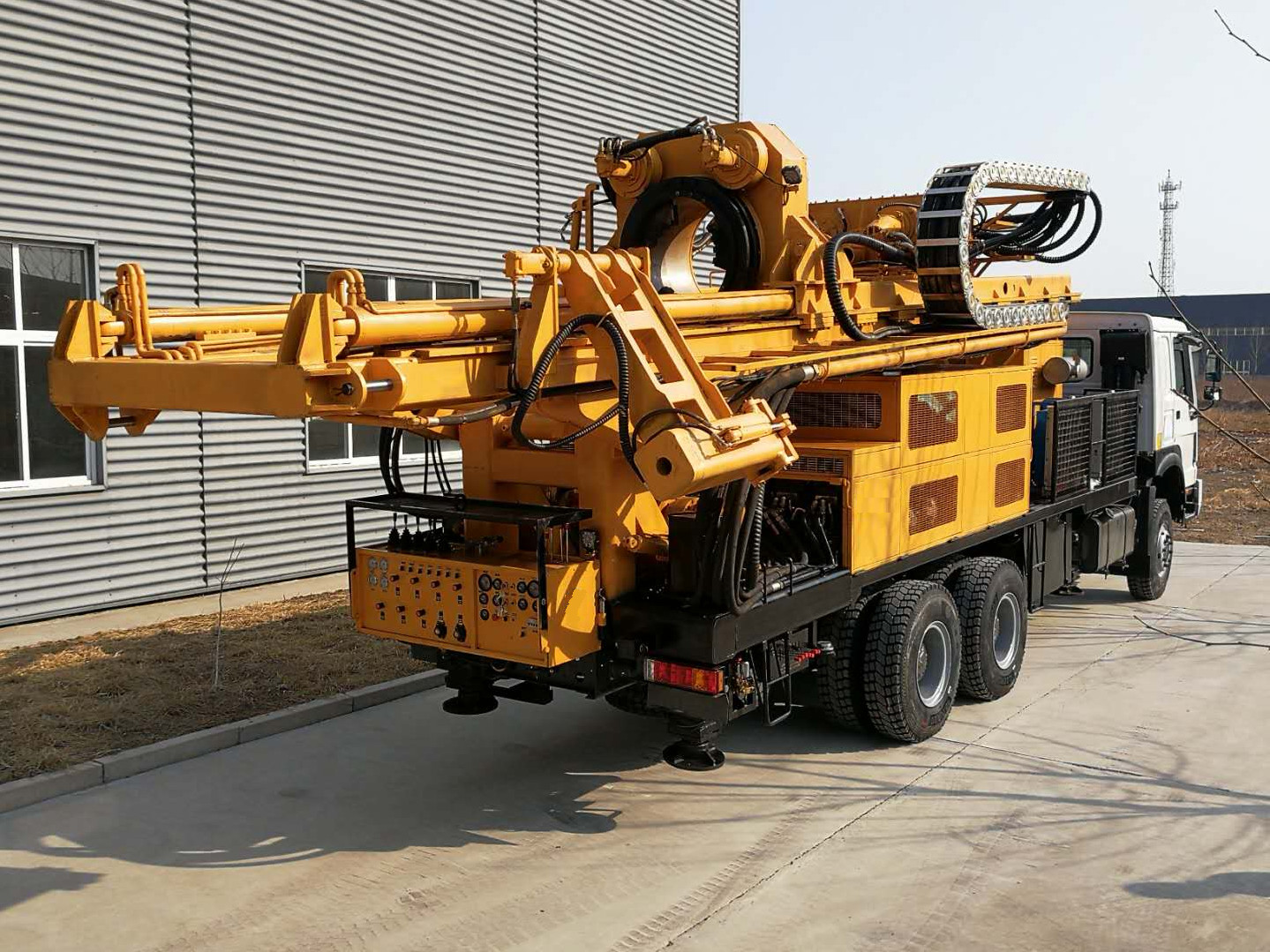

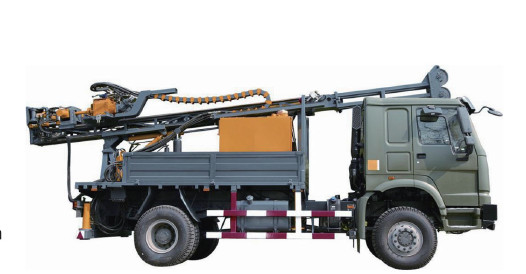

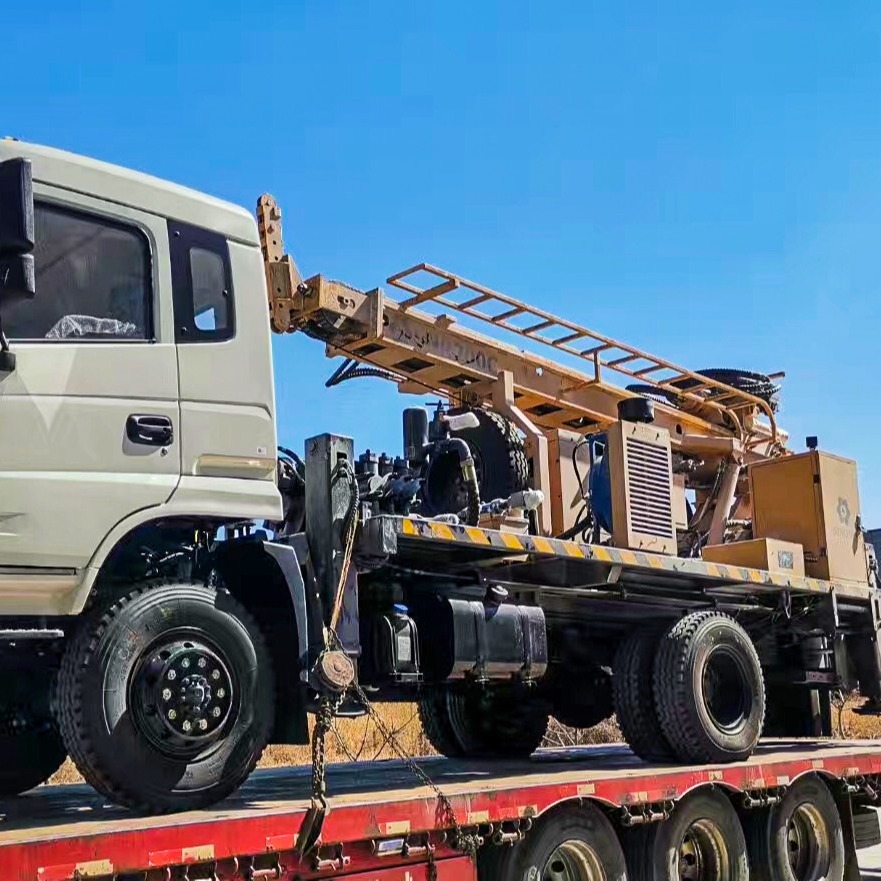

Portable Hydraulic 1500m Deep Truck Mounted Drill Rig Water Well Drilling Rig

Basic Information
Place of Origin: CHINA
Brand Name: SINOVO
Model Number: SNR1000CS
Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: International standard packaging
Delivery Time: 7-10 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 30 pers month
Detail Information
Certification: CE/GOST/ISO9001 Name: Portable Hydraulic Trailer Truck 1000m Deep Water Well Drilling Machine
Model: SNR1000CS Diesel Engine: 239KW
Type: Weter Well Drilling Rig New DTH Max Diameter: 300mm
New DTH Depth: 1500m Transport Dimension: 14500x2650x3800mm
High Light:

1500m trailer mounted drill rig


portable trailer mounted drill rig


hydraulic trailer mounted drill rig

Product Description


Portable Hydraulic Trailer Truck 1500m Deep Water Well Drilling Machine


SNR1000CS full hydraulic double rotary head water well drilling rig, It can be drilled with DTH hammer, and can also be drilled with mud pump , casing rotator to meet different geological conditions. It is suitable for large diameter water wells, pile holes, mining rescue and other projects.
The rig can provide three different types of drilling rig, such as truck, trailer type and crawler type, according to the needs of the users.
The drilling rig is powered by two diesel engines. The upper rotary power head is made up of high-speed motor and gearbox, and the bottom rotary head is made up of low speed, high torque hydraulic motor and gearbox. The propulsion system is fed by the oil cylinder. Rotating and feeding system are controlled by hydraulic pilot control which can achieve stepless speed regulation. Breaking out and in drill rod, leveling the whole machine, winch and other auxiliary actions are controlled by hydraulic system.



Technical Parameters


Drill model SNR1000CS
Diesel engine   Model Cummins 6LTA8.9-C325
KW Power 239
rpm Rotate speed 2200
Rotary head rpm Rotate speed 0-150
N.m Max. torque 32000
KN Max. pullback force 500
KN Max. feed force 500
Mast m Height 14.5
  Angle 0︒-90︒
m Stroke 10.5
Rod mm Diameter 89/114/127/159
RC (reverse circulation) drilling mm Max. diameter 1500
m Depth 200
Rock with water and air composite DTH mm Max. diameter 600
m Depth 600
m³/Kg Air consumption 31/24
New DTH mm Max. diameter 300
m Depth 1500(1000)
m³/Kg Air consumption 31/24
Traditional DTH mm Max. diameter 300
m Depth 120
m³/Kg Air consumption 31/24
RC pump   Model 6,7
Mud pump   Model BW1200/14
Winch KN Lifting force 15+50+100
Transport dimension Kg Weight 25000
LxWxH mm Overall dimensions 14500x2650x3800


Rig operation by truck or trailer or crawler Mast extension Breakout cylinder Air compressor
Centrifugal pump Mud pump Water pump Foam pump
RC pump Screw pump Drill pipe box Pipe loader arm
Opening clamp Support jack extension





1. About Price: The price is negotiable. It can be changed according to your quantity When you are making an inquiry, please let us know the quantity you want.

2. About MOQ: If the drilling rigs, the MOQ is 1 set; If the drilling tools ( DTH hammers & bits ) , the MOQ is 10 pcs;

3. About OEM and ODM: Welcome, you can send your own design of product and LOGO to our company.


Packaging & Delivery

Selling Units:
Single item
Single package size:
514500x2650x3800 mm
Single gross weight:
25000 kg
Package Type:
Portable Hydraulic Trailer Truck 1500m Deep Water Well Drilling Machine
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 7 To be negotiated
