| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SINOVO |
| Certification: | CE/GOST/ISO9001 |
| Model Number: | SNR800CS |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotiation |
| Packaging Details: | International standard packaging |
| Delivery Time: | 7-10 days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 30 units per month |
| Name: | Air DTH Water Well Bore Hole Drilling Rig | Model: | SNR800CS |
|---|---|---|---|
| Certification: | CE/GOST/ISO9001 | Max Rotary Torque: | 32000N.m |
| Type: | Weter Well Drilling Rig | Max Rotary Speed: | 150rpm |
| Working Condition: | Unconsolidated Formation And Bedrock | Transport Dimension: | 9200x2250x3200mm |
| Highlight: | 800m Depth waterwell drilling rig,SNR800CS waterwell drilling rig,150rpm Waterwell Drilling Rig |
||

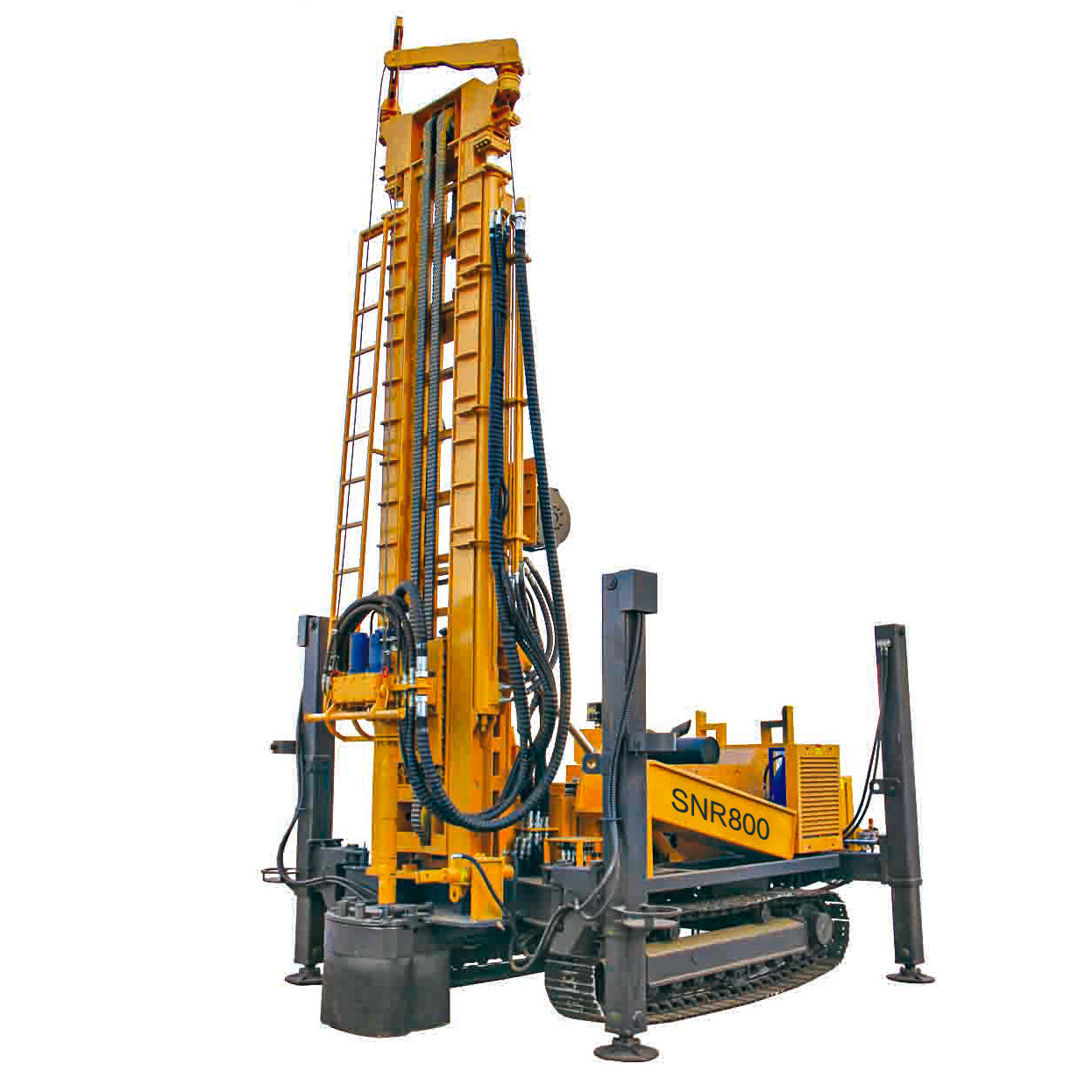

800m Depth Rock Drilling Machine Air DTH Water Well Bore Hole Drilling Rig
SNR800CS full hydraulic double rotary head water well drilling rig, It can be drilled with DTH hammer, and can also be drilled with mud pump , casing rotator to meet different geological conditions. It is suitable for large diameter water wells, pile holes, mining rescue and other projects.
The rig can provide three different types of drilling rig, such as truck, trailer type and crawler type, according to the needs of the users. The drilling rig is powered by two diesel engines. The upper rotary power head is made up of high-speed motor and gearbox, and the bottom rotary head is made up of low speed, high torque hydraulic motor and gearbox. The propulsion system is fed by the oil cylinder. Rotating and feeding system are controlled by hydraulic pilot control which can achieve stepless speed regulation. Breaking out and in drill rod, leveling the whole machine, winch and other auxiliary actions are controlled by hydraulic system. The structure of rig is designed to reasonable, which is easy to operate and maintenance.
Features:
1.High drilling efficiency, power provided by 239KW diesel engine
2.High efficiency,120m depth per hour, large rotary torque
3.Integrated automation equipment,All terrain moves by itself
4.Adopt consummate design, long service life
5.Drill different terrain ground ,soil ,sand and rock.
Technical Parameters
| Drill model | SNR800CS | ||
| Diesel engine | Model Cummins | 6LTA8.9-C325 | |
| KW | Power | 239 | |
| rpm | Rotate speed | 2200 | |
| Rotary head | rpm | Rotate speed | 0-150 |
| N.m | Max. torque | 32000 | |
| KN | Max. pullback force | 450 | |
| KN | Max. feed force | 450 | |
| Mast | m | Height | 14.5 |
| Angle | 0︒-90︒ | ||
| m | Stroke | 10.5 | |
| Rod | mm | Diameter | 89/114/127/159 |
| RC (reverse circulation) drilling | mm | Max. diameter | 1500 |
| m | Depth | 200 | |
| Rock with water and air composite DTH | mm | Max. diameter | 600 |
| m | Depth | 300 | |
| m³/Kg | Air consumption | 31/24 | |
| New DTH | mm | Max. diameter | 300 |
| m | Depth | 800 | |
| m³/Kg | Air consumption | 31/24 | |
| Traditional DTH | mm | Max. diameter | 300 |
| m | Depth | 120 | |
| m³/Kg | Air consumption | 31/24 | |
| RC pump | Model | 6,7,8 | |
| Mud pump | Model | BW1000/14 | |
| Winch | KN | Lifting force | 15+50 |
| Transport dimension | Kg | Weight | 14000 |
| LxWxH mm | Overall dimensions | 9200x2250x3200 | |
| Optional | |||
| Rig operation by truck or trailer or crawler | Mast extension | Breakout cylinder | Air compressor |
| Centrifugal pump | Mud pump | Water pump | Foam pump |
| RC pump | Screw pump | Drill pipe box | Pipe loader arm |
| Opening clamp | Support jack extension | ||
FAQ:
1. About Price: The price is negotiable. It can be changed according to your quantity When you are making an inquiry, please let us know the quantity you want.
2. About MOQ: If the drilling rigs, the MOQ is 1 set; If the drilling tools ( DTH hammers & bits ) , the MOQ is 10 pcs;
3. About OEM and ODM: Welcome, you can send your own design of product and LOGO to our company.
Packaging & Delivery
| Quantity(Sets) | 1 - 1 | >1 |
| Est. Time(days) | 7 | To be negotiated |
