| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SINOVO |
| Model Number: | CFA Concrete Grouting Machine Tool |
| Minimum Order Quantity: | 1 piece |
| Price: | Negotiation |
| Packaging Details: | International standard packaging |
| Delivery Time: | 7-10 days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 30000 per year |
| Certification: | CE/GOST/ISO9001 | Name: | CFA Concrete Grouting Machine Tool |
|---|---|---|---|
| Type: | CFA Concrete Grouting Machine Tool | Diameter: | 408-1058mm |
| Height: | 950-1250mm | Weight: | 70-207kg |
| Length: | 1.5/3.0m | Conduit Length: | 1000-6000mm |
| High Light: | CFA Drilling Accessories,408mm Diameter Drilling Accessories,950mm Height Drilling Accessories |
||
408mm Diameter 950mm Height CFA Concrete Grouting Machine Tool
We can design and manufacture drilling rigs and piling machine according to customers requirements.

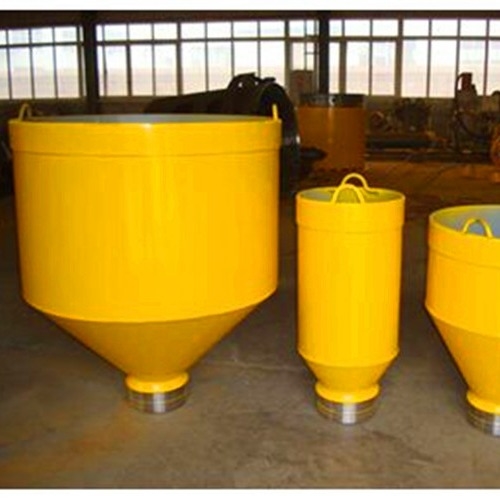

1. Hopper for Concrete Pipe
| Hopper | ||
| Diameter(mm) | Height(mm) | Weight(kg) |
| 408 | 950 | 70 |
| 508 | 850 | 75 |
| 658 | 870 | 91 |
| 758 | 970 | 123 |
| 1058 | 1250 | 207 |
| Conduit | |
| Length(mm) | Weight(kg) |
| 1000 | 49 |
| 2000 | 86 |
| 3000 | 123 |
| 4000 | 160 |
| 5000 | 197 |
| 6000 | 234 |
| Hopper 2 | |||
| D | H | KG | m3 |
| 1500 | 1270 | 179 | 1 |
| 1500 | 1670 | 235 | 1.5 |
| 1860 | 1520 | 263 | 2 |
| 2000 | 1350 | 288 | 3 |
| Conduit 2 | |||
| L1 | KG | L2 | KG |
| 500 | 42 | 3900 | 134 |
| 1000 | 54 | ||
| 1500 | 70 | ||
| 2000 | 85 | ||
| 3000 | 112 | ||

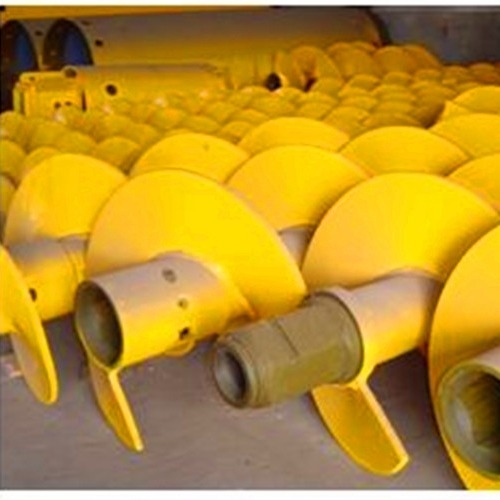

2. Long Drilling Auger
| D | P | δ | L(m) | Kg |
| 400 | 340 | 16 | 2 | 283 |
| 3 | 386 | |||
| 4 | 489 | |||
| 5 | 592 | |||
| 6 | 695 | |||
| 500 | 400 | 16 | 2 | 465 |
| 3 | 638 | |||
| 4 | 811 | |||
| 5 | 983 | |||
| 6 | 1156 | |||
| 600 | 500 | 20 | 2 | 526 |
| 3 | 730 | |||
| 4 | 933 | |||
| 5 | 1137 | |||
| 6 | 1340 | |||
| 800 | 500 | 20 | 2 | 671 |
| 3 | 948 | |||
| 4 | 1223 | |||
| 5 | 1499 | |||
| 6 | 1775 | |||
| 1000 | 500 | 20 | 2 | 865 |
| 3 | 1225 | |||
| 4 | 1592 | |||
| 5 | 1961 | |||
| 6 | 2329 |

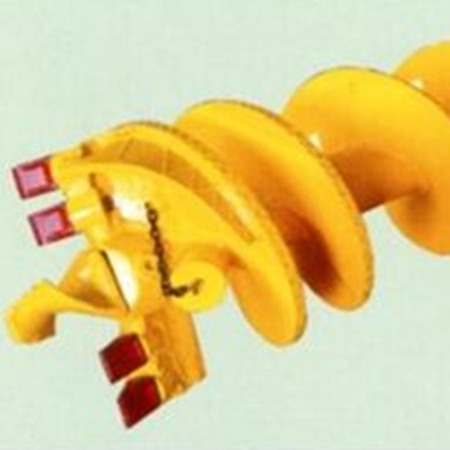

3. Continuous Flight Auger
| φ | P | δ1 | δ2 | KG |
| 400 | 340 | 30 | 16 | 254 |
| 500 | 400 | 30 | 16 | 386 |
| 600 | 500 | 40 | 20 | 449 |
| 800 | 500 | 40 | 20 | 603 |
| 1000 | 500 | 40 | 20 | 797 |
Any further information about the specification, after sale service, price,etc, please feel free to contact with us.
