TG35 Crawler Mounted Hydraulic Underground Rotary Drilling Diaphragm Wall Grab

Basic Information
Place of Origin: China
Brand Name: SINOVO
Certification: CE/GOST/ISO9001
Model Number: TG35
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: International Export Carton Case Package
Delivery Time: 7-10 work days
Payment Terms: L/C, D/A
Supply Ability: 30 set per month
Detail Information
Name: Diaphragm Wall Equipment Model: TG35
Certification: CE/GOST/ISO9001 Power Type: Diesel
Depth Of Trench: 60m Width Of Trench: 600-1200mm
Max. Pull Force: 350Kn Track Shoe Width: 3000-4300mm
High Light:

Crawler Mount Diaphragm Wall Grab

,

Hydraulic Diaphragm Wall Grab

,

Underground Diaphragm Wall Grab


Product Description

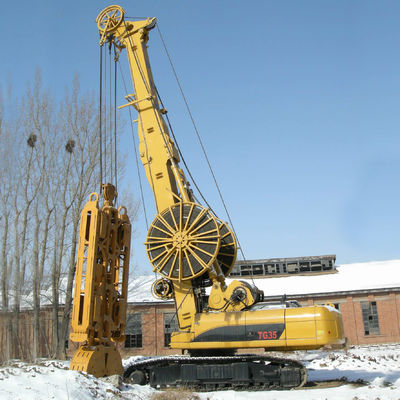

TG35 Crawler Mounted Hydraulic Hydraulic Underground Rotary Drilling Diaphragm Wall Grab



Diaphragm walls are underground structural elements principally used for retention systems and permanent foundation walls. Our TG series hydraulic diaphragm wall grabs are ideal forpit strutting, dam anti-seepage, excavation support, dock cofferdam and foundation element, and are also suitable for the construction of square piles. It is one of the most efficient and versatile construction machines on the market .

TG 35 Diaphragm Wall Grab Equipment are designed with innovative push-plate alignment system having greater structural superiority as compared with other brands, the homing of grab are easier and faster. With 1-cylinder connecting rod (push plate mechanism) and 2-cylinder connecting rod (4-rod mechanism) zero adjuster, the arm can be calibrated at any time in progress.



TG Summary
TG Wall thickness
-mm-
Wall depth
-m-
Engine Power
-kw-
TG26 300-800mm(12-31in) 50m(164ft) 187KW(251HP)
TG35 600-1000mm(24-39in) 60m(197ft) 213KW(286HP)
TG40 600-1200mm(24-47in) 70m(230ft) 261KW(350HP)
TG42 600-1500mm(24-59in) 80m(262ft) 261KW(350HP)
TG50 800-1500mm(31-59in) 80m(262ft) 261KW(350HP)





Technical parameters



  Euro Standards U.S Standards
Width of trench 600-1200mm 24-47in
Depth of trench 70m 230ft
Max. pull force 400kN 89924 lbf
Volume of grab bucker 0.8-1.7 m³ 0.8-1.7 m³
Undercarriage Model CAT336D CAT336D
Engine power 261kW 350hp
Pull force of main winch (The first layer) 200kN 44962lbf
Extendable undercarriage (mm) 800mm 32 in
Track shoe width 3000-4300mm 118-170in
System Pressure 35Mpa 5076psi





Performance



1. Engine power is 261kw, meeting Euro III emission sandard, high power and high durability. Provide stable and reliable power for diaphragm wall grab.
2. Energy saving and consumption reduction: variable weight frame configuration, weight range 18-25T.
3. The upper chassis has a reinforced structure design, and the thickness of the bottom plate is 60mm,which is special for heavy type frame.
4. Center installed winch design, with a compact and reasonable structure, easy maintainence.

5.Adopts full hydraulic pressure control mode,the system is stable, high reliability.
6.The push board type grab has advanced vertical adjustment system and simple structure (framework).

7. Simply operated with less staff, reduce the construction cost.

8. Low noise operation.

9. Excellent design brings customers optimal benefits.



Packaging & Delivery
Packaging Details
Nude Packing or by Container.
Port
Tianjin/Shanghai
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 30 To be negotiated





FAQ


Q1: Do you have testing facilities?
A1: Yes, our factory has all kinds of testing facilities, and we can send their pictures and test documents to you.
Q2: Will you arrange installation and training?
A2: Yes, our professional engineers will guide on installation and commissioning at site and provide technical training as well.

Q3:Which payment terms can you accept?
A3: Normally we can work on T/T term or L/C term, sometime DP term.
(1) On T/T term. 30% down paymentis required in advance, and 70% balance shallbe se tee before shipment. or against the copy of original B/L for long term cooperating client.
(2) On L/C term, a 100% irevocable L/C without "soft clauses" from an international recognized bank can be accepted. Please seek the advice from the individual sales manager whom you work with.
Q4: What logistics ways you can work for shipment?
A4: We can ship construction machinery by vanious transportation tools.
(1) For 80% of our shipment, the machine will go by sea, to all main continents such as Africa, South America, Middle East,
Oceania and Southeast Asia etc, either by container or RoRo/Bulk shipment.
(2) For inland neighborhood counties of China, such as Russia, Mongolia Turkmenistan etc., we can send machines by road or railway.
(3) For light spare parts in urgent demand, we can send it by intemational courier service, such as DHL, TNT, or Fedex.
