| Place of Origin: | China |
|---|---|
| Brand Name: | SINOVO |
| Certification: | CE/GOST/ISO9001 |
| Model Number: | ST600 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | International Export Carton Case Package |
| Delivery Time: | 7-10 work days |
| Payment Terms: | T/T&L/C |
| Supply Ability: | 30000 Units Per Year |
| Name: | ST-600 Mobile Crawler Type Geological Drilling Rig | Drilling Depth: | 600m |
|---|---|---|---|
| Drilling Diameter: | 75mm | Drilling Angle: | 0-90° |
| Rig Weight: | 12000kg | Power Unit: | Diesel Engine |
| Power: | 105KW/2200rpm | Pressure: | 2.5,4.5,6.0,6.0Mpa |
| High Light: | crawler type geological drilling rig,600m geological drilling rig,600m geological drilling machine |
||

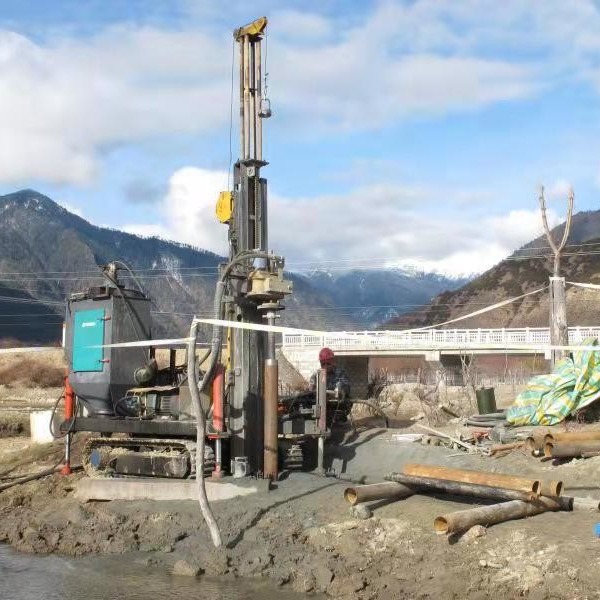

ST-600 Mobile Crawler Type Geological Drilling Rig
Our ST-600 mobile crawler type geological drilling rig is a hydraulic rotary head mobile geo rig. Its mobility and light weight makes this rig convenient to transport and store. Our drilling rig is available in various specifications to suit your varying requirements.
ST-600 mobile crawler type geological drilling rig is a kind of full hydraulic driving drilling equipment installed on the chassis of diesel truck.It is increasingly used for diamond bit drilling and carbide bit drilling of solid bed, and also used in exploring drilling and base or pile hole drilling and the small water well drilling.
Sinovo is a ISO9001;2000 certified manufacturer of mobile drilling rigs.Our primary products include piling rigs, desanders, and hydraulic crawler drills etc.Due to their high performance, great stability and long service life, our products are CE certified. Located om Beijing, we enjoy convenience transportation, so it is easy for customers to ship their products, at lower costs.We welcome you to contact us! Thank you!
Applications of ST-600 mobile crawler type geological drilling rig:
-Exploration in shallow holes of mine and seismic exploration drilling.
-In liquids and natural gas holes drilling.
-Construction shot drilling.
-Geological exploration and shallow water well drilling.
Characteristic
1. ST-600 mobile crawler type geological drilling rig adopts automatic telescopic drilling tower, which is supported by two oil cylinders and controlled by a group of hydraulic valves. The operation is time-saving and labor-saving, safe and reliable, and creates benefits for users.
2. The chassis adopts rubber track, which has light weight and low life cycle cost. It can reduce the noise of vehicle running mechanism, reduce the vibration of vehicle body, greatly reduce fuel consumption, and can walk on urban roads without damaging the road surface.
3. The chassis is equipped with four threaded legs (or hydraulic high legs) for quick and convenient installation and adjustment. It can be used for work plane leveling, loading and unloading vehicles to reduce hoisting cost and improve efficiency. It can be used as auxiliary support when working.
Technical Parameters
ST-600 mobile crawler type geological drilling rig
| Technical Parameters | ||||
| EURO standards | U.S.standards | |||
| Power (diesel engine ) | 105KW/2200rpm | 141hp/2200rpm | ||
| Drilling capacity | Hole Φ75mm | 600m | Hole Φ3inch | 1968feet |
| Hole Φ220mm | 450m | Hole Φ8.7inch | 1476feet | |
| Hole Φ300mm | 300m | Hole Φ11.8inch | 984feet | |
| Rotary head | ||||
| Rotation speeds | 71-693 rpm | 71-693 rpm | ||
| Max torque | 735-4700N.M | 524-3467lbf.ft | ||
| Hydraulic driving head feeding distance | 4200mm | 165inch | ||
| Hydraulic driving head feeding system | ||||
| Lifting force | 60KN | 13489lbf | ||
| Feeding force | 43KN | 9667lbf | ||
| Mast displacement system | ||||
| Distance | 1000mm | 39inch | ||
| Lifting force | 80KN | 17985lbf | ||
| Feeding force | 54KN | 12140lbf | ||
| Clamp machine system | ||||
| Diameter | 50-220mm | 2-8.7inch | ||
| Unscrews machine system | ||||
| Torque | 6000N.m | 4425lbf.ft | ||
| Winch | ||||
| Single rope force | 30KN | 6744lbf | ||
| Mud pump | ||||
| Diatance | 100mm | 3.9inch | ||
| Volume | 250,145,90,52 L/min | 55,32,20,11UK gallon/min | ||
| Pressure | 2.5,4.5,6.0,6.0Mpa | 363,653,870,870psi | ||
| Total weight | 12000kg | 26455lb | ||
