| Name: | XY-200B 200m Depth Spindle Type Geological Drilling Rig | Max Drilling Depth: | 200m |
|---|---|---|---|
| Drilling Diameter: | 75mm | Drilling Angle: | 0-90° |
| Diameter Of Kelly Bar: | 50mm | Spindle Stroke: | 450mm |
| Power: | ZS1115M | Mud Pump Pressure: | 0.7Mpa |
| High Light: | spindle geological drilling rig,200m depth geological drilling rig,0.7Mpa geological drilling rig |
||

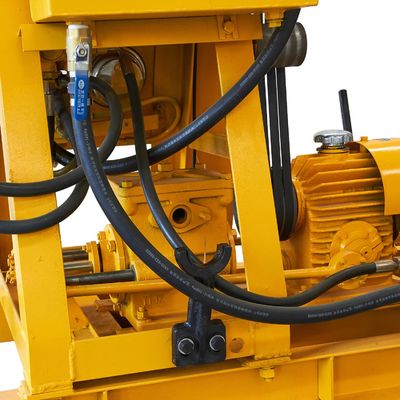

XY-200B 200m Depth Spindle Type Geological Drilling Rig
XY-200B 200m depth spindle type geological drilling rig is light type drilling rig with large torque and feed by oil pressure, which was developed on the basis of XY-1B, and also have the function of reverse rotation of the gear. User can choose the machine by considering if the drilling rig equip the mud pump or mounted on skid.
1. Application Range
(1) Railway, Water & Electricity, transportation, bridge, dam foundation and other buildings for engineering geological exploration .
(2) Geological core drilling, Physical exploration.
(3) Drilling for small grout hole and blast hole.
(4) Small well drilling
2. Main Features
(1) Oil pressure feeding, improving drilling efficiency, reducing the labor intensity.
(2) The machine have top ball clamping structure and hexagonal kelly bar, can realize the Non-stop recheck. High working efficiency, easy operation , safe and reliable.
(3) Equipped with a pressure gauge at the bottom of hole, it is convenient to know the situation in the hole.
(4) The handles collect, the machine is easy to operation.
(5)Drilling rig structure is compact, small volume, light weight , easy to disassemble and moving .it is suitable to work on the plain and mountain area .
(6) Spindle is eight side structure, expand diameter of spindle , which can enter into Kelly bar with large diameter and suitable to transmit with large torque.
(7) Diesel engine adopts electric start.
3. Technical Specifications
| Fundamental parameters |
Drilling depth | Φ75mm | 200m |
| Φ91mm | 150m | ||
| Φ150mm | 100m | ||
| Φ200mm | 50m | ||
| Diameter of Kelly bar | 50mm | ||
| Angle of drilling hole | 0°-90° | ||
| Rotating device | Rotate speed of spindle | Positive rotating | 71,142,310,620 |
| Reverse rotating | 71,142,310,620 | ||
| Spindle stroke | 450mm | ||
| Lifting capacity of spindle | 25KN | ||
| Feeding capacity of spindle | 15KN | ||
| Max. working torque | 1600Nm | ||
| Max. upward moving speed without loading | 0.05m/s | ||
| Max. downward moving speed without loading | 0.067m/s | ||
| Winch | Rotate speed of drum | 16,32,70,140r/min | |
| Lifting speed(2nd layer) | 0.17,0.34,0.73,1.46m/s | ||
| Maximum lifting capacity (single rope ) | 20KN | ||
| Rope diameter | 11mm | ||
| Drum diameter | 165mm | ||
| Brake wheel diameter | 280mm | ||
| Brake belt diameter | 55mm | ||
| Skid device of drilling rig |
Skid stroke | 400mm | |
| Distance of leaving hole | 250m | ||
| Oil pump | Model No. | YBC-12/80 | |
| Rated discharge capacity | 12L/min | ||
| Rated pressure | 8MPa | ||
| Rated rotating speed | 1500r/min | ||
| Power | Diesel engine model | ZS1115M | |
| Rated power | 16.2KW | ||
| Rated rotating speed | 2200r/min | ||
| Mud pump | Max. discharge capacity | 95L/min | |
| Max. allowed pressure | 1.2Mpa | ||
| Working pressure | 0.7Mpa | ||
| Number of stroke(numbers/min) | 120 | ||
| Cylinder liner diameter | 80mm | ||
| Piston stroke | 100mm | ||
If user choose drilling rig without mud pump, we suggest to use variable mud pump which not less than BW-100 type.
| DIMENSION(mm) | WEIGHT(kg) | |
| XY-200B | 1800*950*1450 | 700 |
| XY-200B-1 | 1780*950*1350 | 630 |
| XY-200B-2 | 1450*950*1350 | 550 |
| XY-200B-3 | 1860*950*1450 | 770 |
| XY-200B(GS) | 1800*950*1450 | 700 |
| XY-200B(GS)-1 | 1780*950*1350 | 630 |
| XY-200B(GS)-2 | 1450*950*1350 | 550 |
| XY-200B(GS)-3 | 1860*950*1450 | 770 |
PS: The rotate speed of (GS) series core drilling rig has the gear of 840r/min .User can choose according to actual situation.
