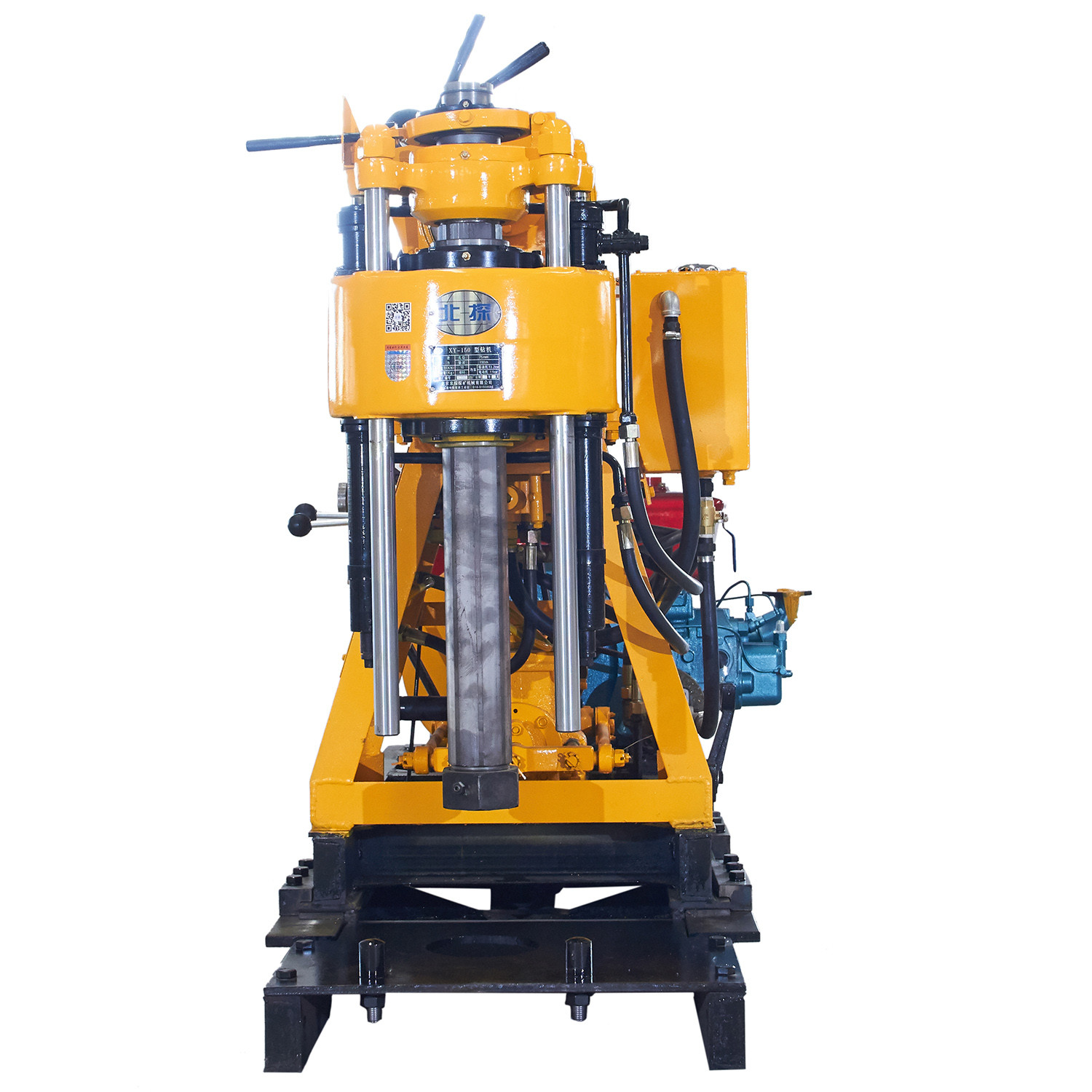

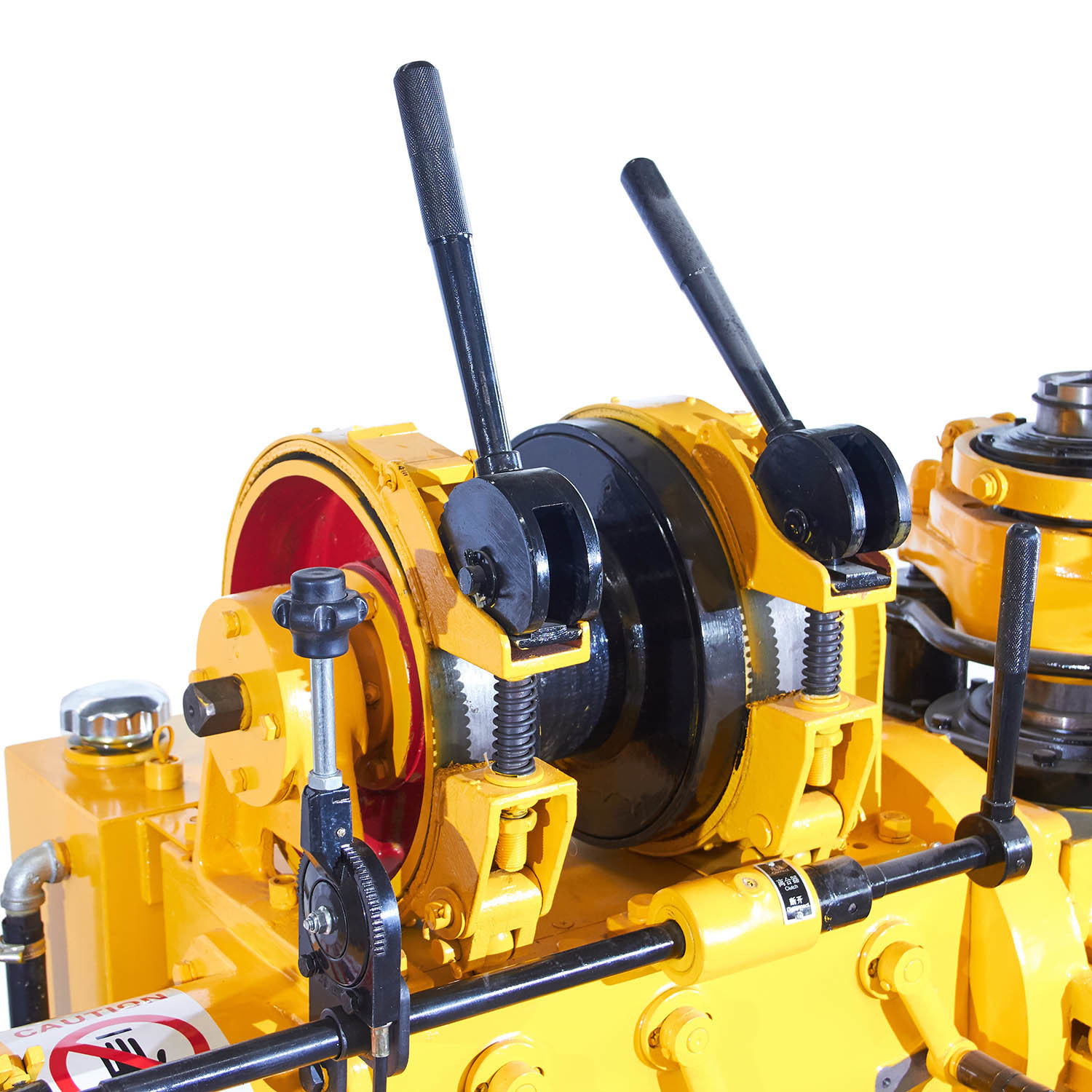

180m XY-1A Spindle Type Geological Drilling Machine


XY-1A Core Drilling Rig


180m XY-1A spindle type geological drilling rig is a portable hydraulic rig which on high speed. To meet the needs of different customers with widely practical use, we advance XY-1A(YJ) Model geological drilling rig, which is added with travel lower chuck; And a advance XY-1A-4 Model geological drilling rig, which is added with water pump; rig, water pump and diesel engine installed on same base.



Application Range

  • Geological exploration, engineering geology investigation and kinds of survey holes in concrete structures.
  • Diamond bits, hard metal bits and steel-shot bits could be selected to different layers.
  • The rated drilling depth is 100m using dia. 75mm bit, and 180m using dia. 46mmbit. The drilling depth cannot exceed 110% of its capacity. The allowable maximum diameter of initial hole is 150mm.Main features


Main features


(1) Easy operation and high efficiency with the hydraulic feeding

(2) As the ball type chuck and the driving rod, it can complete no-stopping rotating while the spindle relit

(3) The pressure indicator of bottom hole can be observed and the well conditions controlled easily

(4) Close levers, convenient to operate, safe and reliable

(5) Compact size and light in weight, easy to assemble, disassemble and transport, suitable for plains and mountain area.

(6) The octagon shape section spindle can give more torque.



Technical parameters


Drilling depth 100,180m
Max. Diameter of the initial hole 150mm
Diameter of the final hole 75,46mm
Diameter of drilling rod 42,43mm
Angle of drilling 90°-75°
Spindle speed(5 positions) 1010,790,470,295,140rpm
Spindle stroke 450mm
Max. feeding pressure 15KN
Max. lifting capacity 25KN
Hoisting Single wire lifting capacity 11KN
Rotation speed of drum 121,76,36rpm
Drum circumferential velocity(two layers) 1.05,0.66,0.31m/s
Diameter of the wire rope 9.3mm
Drum capacity 35m
oil pump
Model YBC-12/80
Nominal pressure 8Mpa
Flow 12L/min
Nominal speed 1500rpm
Power unit Type of diesel(S1100) Rated power 12.1KW
Rated rotating speed 2200rpm
Type of electrical motor(Y160M-4) Rated power 11KW
Rated rotating speed 1460rpm
Overall dimension XY-1A 1433*697*1274mm
XY-1A-4 1700*780*1274mm
XY-1A(YJ) 1620*970*1560mm
Total weight(not include power unit) XY-1A 420kg
XY-1A-4 490kg
XY-1A(YJ) 620kg
