| Place of Origin: | China |
|---|---|
| Brand Name: | SINOVO |
| Certification: | CE/ISO9001 |
| Model Number: | TPI700 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | International Export Carton Case Package |
| Delivery Time: | 7-10 work days |
| Payment Terms: | L/C, D/A, T/T |
| Supply Ability: | 30 set per month |
| Name: | 150m Depth 110mm Dia MEDIAN Tunnel Multifunction Crawler Drill | Model: | TPI700 |
|---|---|---|---|
| Max Drilling Depth: | 150m | Max Drilling Diameter: | 110mm |
| Rotation Unit Feeding Stroker: | 3600mm | Drilling Angle: | Full Range |
| Maximum Torque: | 3600 Nm | Weight: | 16000KG |
| High Light: | multifunction crawler drill rig,median tunnel crawler drill rig,150m depth crawler drill rig |
||

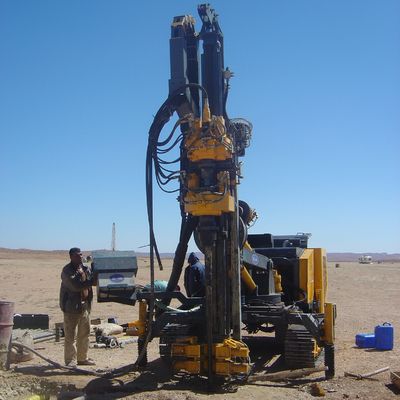

150m Depth 110mm Dia MEDIAN Tunnel Multifunction Crawler Drill
MEDIAN tunnel multifunction crawler drill is a multipurpose tunnel drilling rig. It is Corporate with France TEC and manufactured a new, full hydraulic and automatic intelligent machine. MEDIAN tunnel multifunction crawler drill can be used for tunnel, underground and wide range projects.
1. Main Features of MEDIAN tunnel multifunction crawler drill
(1) Compact size, suitable for wide range projects.
(2) Drilling rod: Level 360 degree, vertical 120 degree/-20 degree, 2650mm adjust range for any angles.
(3) Drilling feeding stroke 3600mm, high efficiently.
(4) Equipped clamp holder and breaker, full automatic, easy to operate.
(5) Easy to locate drilling position, full angle drilling.
(6) Hydraulic crawler drive, mobility, wired-remote control, safe and convenient.
2. Technical parameters
| Fundamental parameters |
Drilling diameter | 250-110mm | ||
| Drilling depth | 50-150m | |||
| Drilling angle | full range | |||
| Overall dimension | Horizon | 6400*2400*3450mm | ||
| Vertical | 6300*2400*8100mm | |||
| Drilling rig weight | 16000kg | |||
| Rotation unit (TPI700) |
Rotation speed | Single motor |
Low speed | 0-176r/min |
| High speed | 0-600r/min | |||
| Double motor |
Low speed | 0-87r/min | ||
| High speed | 0-302r/min | |||
| Torque | 0-176r/min | 3600Nm | ||
| 0-600r/min | 900Nm | |||
| 0-87r/min | 7200Nm | |||
| 0-302r/min | 1790Nm | |||
| Rotation unit feeding stroke | 3600mm | |||
| Feeding system | Rotation lifting force | 70KN | ||
| Rotation feeding force | 60KN | |||
| Rotation lifting speed | 17-45m/min | |||
| Rotation feeding speed | 17-45m/min | |||
| Clamp holder | Clamp range | 45-255mm | ||
| Break torque | 19000Nm | |||
| Traction | Body width | 2400mm | ||
| Crawler's width | 500mm | |||
| Theory speed | 1.7Km/h | |||
| Rated traction force | 16KNm | |||
| Slope | 35° | |||
| Max. lean angle | 20° | |||
| Power | Single diesel engine |
Rated power | 109KW | |
| Rated rotating speed | 2150r/min | |||
| Deutz AG 1013C air cooling | ||||
| Double diesel engine |
Rated power | 47KW | ||
| Rated rotating speed | 2300r/min | |||
| Deutz AG 2011 air cooling | ||||
| Electricity motor | Rated power | 90KW | ||
| Rated rotating speed | 3000r/min | |||
FAQ
Q1: Are you factory or trade company?
A1: We are factory. And we have ourselves trading company.
Q2: Warranty terms of your machine?
A2: One year warranty for the machine and technical support according to your needs.
Q3: Will you provide some spare parts of the machines?
A3: Yes, of course.
Q4: What about the voltage of products? Can they be customized?
A4: Yes, of course. The voltage can be customized according to your equirement.
Q5: Can you accept OEM orders?
A5: Yes, with professional design team, OEM orders are highly welcome.
Q6: Which trade term can you accept?
A6: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
