Drilling Depth 240 Meters Diameter 105-305mm Hydraulic Water Well Drilling Machine

Basic Information
Place of Origin: CHINA
Brand Name: SINOVO
Certification: CE/GOST/ISO9001
Model Number: SNR200
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: International standard packaging
Delivery Time: 7-10 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 30 units per month
Detail Information
Name: Depth 240 Meters Diameter 105-305mm Water Well Drilling Machine Model: SNR200
Certification: CE/GOST/ISO9001 Air Consumption: 16-96 M³/min
Max Drilling Depth: 240m Drilling Diameter: 105-305mm
Air Pressure: 1.25-3.5Mpa Max Rotary Torque: 3700 Nm
Highlight:

depth 240meters water well drilling machine

,

diameter 105MM water well drilling machine

,

ISO borehole water well drilling machine


Product Description

Depth 240 Meters Diameter 105-305mm Water Well Drilling Machine



SNR200 full hydraulic drilling rig is characterized by small body and compact design. The small truck can be transported, which is more convenient to move and saves the cost. It is suitable for drilling in narrow ground. The drilling depth can reach 250 meters.





Technical parameter:



Item Unit SNR200
Max drilling depth m 240
Drilling diameter mm 105-305
Air pressure Mpa 1.25-3.5
Air consumption m3/min 16-55
Rod length m 3
Rod diameter mm 89
Main shaft pressure T 4
Lifting force T 12
Fast lifting speed m/min 18
Fast forwarding speed m/min 30
Max rotary torque N.m 3700
Max rotary speed r/min 70
Big secondary winch lifting force T
Small secondary winch lifting force T 1.5
Jacks stroke m Low jack
Drilling efficiency m/h 10-35
Moving speed Km/h 2.5
Uphill angle ° 21
Weight of the rig T 8
Dimension m 6.4*2.08*2.8
Working condition Unconsolidated formation and Bedrock
Drilling method Top drive hydraulic rotary and pushing, hammer or mud drilling
Suitable hammer Medium and high air pressure series
Optional accessories Mud pump, Centrifugal pump, Generator, Foam pump





Features and advantages:



1. Full hydraulic control is convenient and flexible

The speed, torque, thrust axial pressure, reverse axial pressure, thrust speed and lifting speed of the drilling rig can be adjusted at any time to meet the requirements of different drilling conditions and different construction technologies.



2. Advantages of top drive rotary propulsion

It is convenient to take over and unload the drill pipe, shorten the auxiliary time, and is also conducive to follow-up drilling.



3. It can be used for multi-function drilling

All kinds of drilling techniques can be used on this kind of drilling machine, such as down the hole drilling, through air reverse circulation drilling, air lift reverse circulation drilling, cutting drilling, cone drilling, pipe following drilling, etc. The drilling machine can install mud pump, foam pump and generator according to the needs of users. The rig is also equipped with a variety of hoists to meet the different needs of customers.



4. High efficiency and low cost

Due to full hydraulic drive and top drive rotary propulsion, it is suitable for all kinds of drilling technology and drilling tools, with convenient and flexible control, fast drilling speed and short auxiliary time, so it has high operation efficiency. The down the hole hammer drilling technology is the main drilling technology of the drilling rig in the rock. The down the hole hammer drilling operation efficiency is high, and the single meter drilling cost is lower.



5. It can be equipped with high leg crawler chassis

The high outrigger is convenient for loading and transportation, and can be loaded directly without crane. Crawler walking is more suitable for muddy field movement.



6. The positive and negative axial pressure can be adjusted

The best impact efficiency of all kinds of impactors has its best matching axial pressure and speed. In the process of drilling, with the increasing number of drill pipes, the axial pressure on the impactor is also increasing. Therefore, in the construction, the positive and negative axial pressure valves can be adjusted to ensure that the impactor can obtain more matching axial pressure. At this time, the impact efficiency is higher.



7. Optional rig chassis

The rig can be mounted on crawler chassis, truck chassis or trailer chassis.

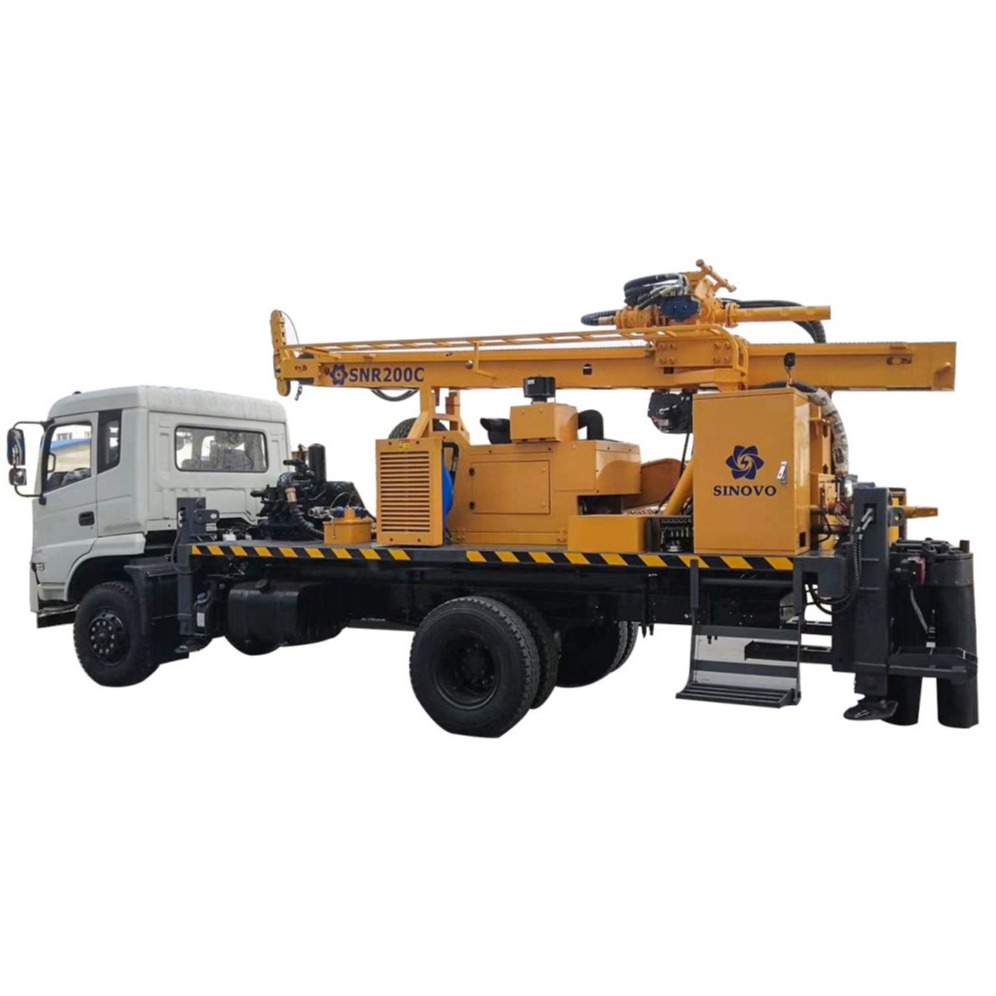

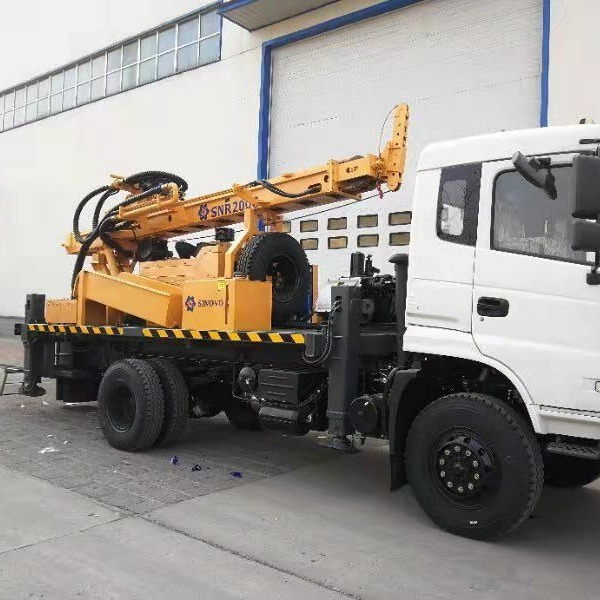

Drilling Depth 240 Meters Diameter 105-305mm Hydraulic Water Well Drilling Machine 0Drilling Depth 240 Meters Diameter 105-305mm Hydraulic Water Well Drilling Machine 1







FAQ



1. About Price: The price is negotiable. It can be changed according to your quantity When you are making an inquiry, please let us know the quantity you want.

2. About MOQ: If the drilling rigs, the MOQ is 1 set; If the drilling tools ( DTH hammers & bits ) , the MOQ is 10 pcs;

3. About OEM and ODM: Welcome, you can send your own design of product and LOGO to our company.
