ZJD 2800/280 Hydraulic Reverse Circulation Drilling rig Drilling Max Diameter 2800mm, Air-lift or mudReverse Circulation

Basic Information
Place of Origin: CHINA
Brand Name: SINOVO
Model Number: ZJD2800/280
Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: International standard packaging
Delivery Time: 7-10 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 30 per month
Detail Information
Certification: CE/GOST/ISO9001 Name: Hydraulic Reverse Circulation Drilling Rig
Model: ZJD2800/280 Max Diameter: 2800mm
Rated power of engine: 298kw Engine model: QSM11/298
Dimension: 6.2x5.8x9.2m Weight: 31t
High Light:

280m reverse circulation drilling rig

,

280m rc drill rig

,

hydraulic reverse circulation drilling rig


Product Description



ZJD2800/280 2800mm Max Diameter Hydraulic Reverse Circulation Drilling Rig



ZJD series full hydraulic drilling rigs are mainly used for the drilling construction of pile foundations or shafts in complex formations such as large diameter, large depth or hard rock. The maximum diameter of this series of drilling rigs is 5.0 m, and the deepest depth is 200m. The maximum strength of the rock can reach 200 Mpa. It is widely used in the drilling of large-diameter pile foundations such as large-scale land buildings, shafts, port wharfs, rivers , lakes , and sea bridges . It is the first choice for large-diameter pile foundation construction.



Main performance parameters of ZJD2800/280 hydraulic reverse circulation drilling rig:



Item Name Description Unit Data Remark
1 Basic parameters Size   ZJD2800/280
Max Diameter mm Φ2800
Rated power of engine Kw 298
Weight t 31
Downforce of cylinder KN 800
Lifting fore of cylinder KN 1200
Cylinder stroke mm 3750
Max speed of rotary head rpm 400
Min speed of rotary head rpm 11 Constant torque at low speed
Min speed torque KN.m 280
Length of hydraulic hose m 40
Max load of pile cap KN 600
Engine power Kw 298
Engine model   QSM11/298
Max flow L/min 780
Max working pressure bar 320
Dimension m 6.2x5.8x9.2
2 Other parameters Inclination angle of rotary head deg 55
Max Depth m 150
Drill rod   Φ351*22*3000 Q390
Inclination angle of guide frame deg 25

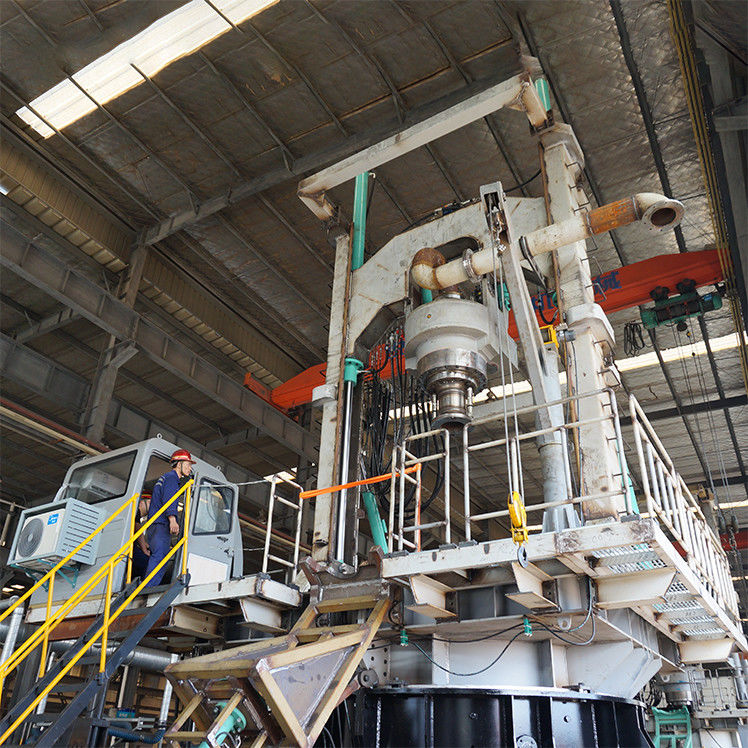

ZJD 2800/280 Hydraulic Reverse Circulation Drilling rig Drilling Max Diameter 2800mm, Air-lift or mudReverse Circulation 0



Features of ZJD2800/280 hydraulic reverse circulation drilling rig:



1. Full hydraulic continuously variable transmission is equipped with imported transmission components, which has reliable and stable transmission performance, adopts frequency conversion motor, which is efficient and energy saving. Reasonable optimization of power configuration, strong and powerful, high work efficiency, fast hole formation.

2. The hydraulic and electrical dual-circuit control system increases the reliability of equipment operation. The electrical control system adopts PLC, monitoring screen. wireless communication module and combines manual control to form a dual-circuit control method, which can be remotely controlled by remote control or can be manually completed operation.

3. Full hydraulic power rotating head, providing large torque and large lifting force to overcome complex formations such as gravel and rocks and hard rock formations.

4. The operating system is a combination of wireless remote control, manual and automatic operation.

5. Optional counterweight to pressurize the bottom of the hole to ensure the verticality of the hole and improve the drilling efficiency.

6. A dual-mode operating system with intelligent operation and wireless operation. The intelligent system uses advanced sensor technology to display real-time operating parameters of equipment, real-time storage and printing of construction data, multi-point video monitoring system combined with GPS positioning, GPRS remote real-time transmission and monitoring of drilling rig site operations happening.

7. It is relatively small in size and light in weight. It is easy to disassemble the drilling rig. All electrical and hydraulic connectors involved in disassembly and assembly use aviation plugs or quick connectors, and structural parts have disassembly and assembly signs.

8. Tilting suspension power head and tilting frame, combined with hydraulic auxiliary crane, compact and reasonable structure, safe and convenient to disassemble and assemble drill pipe and drill bit.

9. Large-diameter drill pipes and double-walled drill pipes adopt high-pressure gas lift sealing device and advanced RCD construction method to achieve fast footage.

10. The operation room is installed on the working platform, which is convenient for operation and comfortable environment. The temperature adjustment equipment can be installed on your own.

11. Optional stabilizer to assist drilling to control the verticality and hole accuracy and reduce drill tool wear.

12. The equipment configuration function can be selected according to actual construction needs, with specific efficiency and diversified choices:

A. Install inclined platform feet for inclined pile construction;

B. Drill rod auxiliary crane with hydraulically driven telescopic boom and hydraulic hoist;

C. The mobile walking system of the drilling rig (walking or crawler);

D. Electric drive system or diesel power drive system;

E. Combined drilling tool system;

F. Set of counterweight drill pipe counterweight or integral flange connection counterweight;

G. Drum type or split type stabilizer (centralizer);

H. The user can specify brand imported components.

ZJD 2800/280 Hydraulic Reverse Circulation Drilling rig Drilling Max Diameter 2800mm, Air-lift or mudReverse Circulation 1ZJD 2800/280 Hydraulic Reverse Circulation Drilling rig Drilling Max Diameter 2800mm, Air-lift or mudReverse Circulation 2
