Powered Hydraulic Casing Rotator No Noise With Cummins Engine

Basic Information
Place of Origin: China
Brand Name: SINOVO
Certification: CE/GOST/ISO9001
Model Number: TR2605H
Minimum Order Quantity: 1
Delivery Time: ON STOCK
Payment Terms: T/T&L/C
Detail Information
High Light:

drilling equipment


foundation drilling equipment


foundation drilling

Product Description

Powered Hydraulic Casing Rotator No Noise With Cummins Engine

The  casing rotator isa a new type drill with the integration of the full hydraulic power and transmission, and the combination control of machine, power and fluid, it is a new, environmentally-friendly and highly efficient drilling technology. In recent years, it is widely adopted in the projects such as the constructions of urban subway, articulation pile of deep doundation pit enclosure, clearance of waste piles (underground obstruction), high-speed rail, road and bridge, and urban construction piles, as well as the reinforcement of resevoir dam.

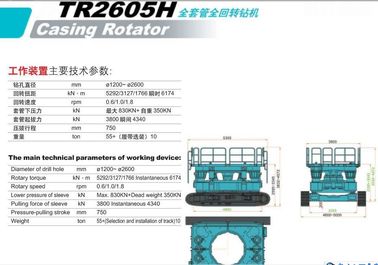

Working device Diameter of drill hole mm Φ1200-Φ2600
Rotary torque KN.m 5292/3127/1766 Instantaneous 6174
Rotary speed rpm 0.6/1.0/1.8
Lower pressure of sleeve KN Max.830KN+Dead weight350KN
Pulling force of sleeve KN 3800 Instantaneous 4340
Pressure-pulling stroke mm 750
Weight ton 55+(selection and installation of track)10
Hydraulic power station Engine model   Cummins QSM15-600
Engine Power Kw/rpm 441/1800
Full consumption of engine g/kwh 213(when the maximum power rate)
Weight ton 12
Control mode   Wired remote control
