| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SINOVO |
| Certification: | CE/GOST/ISO9001 |
| Model Number: | Multi-model |
| Minimum Order Quantity: | ONE UNIT |
| Price: | Negotiation |
| Packaging Details: | International Export Carton Case Package |
| Delivery Time: | 7-10 work days |
| Payment Terms: | T/T&L/C |
| Supply Ability: | 300000 Units Per Year |
| Name: | Rotary Drilling Augers Straight Backets Tungsten Carbide Drilling Teeth | Suit For: | Rotary Drilling Rig |
|---|---|---|---|
| Customized: | Yes | Certificate: | CE/ISO9001 |
| Backet Type: | Straight | Keywords: | Drilling Teeth, Drilling Tools, Drilling Accessories |
| Machine Type: | Drilling Tools | Type: | Double Bottom Drilling Teeth |
| Backet Height: | 800-1200 | ||
| High Light: | rotary drilling auger cutting teeth,straight brackets auger cutting teeth,tungsten carbide auger cutting teeth |
||

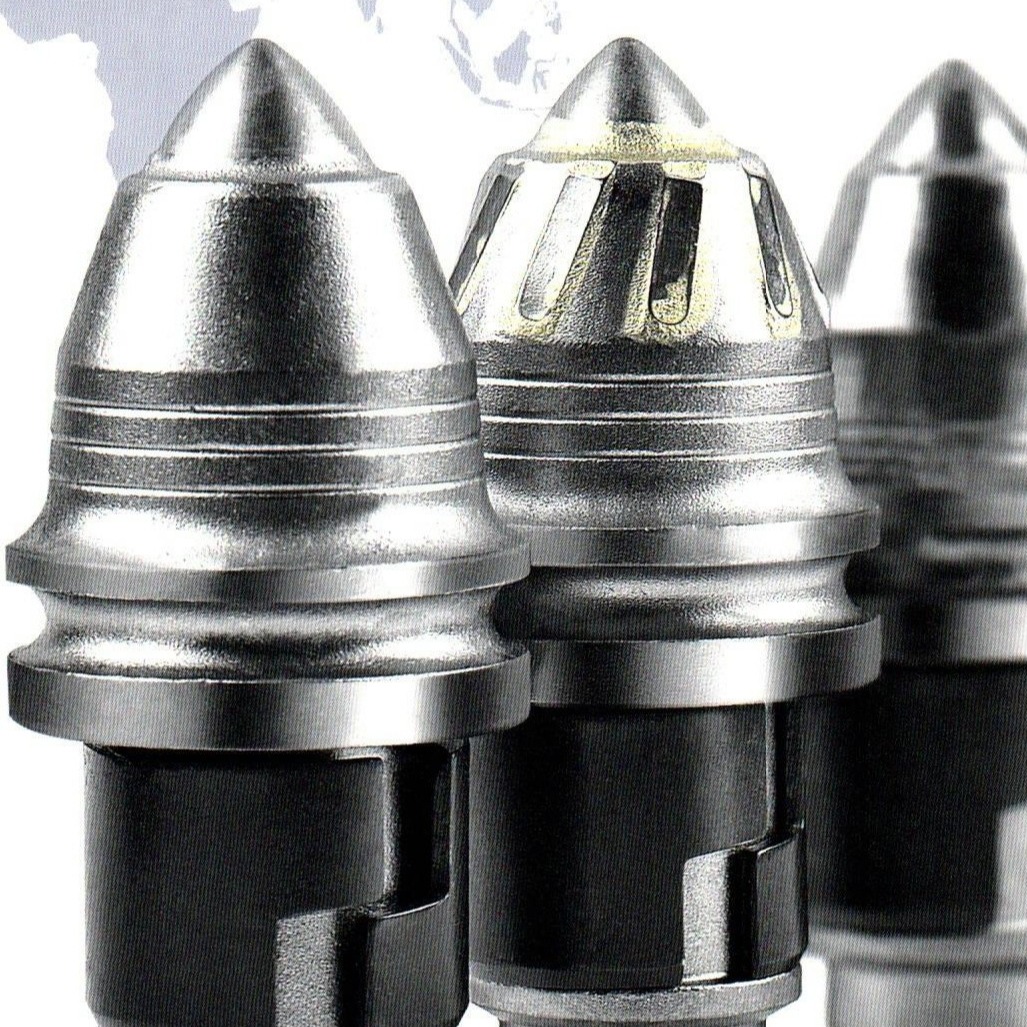

Rotary Drilling Augers Straight Backets Tungsten Carbide Drilling Teeth
Our products are made from the most impact resistance and wear resistance of carbide drilling teeth, high precision steel forging. The machining and assembly process are completely high-precision and high-efficiency automatic production line. Sinovo group is a strong supporter for you to pursuit first-class quality on construction tools.
Characters:
A. High performance& price ratio.
B. Wear-resistant carbide tip to extended tooth life.
C. Strong braze weld for superior tip retention.
D. Specially hardened head for much longer tooth life.
E. Fully ranged products for mining, foundation drilling,quarrying, trenching, road milling, and tunnel boring.
Model and parameters of drilling teeth:
|
Product name |
Rotary drilling teeth |
|
Color |
Primary color |
|
Condition |
New |
|
Processing type |
Hot forging |
|
Apply to industry |
Construction, energy and mining, quarrying |
|
Customized |
Yes |
|
Showroom Location |
China |
|
Video outgoing-inspection |
Provided |
|
Machinery Test Report |
Provided |
|
Marketing Type |
New Product 2021 |
|
Place of Origin |
HeBei,CHINA |
|
Type |
DRILL BIT |
|
Processing Type |
Forging |
| Name | Specification | Backet height | Backet Type | Bucket wall thickness | Thickness of inner bottom plate (mm) | Thickness of outer base plate (mm) | Teeth quantity pc | Weight (kg) |
| Double bottom drilling teeth | 0.6M | 1200 | Straight | 20 | 40 | 50 | 8 | 687 |
| 0.7M | 1200 | Straight | 20 | 40 | 50 | 9 | 810 | |
| 0.8M | 1200 | Straight | 20 | 40 | 50 | 12 | 963 | |
| 0.9M | 1200 | Straight | 20 | 40 | 50 | 13 | 1150 | |
| 1.0M | 1200 | Straight | 20 | 40 | 50 | 15 | 1320 | |
| 1.1M | 1200 | Straight | 20 | 40 | 50 | 15 | 1475 | |
| 1.2M | 1200 | Straight | 20 | 40 | 50 | 18 | 1670 | |
| 1.3M | 1200 | Straight | 20 | 40 | 50 | 20 | 1865 | |
| 1.4M | 1200 | Straight | 20 | 40 | 50 | 20 | 2100 | |
| 1.5M | 1200 | Straight | 20 | 40 | 50 | 21 | 2310 | |
| 1.6M | 1200 | Straight | 20 | 40 | 50 | 22 | 2550 | |
| 1.8M | 1000 | Straight | 20 | 40 | 50 | 25 | 3332 | |
| 2.0M | 1000 | Straight | 20 | 40 | 50 | 27 | 3868 | |
| 2.2M | 800 | Straight | 25 | 40 | 50 | 29 | 4448 | |
| 2.4M | 800 | Straight | 25 | 40 | 50 | 33 | 5394 | |
| 2.5M | 800 | Straight | 25 | 40 | 50 | 33 | 5791 | |
| 2.8M | 800 | Straight | 25 | 40 | 50 | 33 | 6790 | |
| 3.0M | 800 | Straight | 30 | 40 | 50 | 39 | 8565 |
The drilling teeth of Sinovo rotary drilling rig is suitable for various geological conditions
1. Unique brazing process ensures that the alloy is not lost;
2. The tool body processing technology ensures that the tool body has high hardness and toughness;
3. Unique alloy structure, super coarse alloy particle size, improve the toughness and impact resistance of the alloy, reduce cutting energy consumption and improve drilling speed in the drilling process.
4. Adopts superior raw materials and muture process to manufacture drilling teeth.
5. Carry out the strict production process and test procedures.
6. Supply ODM/OEM service according to your request.
How can we keep the quality stable?
1. Raw material selected
2. Advanced design and production equipment
3. Skilled technician
4. Finished Product testing
5. Customers’ feedback to change design and materialas
