| Place of Origin: | China |
|---|---|
| Brand Name: | SINOVO |
| Certification: | CE/GOST/IS9001 |
| Model Number: | SPA8 |
| Minimum Order Quantity: | 1 Set |
| Price: | To be negotiated |
| Packaging Details: | Wooden Case |
| Delivery Time: | ON STOCK |
| Payment Terms: | L/C or T/T |
| Supply Ability: | 30 sets per month |
| Name: | Hydraulic Pile Breaker Machine For Round Concrete Piles | Max Pile Diameter: | 2000mm |
|---|---|---|---|
| Max Drill Rod Pressure: | 790kN | Max Stroke Of Cylinder: | 230mm |
| Max Flow Of Single Cylinder: | 31.5L/min | Max Cut Number Of Pile: | 30-100/8h |
| Height Of Cutting Each Time: | ≦300mm | Module Numbers: | 13 |
| Diameter: | 400-2000 | After-sales Service Provided: | Video Technical Support, Online Support |
| High Light: | round concrete hydraulic pile breaking machine,1200mm hydraulic pile breaking machine,round concrete hydraulic pile breaker |
||

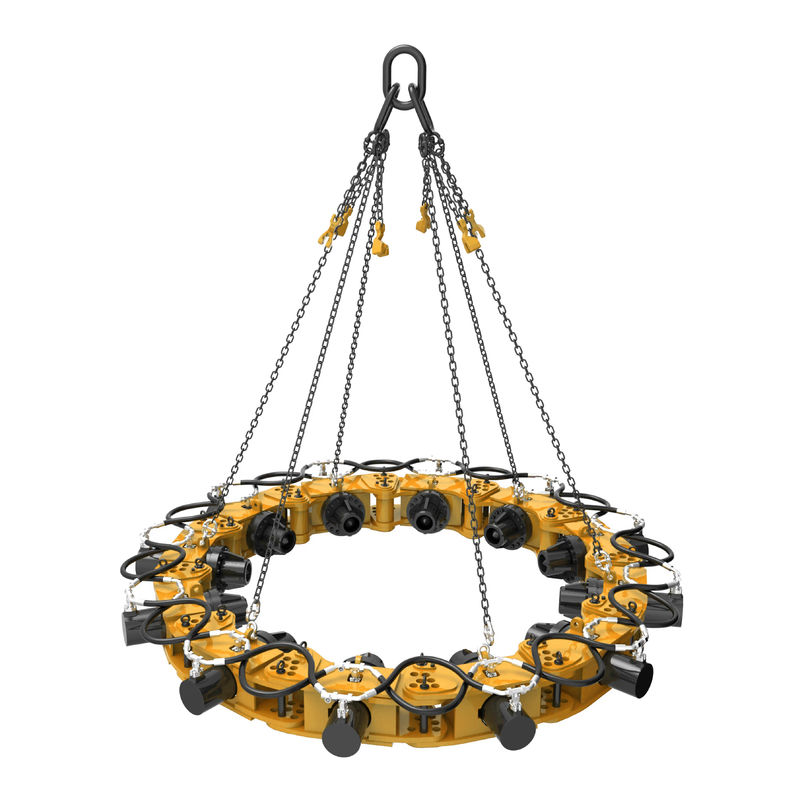

Hydraulic Pile Breaker Machine For Round Concrete Piles
The SPA series hydraulic pile breaker is composed of modules, which can be installed and disassembled by themselves according to the diameter of the pile head to be broken. It is installed at the front end of the excavator or crane, and the power of the excavator or hydraulic station is used to break the pile, mainly to break the solid cast-in-place pile and the solid prefabricated pile. According to the requirements of the construction site, the pipe piles may be broken.
| Your problems |
How can we solve it? |
|
Dangerous |
1. Contact-free operation is enabled. 2. And it imposes no impact force on the parent body of the pile and no influence on the bearing capacity of the pile. |
|
Slowly |
1.Replaceable and changeable module combination makes its applicable for piles with various diameters. 2.The modules can be assembled and disassembled easily and conveniently. |
| Noisy |
Its full hydraulic drive causes little noises during operation and no influence on the surrounding environments |
| Expensive salary |
1.Fewer operating workers are required to save cost for labor and machines maintenance during construction. 2.Suitable for different kinds of carrier. 3.Module generalization is realized with our SP380 and SP400-Bsquare pile machine. It can be used for both circular piles and square piles by changing the module combination |
| Nondurable |
1. It is made of military material by first-class suppliers with reliable quality, extending its service life. 2.The mainboard used Q345B and the chisel used the 42Crmo. 3.12 month after-sales service. 4.Professional small tools for free. |
SPA8 Specification (a group of 13 modules)
|
Model |
SPA8 |
|
Range of Pile diameter (mm) |
Ф1800-Ф2000 |
|
Maximum Drill rod pressure |
790kN |
|
Maximum stroke of hydraulic cylinder |
230mm |
|
Maximum pressure of hydraulic cylinder |
31.5MPa |
|
Maximum flow of single cylinder |
25L/min |
|
Cut the number of pile/8h |
30-100 pcs |
|
Height for cutting pile each time |
≦300mm |
|
Supporting the digging machine Tonnage (excavator) |
≧36t |
|
One-piece module weight |
410kg |
|
One-piece module size |
930x840x450mm |
|
Work status dimensions |
Ф3700x450 |
|
Total pile breaker weight |
5.5t |
Introduction
Most of the traditional pile head breaking methods use methods such as hammer blowing, manual drilling or air pick removal; however, these traditional methods have many disadvantages such as shock damage to the internal structure of the pile head, and now hydraulic concrete pile breakers have been It is a new, fast and efficient concrete structure demolition tool invented by combining the advantages of the above-mentioned various demolition equipment and the characteristics of the concrete structure itself. Greatly reduce the labor intensity of workers and improve work efficiency. Combined with the demolition method of the concrete pile breaker, it takes only a few minutes to cut off a pile head.
SPA series hydraulic pile breaker will not generate pressure wave, no vibration, noise and dust, and will not damage the pile foundation when breaking concrete piles. The machine has many advantages such as safety, high efficiency and energy saving in the field of concrete pile removal. With modular design, each module has a separate oil cylinder and drill rod, and the oil cylinder drives the drill rod to achieve linear motion. Multiple modules are combined to adapt to the construction of different pile diameters, and are connected in parallel through hydraulic pipelines to achieve synchronous action. The pile body is squeezed at multiple points on the same section at the same time, and the pile body at this section is broken.
Operation steps:
1. Suspend the installed hydraulic pile breaker on the front end of the excavator or the front end of the crane, and link the pipeline of the excavator or the pipeline of the hydraulic station;
2. Enter the construction site and put the hydraulic pile breaker on the pile head to be broken;
3. Use the power of the excavator or the power of the hydraulic station to break the pile;
4. Move the hydraulic pile breaker down 30-50cm and continue to break the pile;
5. Repeat steps 2-3 until the pile head is broken;
6. Clean up broken piles.
