| Place of Origin: | China |
|---|---|
| Brand Name: | SINOVO |
| Certification: | CE/GOST/IS9001 |
| Model Number: | SPF400B |
| Minimum Order Quantity: | 1 Set |
| Price: | To be negotiated |
| Packaging Details: | Wooden Case |
| Delivery Time: | ON STOCK |
| Payment Terms: | L/C or T/T |
| Supply Ability: | 30 sets per month |
| Name: | 300-400 Mm Engineering Construction Hydraulic Concrete Pile Breaker Machine For Square Pile | Max Pile Diameter: | 300-400mm |
|---|---|---|---|
| Max Drill Rod Pressure: | 325kN | Max Stroke Of Cylinder: | 150mm |
| Max Flow Of Single Cylinder: | 34.3L/min | Max Cut Number Of Pile: | 160/8h |
| Height Of Cutting Each Time: | ≦300mm | After-sales Service Provided: | Video Technical Support, Online Support |
| Working State Dimensions: | 1600×1600×2000mm | Weight: | 650kg |
| High Light: | 300mm hydraulic pile breaker,engineering construction hydraulic pile breaker,450mm pile breaker |
||

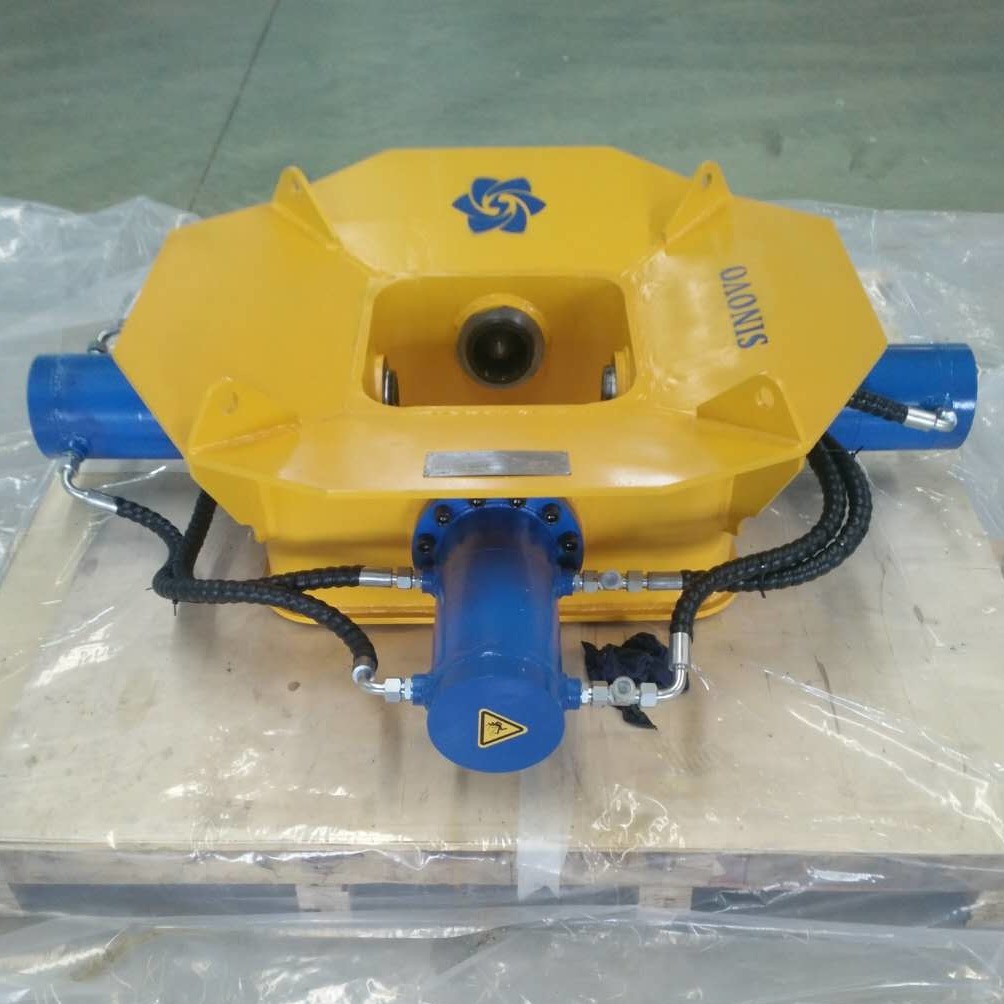

Engineering Construction Hydraulic Concrete Pile Breaker Machine For 300-400 mm Square Pile
SPF400B hydraulic concrete square pile breaker is applicable for pile-group works and is recommended strongly by the construction department and the supervision department.
The SPF400B hydraulic concrete square pile breaker has the following features: easy operation, high efficiency, low cost, less noise, more safety and stability. It imposes no impact force on the parent body of the pile and no influence on the bearing capacity of the pile and no influence on the bearing capacity of the pile, and shortens the construction period greatly.
SPF400B Hydraulic Pile Breaker Specification
|
Model |
SPF400B |
|
Range of Pile diameter (mm) |
300-400 |
|
Maximum Drill rod pressure |
325kN |
|
Maximum stroke of hydraulic cylinder |
150mm |
|
Maximum pressure of hydraulic cylinder |
34.3MPa |
|
Maximum flow of single cylinder |
25L/min |
|
Cut the number of pile/8h |
160 |
|
Height for cutting pile each time |
≦300mm |
|
Supporting the digging machine Tonnage(excavator) |
≧7t |
|
Work status dimensions |
1600X1600X2000mm |
|
Total pile breaker weight |
650kgs |
SPF400-B Construction’s Parameters
| Length of drill rod | Pile Diameter (mm) | Remark |
| 170 | 300-400 | Standard Configuration |
| 206 | 200-300 | Optional Configuration |
| Your problems |
How can we solve it? |
|
Dangerous |
1. Contact-free operation is enabled. 2. And it imposes no impact force on the parent body of the pile and no influence on the bearing capacity of the pile. |
|
Slowly |
1.Replaceable and changeable module combination makes its applicable for piles with various diameters. 2.The modules can be assembled and disassembled easily and conveniently. |
| Noisy |
Its full hydraulic drive causes little noises during operation and no influence on the surrounding environments |
| Expensive salary |
1.Fewer operating workers are required to save cost for labor and machines maintenance during construction. 2.Suitable for different kinds of carrier. 3.Module generalization is realized with our SP380 and SP400-Bsquare pile machine. It can be used for both circular piles and square piles by changing the module combination |
| Nondurable |
1. It is made of military material by first-class suppliers with reliable quality, extending its service life. 2.The mainboard used Q345B and the chisel used the 42Crmo. 3.12 month after-sales service. 4.Professional small tools for free.
|
Our Advantages
