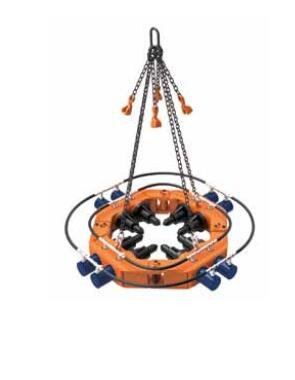

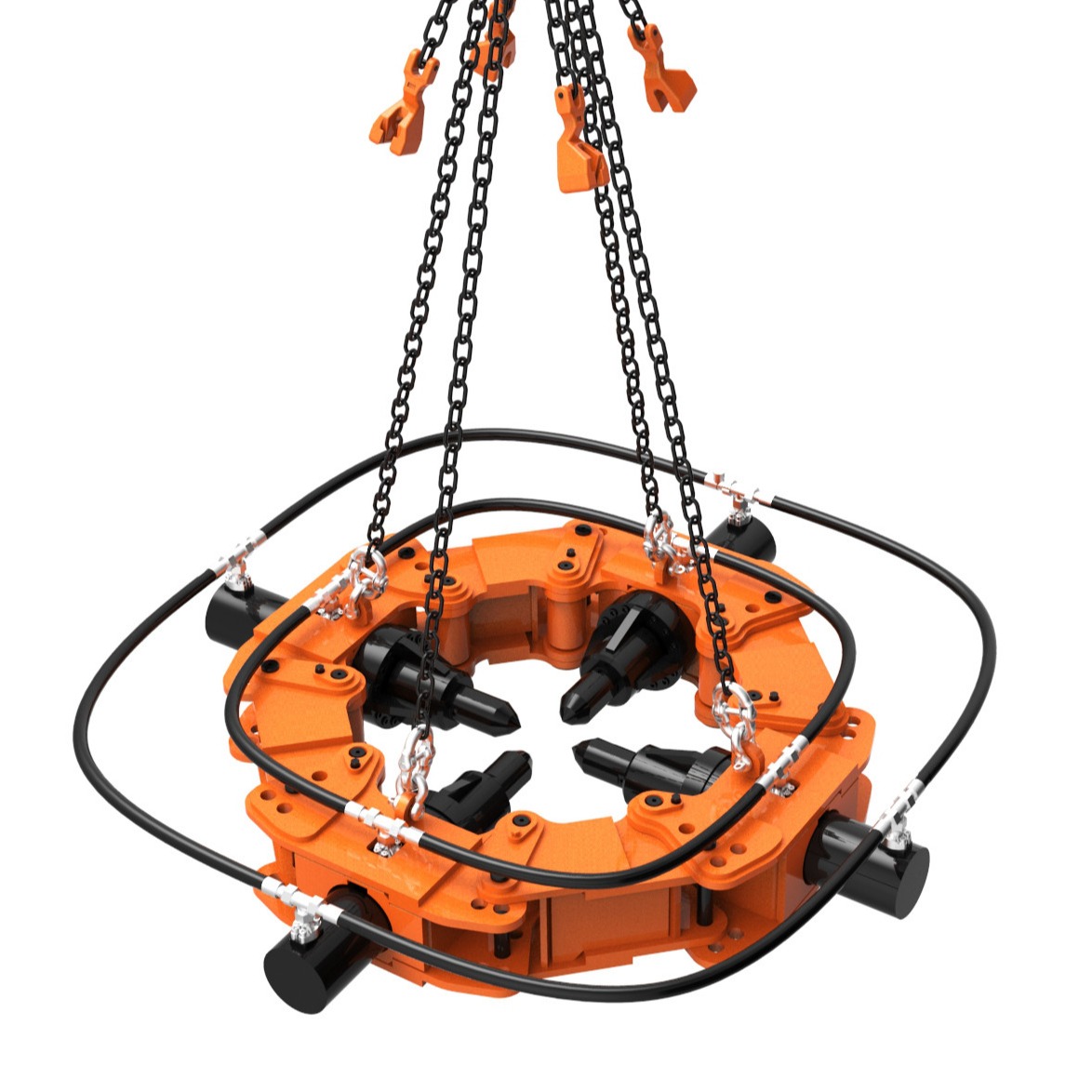

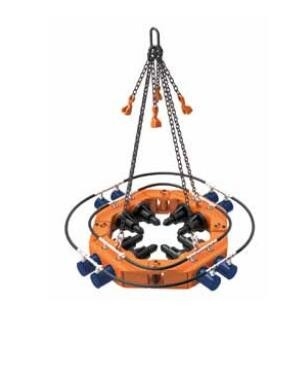

Spf500a Hydraulic Pile Breaker Capable Of Cutting Both Square Pile And Round Pile

Basic Information
Place of Origin: China
Brand Name: SINOVO
Certification: CE/GOST/IS9001
Model Number: SPF500A
Minimum Order Quantity: 1 Sets
Price: To be negotiated
Packaging Details: Wooden box and shrink film
Delivery Time: ON STOCK
Payment Terms: L/C or T/T
Supply Ability: 30 sets per month
Detail Information
Name: SPF500A Hydraulic Pile Breaking Machine Capable Of Cutting Both Square Pile And Round Pile Max Pile Diameter: 400-500mm
Max Drill Rod Pressure: 485kN Max Stroke Of Cylinder: 150mm
Max Flow Of Single Cylinder: 31.5L/min Max Cut Number Of Pile: 120/8h
Height Of Cutting Each Time: ≤300mm Working State Dimensions: 1710×1710×2500mm
Weight: 960kg Supporting The Digging MachineTonnage (excavator): ≥12T
High Light:

spf500a hydraulic pile breaker

,

square hydraulic pile breaker

,

round pile breaker machine


Product Description

SPF500A Hydraulic Pile Breaking Machine Capable Of Cutting Both Square Pile And Round Pile





SPF500A is the leading hydraulic pile breaker with five patented technologies and adjustable chain, it is the most efficient equipment to break the foundation plies. Due to the modular design the SPF500A pile breaker can be used for breaking different sizes of piles.
SPF500A hydraulic pile breaker offer its several cylinders oil pressure through power source and cylinder directlydrive the chisels and squeeze the pile body at the same time to break the pile. It operates easily and hashigh effiency, low noise, low cost in the pile cutting construction process, which is suitable for pile group inconstruction engineering Hydraulic pile breaker machine adopts highly modular combinations and connectmodules through axis pins. It can break piles in certain ranges of diameter by different number of modules combination.





Feature



1. Low-cost : The operating system is easy and convenient. Fewer operating workers are required to save cost for labor and machines maintenance during construction.
2. Environment-friendly: Its full hydraulic drive causes little noises during operation and no influence on the surrounding environments.
3. Small volume: It's light for convenient transportation. And also so convenience: it’s small for convenient transportation. Replaceable and changeable module combination makes its applicable for piles with various diameters. The modules can be assembled and disassembled easily and conveniently.
4. Multi-function: Module generalization is realized with our SPF500A square pile machine. It can be used for both circular piles and square piles by changing the module combination.
5.Universal property: It can be driven by diverse power sources and is compatible with excavators or hydraulic system according to the construction sites conditions. It is flexible to connect multiple construction machines with universal and economical performance. The telescopic sling lifting chains meet the requirements of various land forms.
6.Long service life: It is made of military material by first-class suppliers with reliable quality, extending its service life.
7.Safety: Contact-free operation is enabled and it can be applied for construction on complex land form.





SPF500A Hydraulic Pile Breaker Specification



Model SPF500A

Range of Pile diameter (mm)

400-500

Maximum Drill rod pressure

485kN

Maximum stroke of hydraulic cylinder

150mm

Maximum pressure of hydraulic cylinder

31.5MPa

Maximum flow of single cylinder

25L/min

Cut the number of pile/8h

120

Height for cutting pile each time

≦300mm

Supporting the digging machine Tonnage(excavator)

≧12t

One-piece module weight

200kg

One-piece module size

595x980x 275mm

Work status dimensions

1710X1710X2500mm

Total pile breaker weight

960kgs



Length of drill rod Pile Diameter (mm) Remark
170 400-500 Standard Configuration
206 300-400 Optional Configuration



Cylinder-----Chinese Largest Cylinder Factory
Module-----Steel Casing, which is stronger than iron welding
Drill Rod-----3-times Special Heat Treatment, which guarantees its strength & tenacity





Our Advantages



  • Obtained more than 20 patents and exported to more than 60 countries.
  • A professional R&D team with 10 years of industry experience.
  • Passed ISO9001 quality management system certification, obtained CE certification.
  • Engineer overseas service. Ensure the quality of the machine and good after - sales service.



Packaging & Delivery
Packaging Details
hydraulic pile cutter, pile breaker, hydraulic breaker for excavator
Packing with wooden box or as customer required
Port
Tianjin
