240m Depth Full Hydraulic Water well Drilling Rig SNR200C Borehole Drilling Rig

Basic Information
Place of Origin: CHINA
Brand Name: SINOVO
Certification: CE/GOST/ISO9001
Model Number: SNR200C
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: International standard packaging
Delivery Time: 7-10 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 30 units per month
Detail Information
Name: 240m Depth Full Hydraulic SNR200C Water Well Drilling Rig Machine For Borehole Model: SNR200C
Certification: CE/GOST/ISO9001 Max Diameter: 305mm
Max Drilling Depth: 240m Max Rotary Torque: 3700N.m
Max Rotary Speed: 70r/min Dimension: 6.4*2.08*2.8m
Weight: 8t Drilling Method: Top Drive Hydraulic Rotary And Pushing, Hammer Or Mud Drilling
High Light:

240m depth waterwell drilling rig

,

waterwell drilling rig full hydraulic

,

full hydraulic borehole drilling machine


Product Description



240m Depth Full Hydraulic SNR200C Water Well Drilling Rig Machine For Borehole





SNR200C full hydraulic water well drilling rig is characterized by small body and compact design. The small truck can be transported, which is more convenient to move and saves the cost. It is suitable for drilling in narrow ground. The drilling depth can reach 250 meters.





Main performance parameters of SNR200C water well drilling rig machine :



Item Unit SNR200

Max drilling depth

m

240

Drilling diameter

mm

105-305

Air pressure

Mpa

1.25-3.5

Air consumption

m3/min

16-55

Rod length

m

3

Rod diameter

mm

89

Main shaft pressure

T

4

Lifting force

T

12

Fast lifting speed

m/min

18

Fast forwarding speed

m/min

30

Max rotary torque

N.m

3700

Max rotary speed

r/min

70

Big secondary winch lifting force

T

Small secondary winch lifting force

T

1.5

Jacks stroke

m

Low jack

Drilling efficiency

m/h

10-35

Moving speed

Km/h

2.5

Uphill angle

°

21

Weight of the rig

T

8

Dimension

m

6.4*2.08*2.8

Working condition

Unconsolidated formation and Bedrock

Drilling method

Top drive hydraulic rotary and pushing, hammer or mud drilling

Suitable hammer

Medium and high air pressure series

Optional accessories

Mud pump, Centrifugal pump, Generator, Foam pump





Features of SNR200C water well drilling rig machine :



1. Full hydraulic control is convenient and flexible

The speed, torque, thrust axial pressure, reverse axial pressure, thrust speed and lifting speed of the drilling rig can be adjusted at any time to meet the requirements of different drilling conditions and different construction technologies.



2. Advantages of top drive rotary propulsion

It is convenient to take over and unload the drill pipe, shorten the auxiliary time, and is also conducive to follow-up drilling.



3. It can be used for multi-function drilling

All kinds of drilling techniques can be used on this kind of drilling machine, such as down the hole drilling, through air reverse circulation drilling, air lift reverse circulation drilling, cutting drilling, cone drilling, pipe following drilling, etc. The drilling machine can install mud pump, foam pump and generator according to the needs of users. The rig is also equipped with a variety of hoists to meet the different needs of customers.



4. High efficiency and low cost

Due to full hydraulic drive and top drive rotary propulsion, it is suitable for all kinds of drilling technology and drilling tools, with convenient and flexible control, fast drilling speed and short auxiliary time, so it has high operation efficiency. The down the hole hammer drilling technology is the main drilling technology of the drilling rig in the rock. The down the hole hammer drilling operation efficiency is high, and the single meter drilling cost is lower.



5. It can be equipped with high leg crawler chassis

The high outrigger is convenient for loading and transportation, and can be loaded directly without crane. Crawler walking is more suitable for muddy field movement.



6. The positive and negative axial pressure can be adjusted

The best impact efficiency of all kinds of impactors has its best matching axial pressure and speed. In the process of drilling, with the increasing number of drill pipes, the axial pressure on the impactor is also increasing. Therefore, in the construction, the positive and negative axial pressure valves can be adjusted to ensure that the impactor can obtain more matching axial pressure. At this time, the impact efficiency is higher.



7. Optional rig chassis

The rig can be mounted on crawler chassis, truck chassis or trailer chassis.

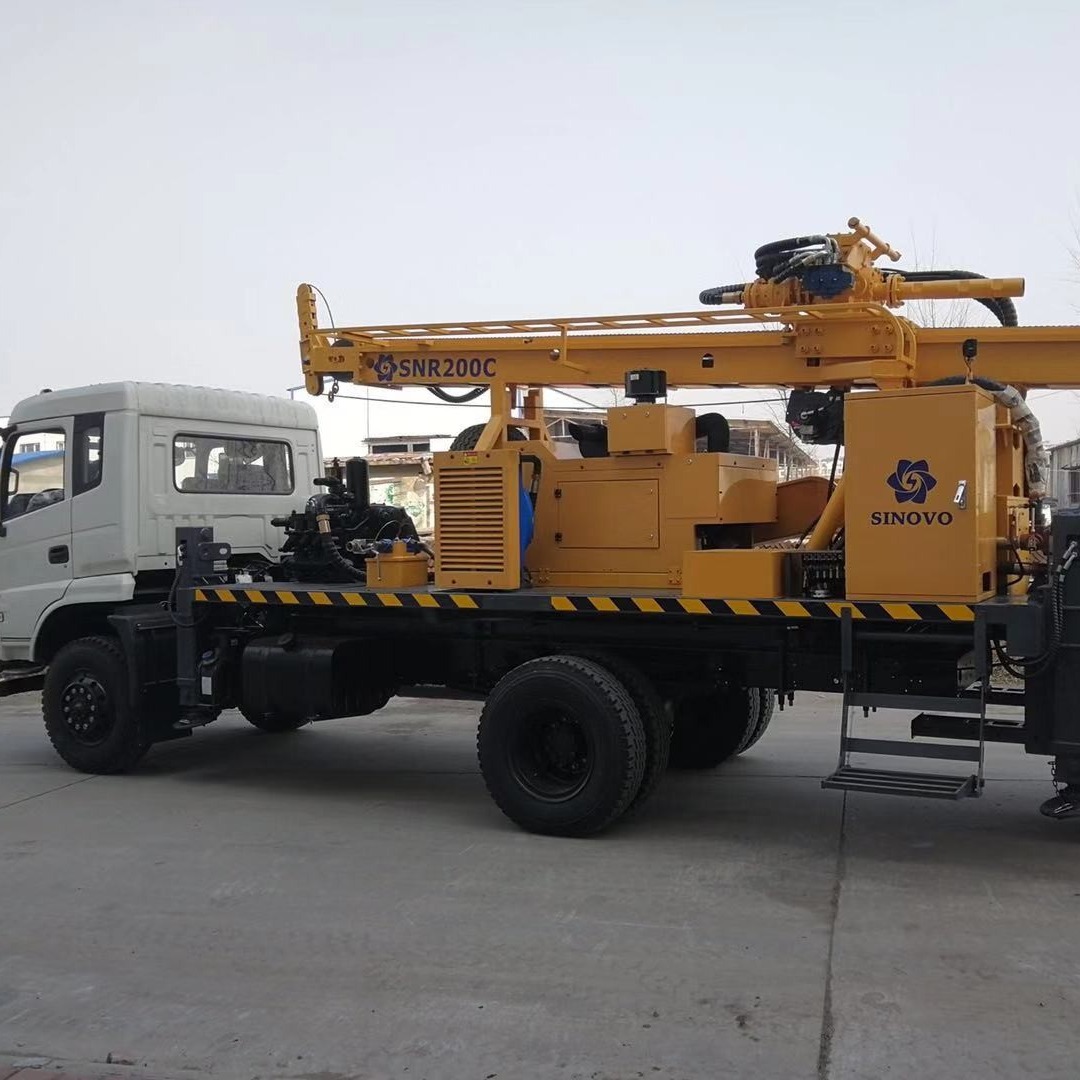

240m Depth Full Hydraulic Water well Drilling Rig SNR200C Borehole Drilling Rig 0

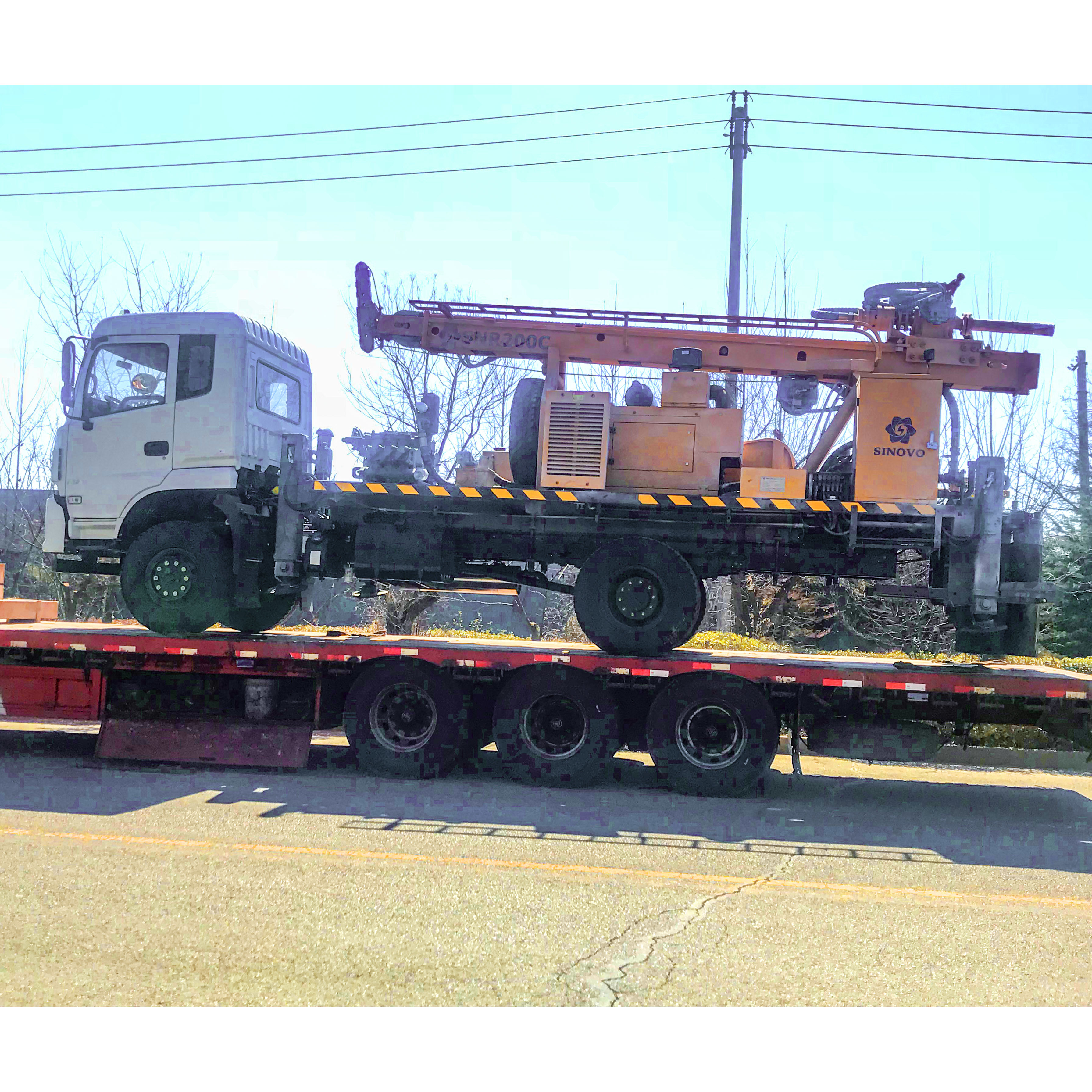

240m Depth Full Hydraulic Water well Drilling Rig SNR200C Borehole Drilling Rig 1

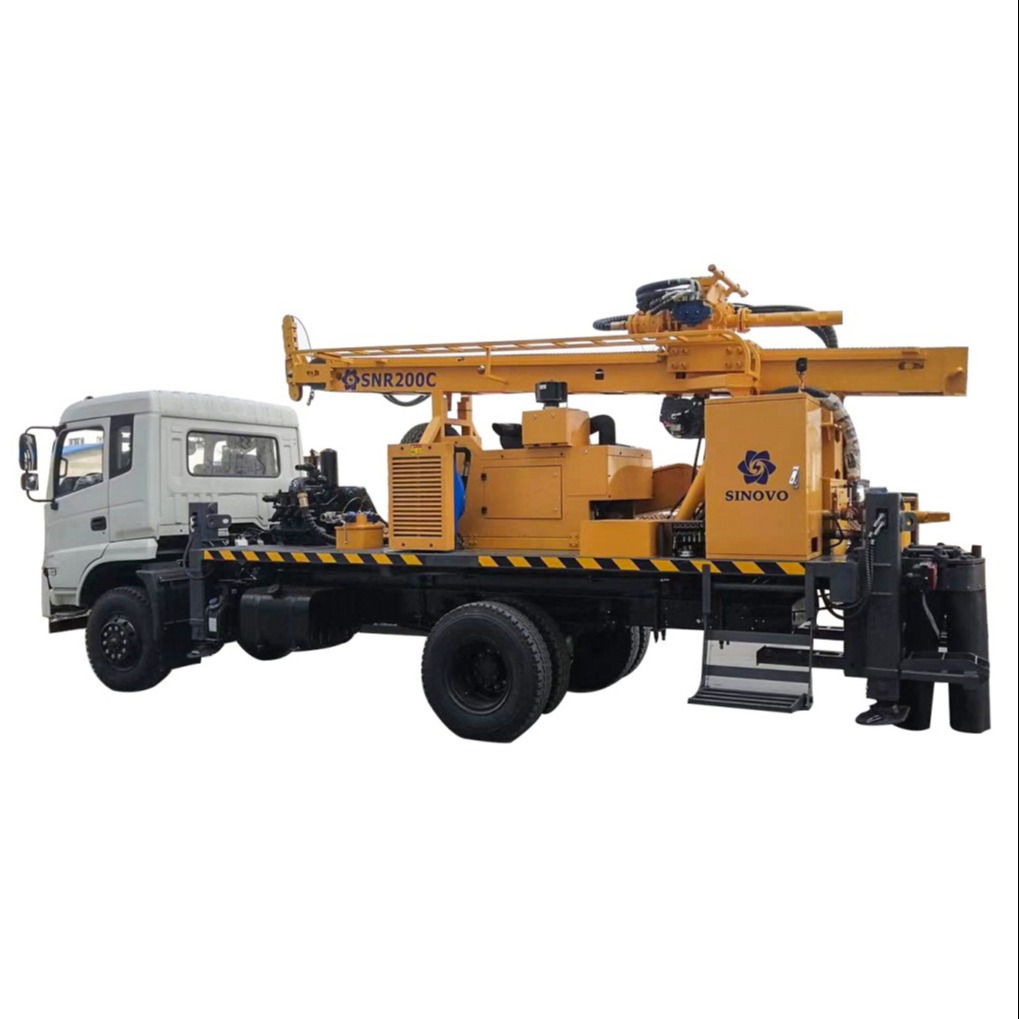

240m Depth Full Hydraulic Water well Drilling Rig SNR200C Borehole Drilling Rig 2

240m Depth Full Hydraulic Water well Drilling Rig SNR200C Borehole Drilling Rig 3

240m Depth Full Hydraulic Water well Drilling Rig SNR200C Borehole Drilling Rig 4

240m Depth Full Hydraulic Water well Drilling Rig SNR200C Borehole Drilling Rig 5

240m Depth Full Hydraulic Water well Drilling Rig SNR200C Borehole Drilling Rig 6

240m Depth Full Hydraulic Water well Drilling Rig SNR200C Borehole Drilling Rig 7
