| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SINOVO |
| Certification: | CE/GOST/ISO9001 |
| Model Number: | BW320 |
| Minimum Order Quantity: | ONE UNIT |
| Price: | Negotiation |
| Packaging Details: | International Export Carton Case Package |
| Delivery Time: | 7-10 work days |
| Payment Terms: | T/T&L/C |
| Supply Ability: | 30000 Units Per Year |
| Model: | BW320 | Cylinder Diameter: | 80mm |
|---|---|---|---|
| Stroke: | 110mm | Type: | Horizontal Three Cylinder Reciprocating Single Acting Piston Pump |
| Outlet Pipe Diameter: | 51mm | Inlet Pipe Diameter: | 76mm |
| Power: | 30Kw | Dimension: | 1905mm*1100mm*1200mm |
| High Light: | 80mm mud pump,bw320 mud pump,bw320 |
||

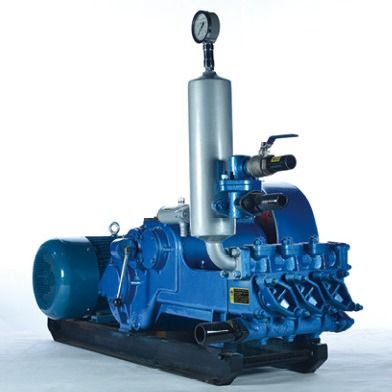

80mm BW320 Horizontal Three Cylinder Mud Pump
In order to ensure the quality of our products, our company introduces world advanced NC machining center, NC lathe and automatic NC testing center and so on.
With the advanced complete equipment and strong technology, we are capable of manufacturing quality and durable " SINOVO" brand mud pumps and mortar pumps.
Technical specifications of BW320 horizontal three cylinder mud pump
Horizontal three cylinder reciprocating single acting piston pump:
| Type | Horizontal three cylinder reciprocating single acting piston pump | |||
| Cylinder diameter | 80mm | |||
| Stroke | 110mm | |||
| Pump speed(次/min) | 214 | 153 | 109 | 78 |
| Flow(L/min) | 320 | 230 | 165 | 118 |
| Pressure(Mpa) | 2.2 | 3.6 | 6.2 | 10 |
| Outlet pipe diameter | 51mm | |||
| Inlet pipe diameter | 76mm | |||
| Power | 30Kw | |||
| Shape size | 1905mm*1100mm*1200mm | |||
| Weight | 720Kg | |||
