SPA5 Hydranulic Concrete Breaker For Cutting Piles Cut 120 Piles/8h Break Round Pile, Pile Cutter

Basic Information
Place of Origin: China
Brand Name: SINOVO
Certification: CE/ISO
Model Number: SPA5
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Export package
Delivery Time: STOCK
Payment Terms: T/T, L/C
Supply Ability: 30 sets per month
Detail Information
Maximum Drill Rod Pressure: 485KN Maximum Strake Of Hydraulic Cylinder: 150mm
Maximum Pressure Hydraulic Cylinder: 31.5Mpa Maximum Flow Single Cylinder: 25L/min
Cut The Number Of Pile: 60/8h Height For Cut Pile Each Time: ≤300mm
High Light:

pile breaker machine

,

hydraulic pile cutter


Product Description

320KN Hydranulic Concrete BreakerFor Cutting Piles 8h Cut 120 Piles



SPA5 Hydraulic pile breaker which can break square pile (400-500mm) with 4pcs of moduel.
1.Max drill rod pressure: 485kN
2.Max cylinder stroke: 150mm
3.Max cylinder pressure: 31.5MPa
4.Max sigle cylinder flow: 25L/min
5.Quanity/8h: 60 pcs/8h
6.Single cut pile height≦300mm
7.One-piece moudule weight: 210kgs
8.One-piece moudule size: 895x715x400mm
9.Total weight: 2.5t

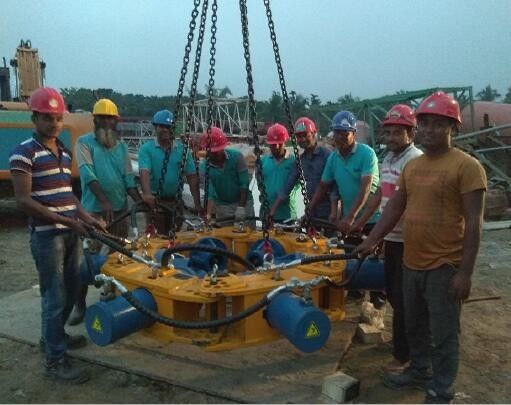

SPA5 Hydranulic Concrete Breaker For Cutting Piles Cut 120 Piles/8h Break Round Pile, Pile Cutter 0





The cylinder is installed from the structural part’s top to its end. The force goes to the whole structural parts, protect the bolt from breaking off.



The alloy bit and cylinder are connected in the middle of the alloy bit. Uniformly forced, the machine won’t be damaged during working. The material of our alloy bit is military use alloy steel, with higher strength and longer using life, it can cut 5000 nos. of piles.



Chain: Professional hoisting chain with single lifting capacity of 5t, diameter 14mm,offering high safety guarantee. Equipped with adjusting buckles, the chain’s length could be adjusted according to jobsite condition easily



Structural parts—Both the material and techniques are more matured, with high standard quality control and long service life.



The two pins are used for fixing the modules and have the limit role, which is not only instead of top metal ring frame to reduce weight of the whole machine, but also avoid the pile colliding the top metal ring frame during the pile breaking.



Model SPA5
Range of Pile diameter (mm) Ф1050-Ф1200
Maximum Drill rod pressure 485kN
Maximum stroke of hydraulic cylinder 150mm
Maximum pressure of hydraulic cylinder 31.5MPa
Maximum flow of single cylinder 25L/min
Cut the number of pile/8h 60
Height for cutting pile each time ≦ 300mm
Supporting the digging machine Tonnage (excavator)

≧ 20t



One-piece module weight 210kg
One-piece module size 895x 715 x 400mm
Work status dimensions Ф2670x 400
Total pile breaker weight 2.5t



SPA5 Hydranulic Concrete Breaker For Cutting Piles Cut 120 Piles/8h Break Round Pile, Pile Cutter 1





As a long-established drilling rig manufacturer in China, we Beijing SINOVO International Company(SINOVO Heavy Industry Co., Ltd ) do business with reputation and word of mouth. We are dedicated to provide customers perfect service. To make customers feel secure in using our products, we establish a complete after-sales service system, and provide a one-year warranty for our drilling rigs. During the warranty period, we provide free debugging, operator training and maintenance service. In addition, we also offer free spare parts. As our main components are imported from world renowned companies, our overseas customers can maintain these components easily.



SPA5 Hydranulic Concrete Breaker For Cutting Piles Cut 120 Piles/8h Break Round Pile, Pile Cutter 2

SPA5 Hydranulic Concrete Breaker For Cutting Piles Cut 120 Piles/8h Break Round Pile, Pile Cutter 3
