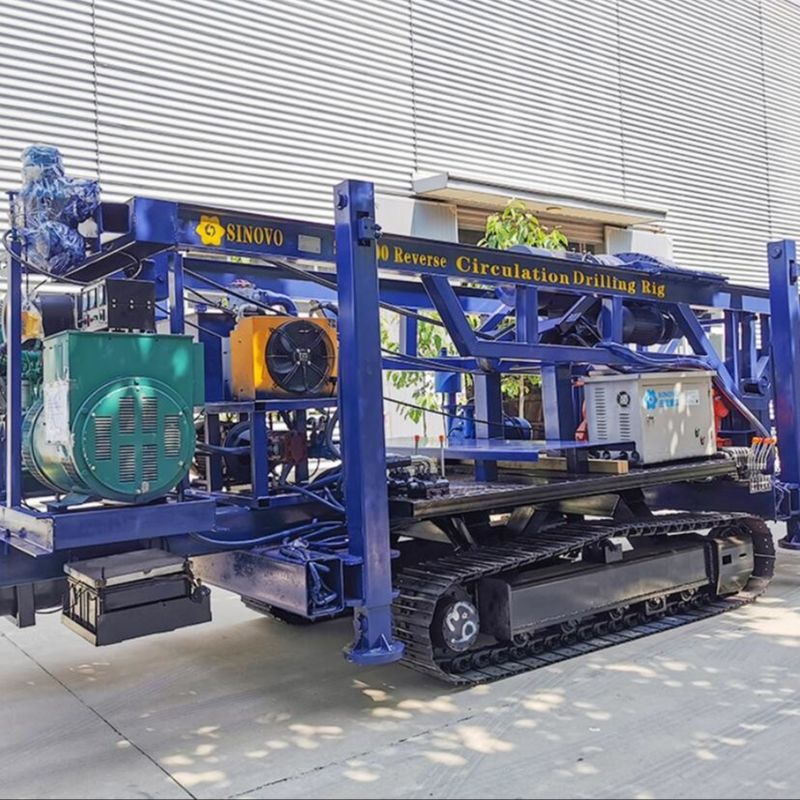

12000N.m Spindle Torque Reverse Circulation Drilling Rig for Tough Drilling Conditions

Basic Information
Brand Name: SINOVO
Model Number: SQ-200
Detail Information
Drill Hole Depth: ≤250m The Hole Diameter: 450-2000mm
Name: High Performance Reverse Circulation Drilling Rig SQ-200 Gear For Efficient Operations Keyword: Reverse Circulation Drilling Rig
High Light:

High Performance reverse circulation drilling rig


250m reverse circulation drilling rig


High Performance rc drilling machine

Product Description

SQ-200 reverse circulation drilling rig can be used for low and middle hardness formation of high-speed rail, bridge, wind power, pylons foundation work, also can be used in the water well drilling and bore pile.


Ltem   Unit Data
Drill hole depth m ≤250
The hole diameter mm 450-2000
Spindle speed r/min 11
Spindle power KW (5.5-7.5)*2
The spindle torque N.m 12000
Winch lifting force T 15
Reverse circulation pump Flow m³/h 500
Power KW 30
Generating set Rated voltage V 380
Rated current A 115
Rated speed r/min 1500
Rated power KW 64
Drill pipe mm Ф168*2000/Ф180*2000
Main power supporting power   4105-6105 diesel engine
Overall dimension mm 9000*2400*3300
Weight T 13
