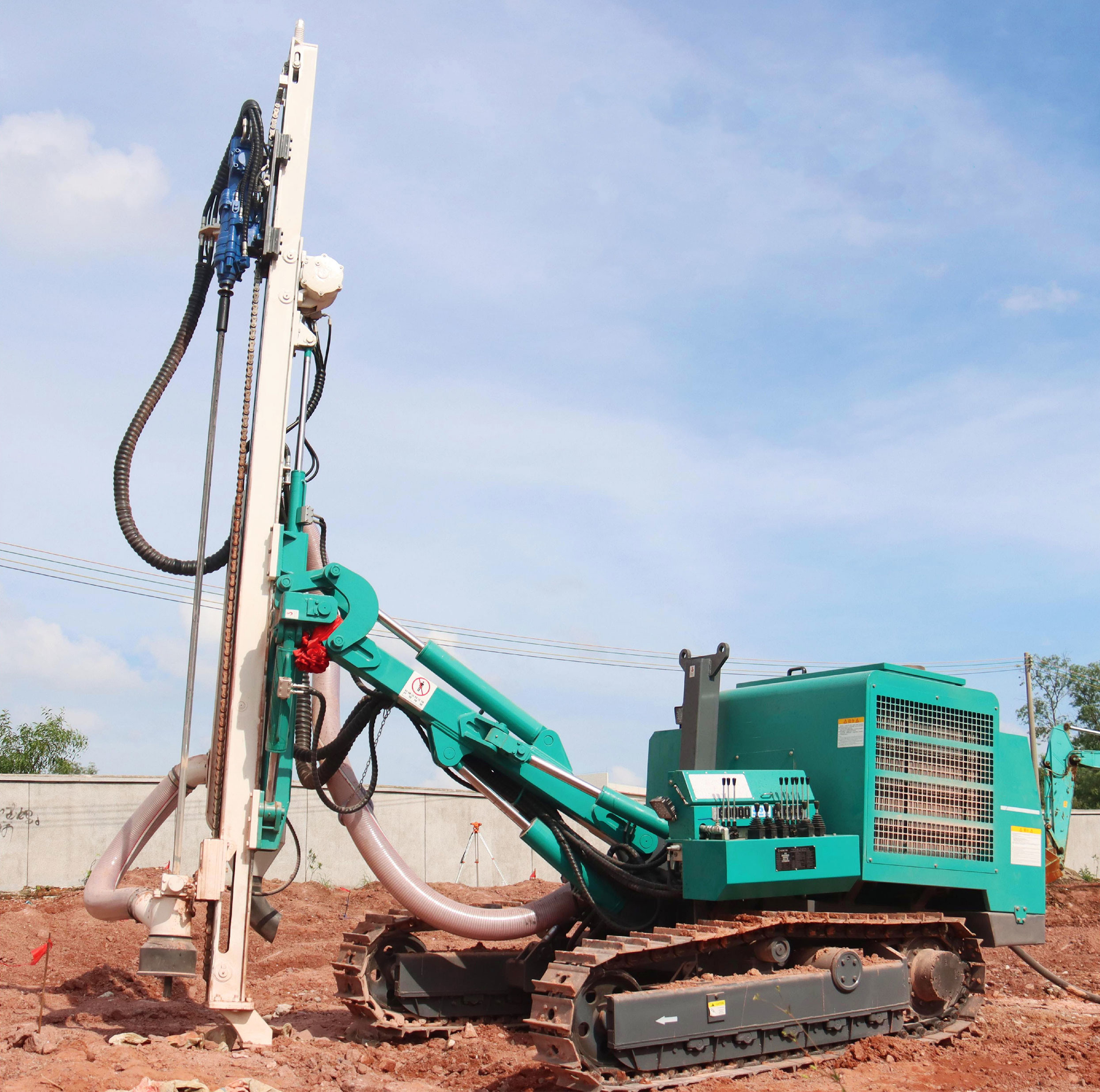

SK680 Top Hammer Drilling Rig is designed according to the needs of construction environment of front-line customers and the needs of φ50-90mm small hole diameter.The whole machine is small in size,light in weight,fast in travelling speed and strong in cross-country ability,which can replace the special working conditions that conventional drilling rigs can not operate.
It is suitable for:static explosion,small hole diameter drug explosion,such as underground mining,underground,construction pits,urban construction sites,tunnels and other environments in the rock drilling and drilling.
![]()
| Main specification as following: | |
| Hole Diameter | 50-90 mm |
| Drazing Rod Specifications | R32,T38,T45 |
| Maximum Travel Speed | 3km/h |
| Climbing Ability | 30° |
| Ground Clearance | 350mm |
| Track Pitch Angle | ±10 |
| Propulsion Beam Length | 6080mm |
| Propulsion Length | 4100mm |
| Lifting Speed | 600mm/s |
| Maximum Lifting Force | 2.4T |
| Rotation Speed | 155r/min |
| Rotation Torque | 830Nm |
| lmpact Energy | 300J |
| Engine | Yuchai Off-road National III emission standards |
| Rated Power | 92 kw |
| Fuel Tank Capacity | 90L |
| Transport dimensions (LxWxH): | 6500×2200×2600mm |
| Weight | 6T |
| Dust Collection | standard; drytyp; double stage |
| Optional | waterbome dust collection |
