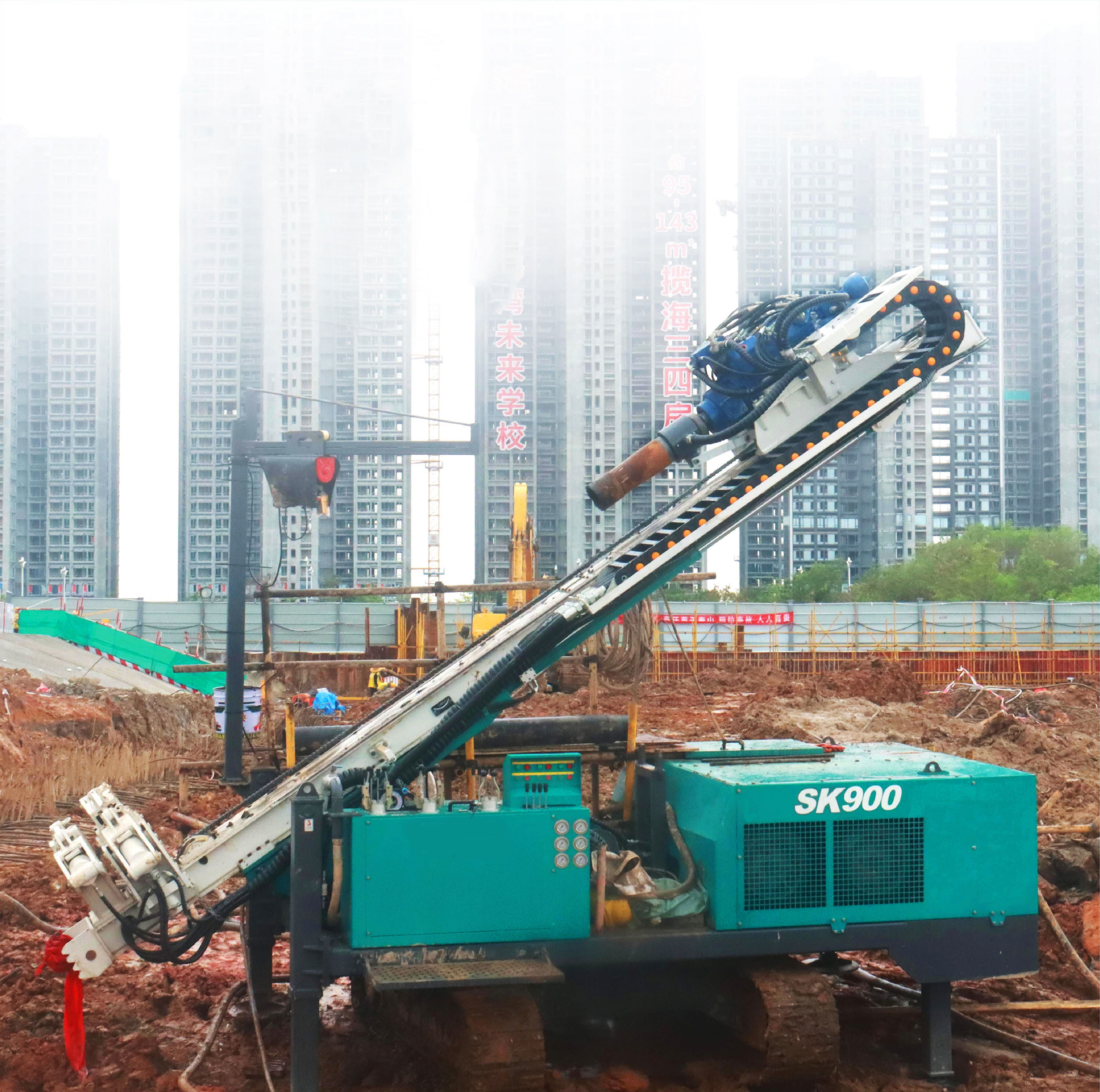

Name: SK900 Top Drive Anchor Driling Rig
Brand: Beijing Sinovo International & Sinovo Heavy Industry Co.Ltd.
SKU: SK900
Price: 78,225.00 USD
Availability: InStock

Product Description

SK900 Top Drive Anchor Driling Rig power head, adopting high power top

impact, can achieve the effect of impact drilling without the use of submerged

hammer and air compressor, with high torque, high rotation speed and

strong power. For the sand pebbles, gravel, sandy soil, sand laver and other

formations that areeasy to collapse the hole to rely on percussion drilling, to

achieve rapid driling to ensure the quality of the hole.

Model	SK900
Drilling Range	φ100-φ250mm
Maximum Borehole Depth	160m
Maximum Opening Of Rod Clamp	300mm
Rotation Speed	0-110r/min
Rotation Torque	15000Nm
Frame SwivelAngle	±179°
Frame Height From The Ground	335mm
Oil Pressure	180bar
Oil Flow	130l/min
Frequency	2500bpm
Percussion Energy	800Nm
Single Actuation Stroke	3600mm
Horizontal Bore Height	3000mm
Compensating Stroke Of The Thrust Beam	1260mm
Maximum Lifting Force	10T
Maximum Propulsion	4T
Fastest Boost Speed	23M/min
Maximum Propulsion Speed	50M/min
Overall Power(Electric)	55kw+55kw
Input Voltage	380V 50Hz
Transport dimensions (LxWxH):	6600×2200×2600mm
Weight	10T

SK900 Top Drive Anchor Driling Rig 0

SK900 Top Drive Anchor Driling Rig 1

SK900 Top Drive Anchor Driling Rig 2
