Diaphragm Wall equipment TG Series Cable- operated Grabs

China Diaphragm Wall equipment TG Series Cable- operated Grabs supplier
Diaphragm Wall equipment TG Series Cable- operated Grabs supplier Diaphragm Wall equipment TG Series Cable- operated Grabs supplier Diaphragm Wall equipment TG Series Cable- operated Grabs supplier Diaphragm Wall equipment TG Series Cable- operated Grabs supplier

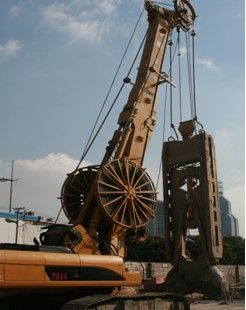

Large Image :  Diaphragm Wall equipment TG Series Cable- operated Grabs

Product Details:

Place of Origin: CHINA
Brand Name: sinovo
Certification: CE/GOST/ISO9001
Model Number: TG40

Payment & Shipping Terms:

Minimum Order Quantity: ONE UNIT
Delivery Time: ON STOCK
Payment Terms: T/T&L/C
Contact Now
Detailed Product Description



Diaphragm Wall Equipment TG40 Engine Power 261KW

 Generally there are two types of diaphragm wall grab, which are mechanical diaphragm wall grab and hydraulic diaphragm wall grab.Our diaphragm wall grabs are a kind of hydraulic diaphragm wall grab.Diaphragm walls are underground structural elements principally used for retention systems and permanent foundation walls.Our TG series hydraulic diaphragm wall grabs are ideal for pit strutting, dam anti-seepage, excavation support, dock cofferdam and foundation element, and are also suitable for the construction of square piles. It is one of the most efficient and versatile construction machines on the market. As a result of their undoubted strength, simplicity and low running cost, our TG series cable- operated grabs for diaphragm walls are widely used in the construction of foundations and trenches. Rectangular or semi- circular jaws with their relative guides are interchangeable on the actual grab body.Unloading is done by taking advantage of the grab body's weight. When released by the rope, the grab descends with considerable force, thus helping unload materials from the jaws.



TG40 Diaphragm Wall Equipment Technical parameters



Euro Standards

U.S Standards

Width of trench

800-1200mm

31-47in

Depth of trench

70m

230ft

Max. pull force

400kN

89924 lbf

Volume of grab bucker

1.1-1.7 m³

1.1-1.7 m³

Undercarriage model

CAT336D

CAT336D

Engine power

261kW

350hp

Pull force of main winch (The first layer)

200kN

44962lbf

Extendable undercarriage (mm)

800mm

32 in

Track shoe width

3000-4300mm

118-170in

System pressure

35Mpa
