SPF400B Square Concrete Pile Breaker Hydraulic With Five Patented Technologies Pile Cutter

Basic Information
Place of Origin: China
Brand Name: SINOVO
Certification: CE ISO9001
Model Number: SPF400B
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Export package
Delivery Time: 7 work days
Payment Terms: L/C, T/T
Supply Ability: 30 sets per month
Detail Information
High Light:

pile breaker machine

,

concrete pile breaker


Product Description

SPF400B Square Concrete Pile Breaker Hydraulic With Five Patented Technologies

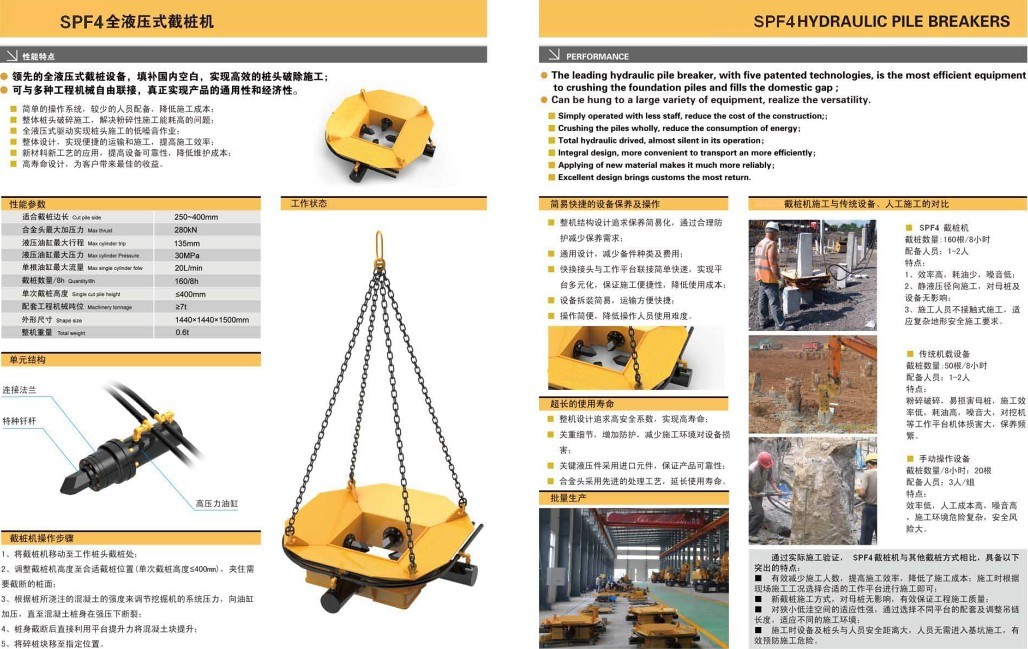

SPF4 HYDRAULIC PILE BREAKERS PERFPRMANCE

  •  The leading hydraulic pile breaker, with five patented technologies, is the most efficient equipment
  • To crushing the foundation piles and fills the domestic gap;
  •  Can be hung to a large variety of equipment, realize the versatility.
  • Simply operated with less staff,, reduce the cost of the construction;
  • Crushing the piles wholly,reduce the consumption of energy.
  • Total hydraulic drived, almost silent in its operation;
  • Integral design,more convenient to transport an more efficiently;
  • Applying of new material makes it much more reliably;
  • Excellent design brings customs the most return.

Technical Parameter

Model SPF400-B
Range of Pile diameter (mm) 300-450
Maximum Drill rod pressure 485kN
Maximum stroke of hydraulic cylinder 150mm
Maximum pressure of hydraulic cylinder 31.5MPa
Maximum flow of single cylinder 25L/min
Cut the number of pile/8h 160
Height for cutting pile each time ≦300mm
Supporting the digging machine Tonnage(excavator) ≧7t
Work status dimensions 1600X1600X2000mm
Total pile breaker weight 650kgs
