Mining Machinery Drilling Swivel With Pin Yellow Color / Wooden Case Package

China Mining Machinery Drilling Swivel With Pin Yellow Color / Wooden Case Package supplier
Mining Machinery Drilling Swivel With Pin Yellow Color / Wooden Case Package supplier Mining Machinery Drilling Swivel With Pin Yellow Color / Wooden Case Package supplier

Large Image :  Mining Machinery Drilling Swivel With Pin Yellow Color / Wooden Case Package

Product Details:

Place of Origin: CHINA
Brand Name: sinovo
Certification: CE/GOST/ISO9001
Model Number: swivel

Payment & Shipping Terms:

Minimum Order Quantity: ONE UNIT
Packaging Details: wooden case
Delivery Time: ON STOCK
Payment Terms: T/T&L/C
Contact Now
Detailed Product Description
Color: Yellow Package: Wooden Case
Delivey Time: On Stock Country Of Original: China

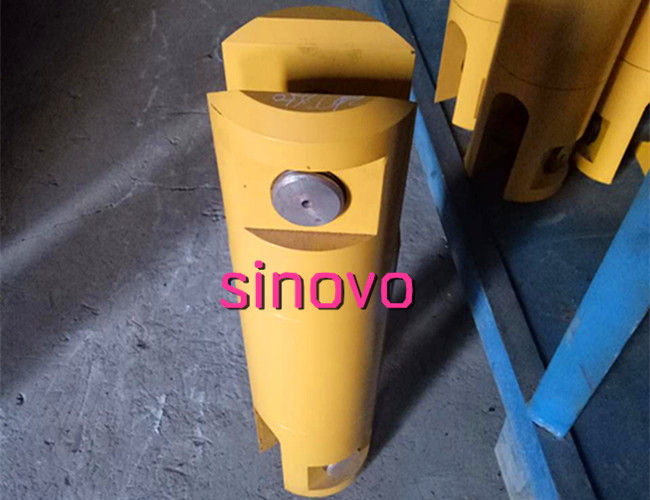

Drilling Accessories Swivel



Introduced the use of the Swivel

The swivel is also called the "rotary live", "broken", it is very important for key components of the drill pipe, drill, its top and drill the winding wire connection, the bottom and drill pipe connections, as the primary winding of wire rope, drive the rotary digging drill pipe and drill of raising and lowering, and work in the power head rotation, bit to jilt soil, bear the torque drill pipe, through its own spin, remove the wire rope for drill pipe rotation torque transmission, such as to prevent the occurrence of kink, curly, steel wire rope for torsional fracture, etc., resulting in major accidents.

So, be introduced must have enough tensile strength, and under the great tension with flexible rotation ability.



Fault diagnosis and removing



Item Fault Possible reasons eliminating measures
1 The rotation is not flexible Lack of lubricating oil Add lubricating oil
Under the joint bending plastic deformation, etc replace
Bearing damage replace
2 Unable to refill lubricants Oil plug cleaning
No grease lubricator Adding grease lubricator
Oiler damage Repair or replace the oiler
3 Grease leak Grease a thin Change of more viscous oil
Sealing ring damage replace
Seal shaft segment wear Replace the sub
4 Under the joint out Bearing damage Replace the bearing













Mining Machinery Drilling Swivel With Pin Yellow Color / Wooden Case PackageMining Machinery Drilling Swivel With Pin Yellow Color / Wooden Case PackageMining Machinery Drilling Swivel With Pin Yellow Color / Wooden Case Package

       Mining Machinery Drilling Swivel With Pin Yellow Color / Wooden Case Package

Sinovo insist on the "Integrity, Professional,Value,Innovation" as core concept,dedicated to be the world foundation construction company and provides a full range of high quality and reliable construction equipment and constructior methods.
