4.0rpm Casing Rotator For 1500mm Diameter Bored Piling

Basic Information
Place of Origin: China
Brand Name: SINOVO
Certification: CE/GOST/ISO9001
Model Number: TR1505
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: International Export Carton Case Package
Delivery Time: 7-10 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 30 set per month
Detail Information
Name: Unidrill Casing Rotator For 1500mm Diameter Bored Piling Model: TR1505
Certification: CE/GOST/ISO9001 Diameter: 800-1500mm
Rotary Torque: 1500/975/600 Instantaneous 1800 Rotary Speed: 1.6/2.46/4.0rpm
Control Mode: Wired Remote Control Engine Power: 183.9/2000Kw/rpm
Highlight:

1500mm Diameter Casing Rotator

,

Bored Piling Casing Rotator

,

4.0rpm Casing Rotator


Product Description

Unidrill Casing Rotator For 1500mm Diameter Bored Piling



The casing rotator is a new type drill with the integration of the full hydraulic power and transmission, and the combination control of machine, power and fluid. It is a new, environmentally-friendly and highly efficient drilling technology. In recent years, it is widely adopted in the projects such as the constructions of urban subway, articulation pile of deep foundation pit enclosure, clearance of waste piles ( underground obstructions ), high-speed rail, road and bridge, and urban construction piles, as well as the reinforcement of reservoir dam.

Tt's a construction equipment capable for driving, and rotating casing tube up and down.





Main Application



Make Piles / Secant Pile Wall / Barrier Clearance / Pitching of Pile.





Features



1. A full-casing piling machine.

2. 360° rotation.

3. Providing powerful torque, generally more than 1000KN· M.

4. Clamping device to clamp the casing at any position.







Technical parameters



TR1505
Working device Diameter of drill hole mm Φ800-Φ1500
Rotary torque KN.m 1500/975/600 Instantaneous 1800
Rotary speed rpm 1.6/2.46/4.0
Lower pressure of sleeve KN Max.360KN+Dead weight210KN
Pulling force of sleeve KN 2444 Instantaneous 2690
Pressure-pulling stroke mm 750
Weight ton 31+(selection and installation of track)7

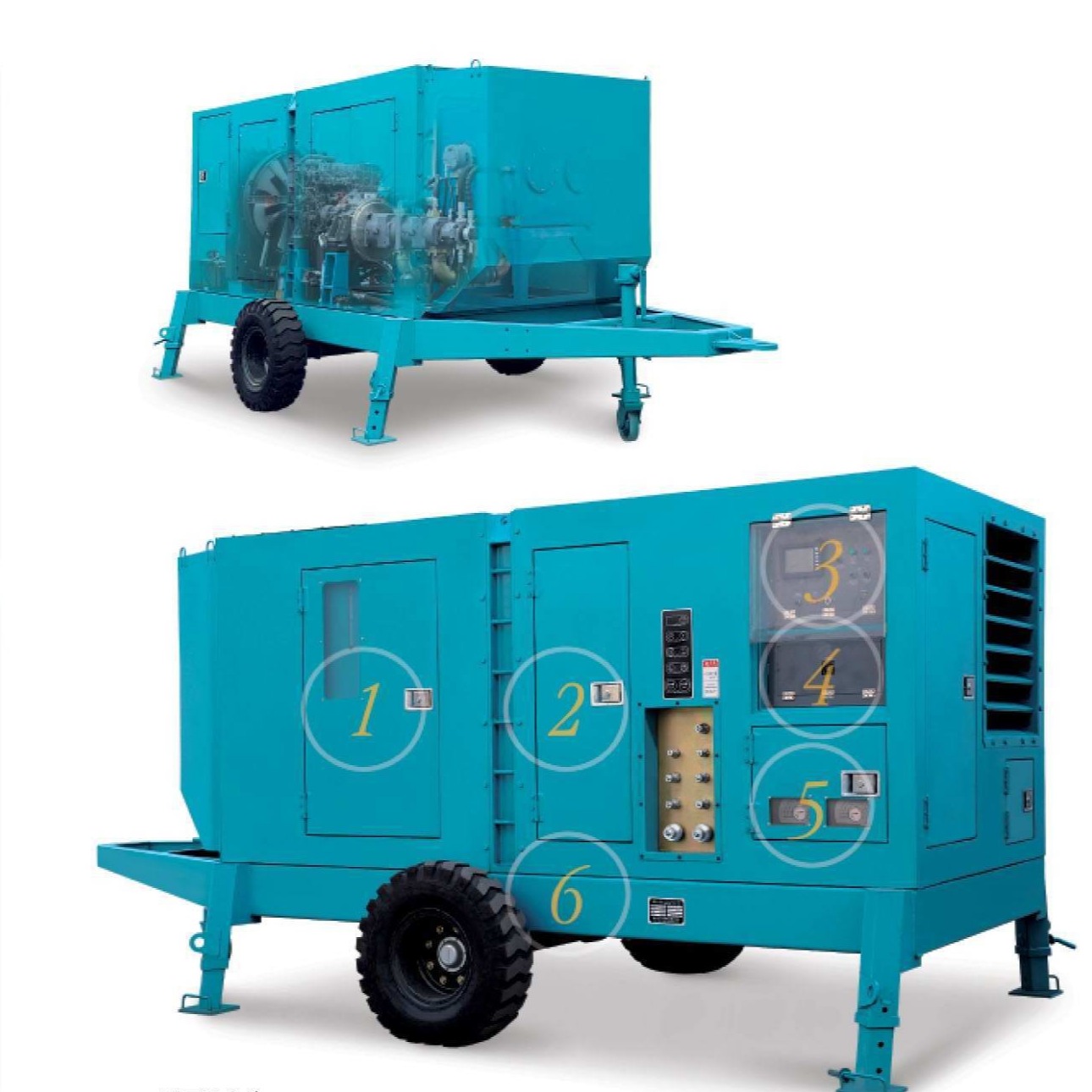

Hydraulic power station Engine model   ISUZU AA-6HK1XQP
Engine Power Kw/rpm 183.9/2000
Full consumption of engine g/kwh 226.6(when the maximum power rate)
Weight ton 7
Control mode   Wired remote control




Packaging & Delivery
Packaging Details
Standard packing or as to clients requirements
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
