Place of Origin: | China |
---|---|
Brand Name: | SINOVO |
Certification: | CE/GOST/ISO9001 |
Model Number: | TR2005H |
Minimum Order Quantity: | 1 set |
Price: | Negotiation |
Packaging Details: | International Export Carton Case Package |
Delivery Time: | 7-10 work days |
Payment Terms: | L/C, D/A, D/P, T/T |
Supply Ability: | 30 set per month |
Name: | 2000mm Casing Rotator With Full-Casing Method On Secant Pile | Model: | TR2005H |
---|---|---|---|
Certification: | CE/GOST/ISO9001 | Diameter: | 1000-2000mm |
Rotary Torque: | 2965/1752/990 Instantaneous 3391KN.m | Rotary Speed: | 1.0/1.7/2.9rpm |
Control Mode: | Wired Remote Control | Weight: | 8t |
Highlight: | 2000mm diameter casing rotator,2.9rpm casing rotator,3391KN.m casing rotator |

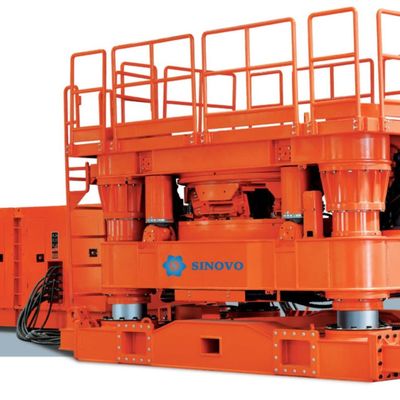

2000mm Casing Rotator With Full-Casing Method On Secant Pile
The casing rotator is a construction equipment capable for driving, and rotating casing tube up and down. is a new type drill with the integration of the full hydraulic power and transmission, and the combination control of machine, power and fluid. It is a new, environmentally-friendly and highly efficient drilling technology. In recent years, it is widely adopted in the projects such as the constructions of urban subway, articulation pile of deep foundation pit enclosure, clearance of waste piles ( underground obstructions ), high-speed rail, road and bridge, and urban construction piles, as well as the reinforcement of reservoir dam.
Main Application
Make Piles / Secant Pile Wall / Barrier Clearance / Pitching of Pile.
Features
Features:
1.Light weight, low height and low transportation cost, low requirments for crawler cranes. A minimum of 65 tons of free fall function can meet the requirements of moving and grabbing.
2.Suitable for construction of secant piles and medium depth bored piles with diameter less than 1.7m.
3. Main parts are imported , such as hydraulic pump, valve, motor, reducer etc.
4. Heavy-duty machine, can clamp up to 2.1 m diameter casing.
5. At least an 80-ton crawler crane is required.
6. Can be used for almost all construction conditions, the best selling model both at home and abroad.
7. Heavy-duty machine, can clamp up to 2.6m dia. casing.
8. At least a100-ton (120-ton for oversea countries) crawler crane is required.
9. Mainly for large dia. (2.0m or more), deep pile constr
Technical parameters
TR2005H | |||
Working device | Diameter of drill hole | mm | Φ1000-Φ2000 |
Rotary torque | KN.m | 2965/1752/990 Instantaneous 3391 | |
Rotary speed | rpm | 1.0/1.7/2.9 | |
Lower pressure of sleeve | KN | Max.600KN+Dead weight260KN | |
Pulling force of sleeve | KN | 3760 Instantaneous 4300 | |
Pressure-pulling stroke | mm | 750 | |
Weight | ton | 45+(selection and installation of track)9 | |
Hydraulic power station | Engine model | Cummins QSM11-335 | |
Engine Power | Kw/rpm | 272/1800 | |
Full consumption of engine | g/kwh | 216(when the maximum power rate) | |
Weight | ton | 8+(Walking wheels are optional) 0.3 | |
Control mode | Wired remote control |
Quantity(Sets) | 1 - 1 | >1 |
Est. Time(days) | 30 | To be negotiated |
