| Place of Origin: | China |
|---|---|
| Brand Name: | SINOVO |
| Certification: | CE/GOST/ISO9001 |
| Model Number: | SD-50 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | International Export Carton Case Package |
| Delivery Time: | 7-10 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 30 sets per month |
| Name: | Desander Machine | Model: | SD-50 |
|---|---|---|---|
| Working Capability: | 50m3/h | Cut Point: | 45μm |
| Separation Capacity: | 10-25t/h | Dimension: | 2.8x1.3x2.7m |
| Overall Power: | 17.2KW | Weight: | 2100KG |
| Highlight: | hydrocyclone desanding machine,17.2kw desanding machine,50m3/h desanding machine |
||

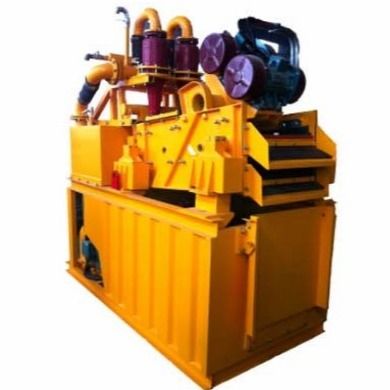

17.2kw 50m3/H Sand Washing Hydrocyclone Desander Machine
SD series desander Applications: Hydro Power, civil engineering, piling foundation D-wall, Grab, direct & reverse circulation holes piling and also used in TBM slurry recycling treatment. It can cut down construction cost, reduce environmental pollution and increase efficiency. It is one of the necessary equipment for foundation construction.
Advantages
1. The oscillating screen has many advantages such as easy operation, low trouble rate, convenient installation and maintenance
2. Slagcharge screened by advanced straight-line oscillating system is effectively dewatered
3. The adjustable vibrating force, angle and mesh size of the oscillating screen enable the equipment possess a high screening efficiency in all kind of strata.
4. The high screening efficiency of the machine can excellently support drillers raise bore and advance in different strata.
5. Energy-saving efficiency is significant since the power consumption of the oscillating motor is low.
6. The abrasion and corrosion resisting slurry pump has many advantages such as advanced centrifugal designing, optimal structure, stable operation and convenient maintenance.
7. The thick, abrasion-resisting parts and specially designed brackets enable the pump to convey corrosive and abrasive slurry with high density.
8. The specially designed automatic liquid-level balancing device can not only keep the liquid-level of the slurry reservoir stable, but also realized the reprocessing of mud, so the purification quality can be further enhanced.
Technical Parameters
| Type | Capacity ( surry) | Cut point | Separation capacity | Power | Dimension | Total weight |
| SD-50 | 50m³/h | 345u m | 10-250t/h | 17.2KW | 2.8x1.3x2.7m | 2100kg |
After Sales Service
Localized Service
Worldwide offices and agents provide localized sales and technical service.
Professional Technical Service
Professional technical team provide optimum solutions and early stage laboratory tests.
Prefect After Sales Service
Assembly, commissioning, training services by professional engineer.
Prompt Delivery
Good production capacity and spare parts stock realize fast delivery.
