CFA Piling Rig

Basic Information
Place of Origin: China
Brand Name: SINOVO
Certification: CE/ISO/SGS
Model Number: TR180W
Minimum Order Quantity: 1
Payment Terms: L/C, D/A, D/P, T/T
Detail Information
Model: TR180W Torque: 90kN.m
Max Diameter: 800mm Max Depth: 16.5m
Engine Model: CAT C-7 Weight: 55t
High Light:

CFA Piling Rig

,

CFA Drilling Equipment


Product Description

CFA drilling equipment basic information:



CFA drilling equipment can construct a continuous wall of reinforced concrete that protects workers during excavation,it based on continuous flight auger drilling technique is mainly used in construction to create concrete piles.



This drilling method enables the drilling equipment to excavate a wide variety of soils, dry or water-logged, loose or cohesive, and also to penetrate through low capacity, soft rock formation like tuff, loamy clays, limestone clays, limestone and sandstone etc.



The maximum diameter of piling reaches 1.2 m and max. depth achieves 30 m, helping overcome problems formerly connected to project and execution of pilings.





TR180W CFA Equipment - modified from TR180D Rotary Drilling Rig



CFA Summary
  Torque - KN.m - Max diameter - mm - Max depth - m -
TR180W 90kN.m 800mm 16.5m
TR220W 100kN.m 1000mm 20m
TR250W 120kN.m 1200mm 23.5m
TR280W 120 kN.m 1200mm 26m


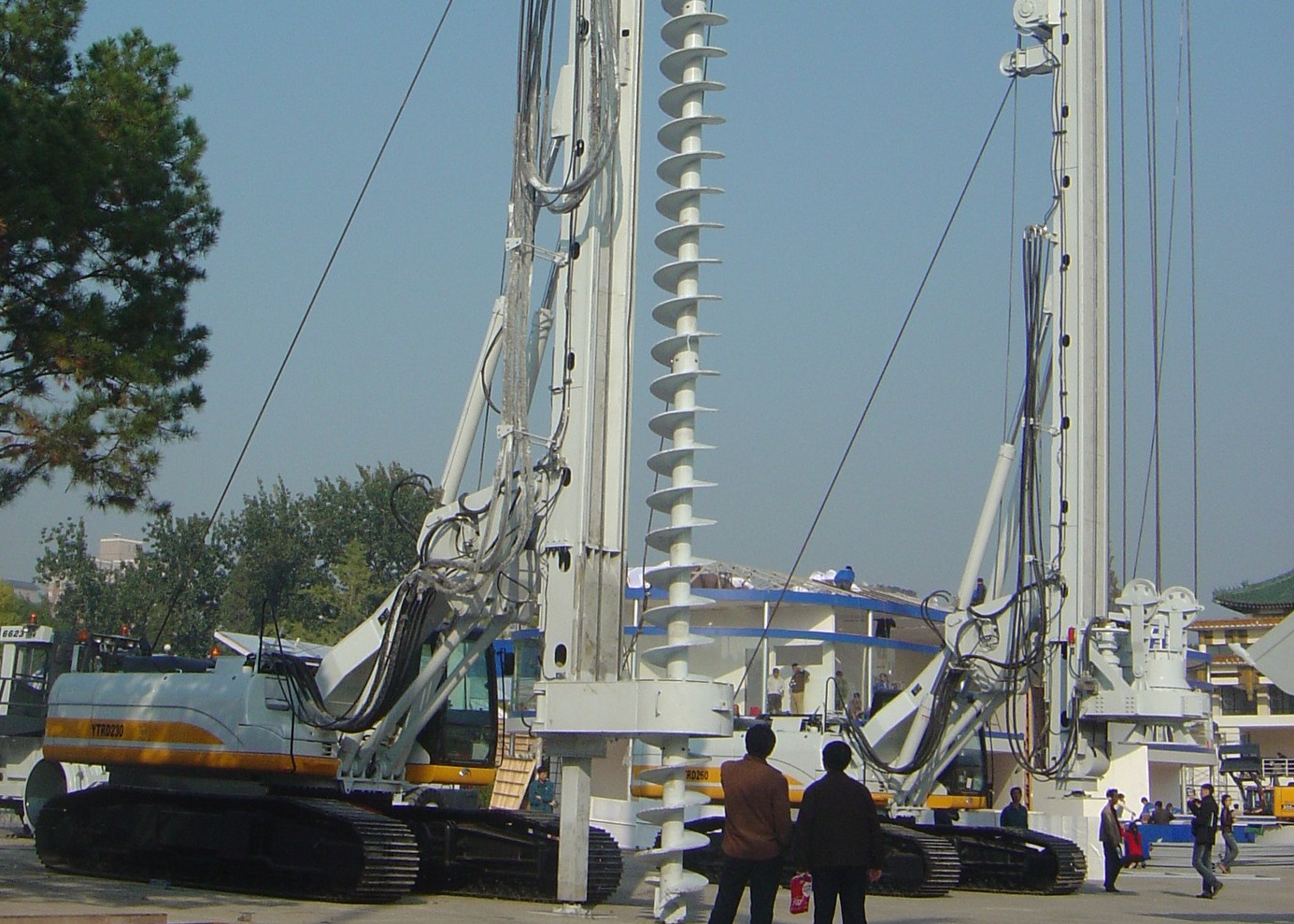

CFA Piling Rig 0

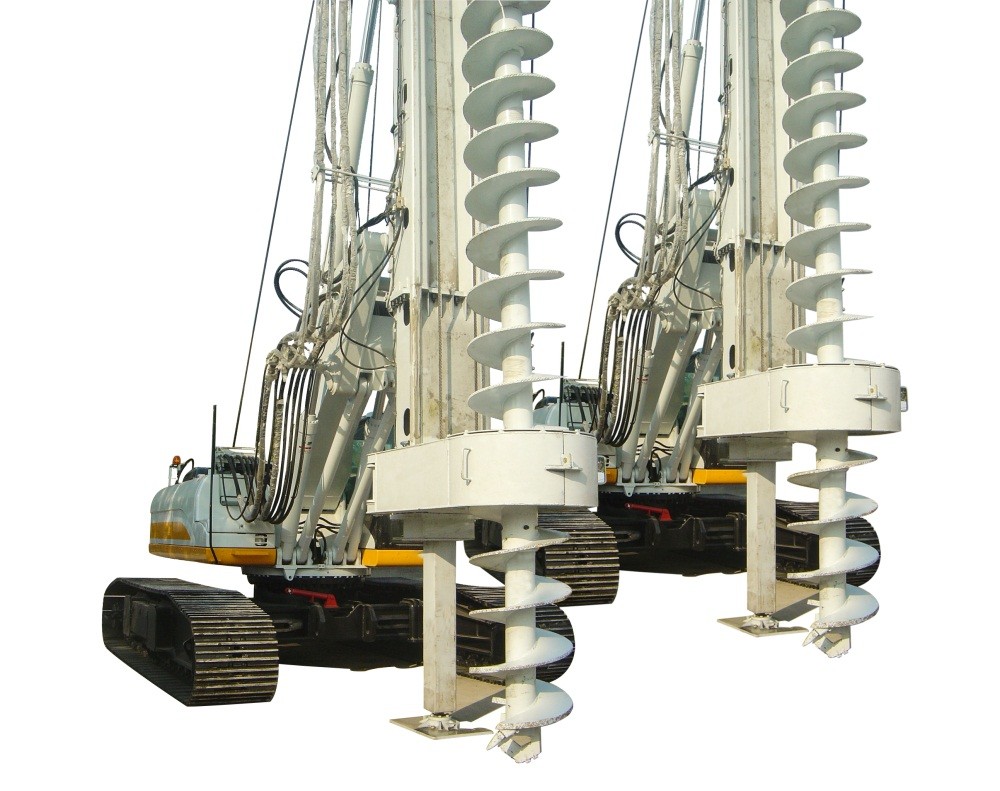

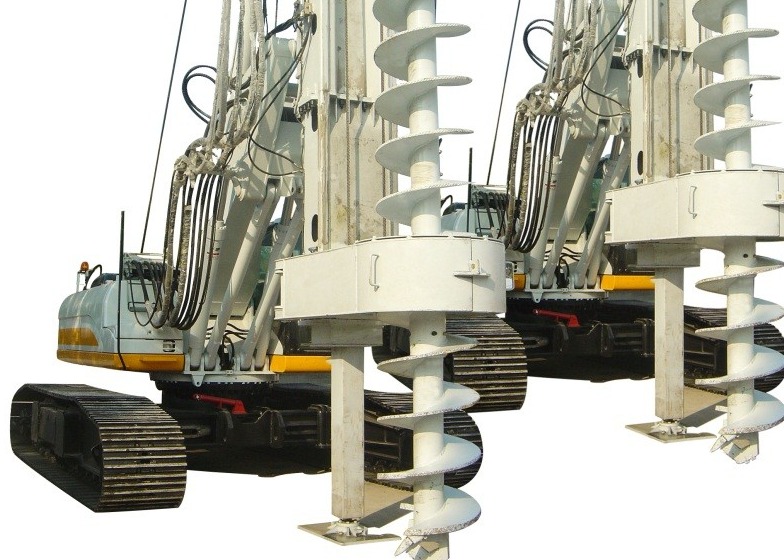

TR180w CFA Equipment



Technical Parameters
  Euro Standards U.S. Standards
Max drilling depth 16.5m 54 ft
Max drilling diameter 800mm 32in
Engine model CAT C-7 CAT C-7
Rated power 187KW 251HP
Max torque for CFA 90kN.m 66357lb-ft
Rotating speed 8~29rpm 8~29rpm
Max crowd force of winch 150kN 33720lbf
Max extraction force of winch 150kN 33720lbf
Stroke 12500mm 492in
Max pulling force of main winch (the first layer) 170kN 38216lbf
Max pulling speed of main winch 78m/min 256ft/min
Wire line of main winch Φ26mm Φ1.0in
Undercarriage CAT 325D CAT 325D
Track shoe width 800mm 32in
width of crawler 3000-4300mm 118-170in
Whole machine weight 55T 55T





Configuration--by first class key components:

Base: Original Caterpillar 325D base
Engine: C-7 engine with ACERT™ technology
Hydraulic systems adopt Rexroth motor and wave
Electric systems are from Pal-Fin auto-control
Rotary drive: Linder HMR135-02P1 Motor;
Brevini ED2250 Reducer;
Main winch: Rexroth A2FE125/61W-VZL181-K Motor;
Rexroth GFT80W3B99-35 Reducer;
