26m Depth Crawler Cfa Drilling Rig Equipment

Basic Information
Place of Origin: China
Brand Name: SINOVO
Model Number: TR280W
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: International Export Carton Case Package
Delivery Time: 7-10 work days
Payment Terms: L/C, D/A
Supply Ability: 30 set per month
Detail Information
Certification: CE/GOST/ISO9001 Name: CFA Drilling Equipment
Type: Rotary Drilling Rig Power Type: Diesel
Applicable Industries: Pile Foundation Equipment Max Drilling Depth: 26m
Max Drilling Diameter: 1200mm Whole Machine Weight: 78t
High Light:

26m Cfa Drilling Rig


Crawler Cfa Drilling Rig


cfa drilling equipment

Product Description

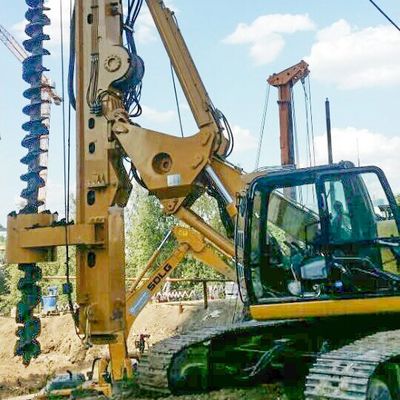

26m Depth 1200 Dia Crawler CFA Drilling Equipment


Our CFA drilling equipment based on continuous flight auger drilling technique is mainly used in construction to create concrete piles.The maximum diameter of piling reaches 1.2 m and max. depth achieves 30 m, helping overcome problems formerly connected to project and execution of pilings.





1. imported genuine cummins turbo-supercharged engine, high power, reliable performance and unique speed droop design, saving more fuel.

2. special telescopic rotary excavating undercarriage, equipped with double-box type derricking machanism, easy for transportation and adjustment, enabling excellent operation stability and reliability.

3. imported Kawasaki hydraulic components, reasonable power system matching and high construction efficiency.

4. With the single rope main winch, it efficiently solves the problemof wire rope wear, and improves the service life of wire rope.
a detectiondevice of drilling depth on the main winch, and single rope makes deepinspection more accuracy.
5. The design of whole machine meets the requirements of the CEdirective, that guarantees safety, and construction safer.
6. Configure centralized lubrication system, which makes maintenancemore convenient.
7. Selection of a variety of specifications for -bar, meeting the efficient construction ofdifferent strata.



Technical parameters:


  Euro Standards U.S. Standards
Max drilling depth 26m 85 ft
Max drilling diameter 1200mm 47in
Engine model CAT C-9 CAT C-9
Rated power 261KW 350HP
Max torque for CFA 120kN.m 88476lb-ft
Rotating speed 6~23rpm 6~23rpm
Max crowd force of winch 280kN 62944lbf
Max extraction force of winch 280kN 62944lbf
Stroke 14500mm 571in
Max pulling force of main winch (the first layer) 240kN 53952lbf
Max pulling speed of main winch 63m/min 207ft/min
Wire line of main winch Φ30mm Φ1.2in
Undercarriage CAT 336D CAT 336D
Track shoe width 800mm 32in
width of crawler 3000-4300mm 118-170in
Whole machine weight 78T 78T



Packaging & Delivery
Packaging Details
Nude Package
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 14 To be negotiated
