| Place of Origin: | China |
|---|---|
| Brand Name: | SINOVO |
| Certification: | CE/GOST/ISO9001 |
| Model Number: | TR220W |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Export Package |
| Delivery Time: | ON STOCK |
| Payment Terms: | T/T&L/C |
| Application: | CFA Pile, Bored Pile, Foundation Project | Undercarriage: | Original CAT Base Or Doosan Base |
|---|---|---|---|
| Drill Accessories: | Kelly Bar, CFA Tools, DW Casing | Hydraulic System:: | Rexroth And CAT |
| Core Components: | PLC, Engine, Pump | Warranty: | 12month Or One Year |
| High Light: | oil drilling equipment,drilling equipment |
||
|

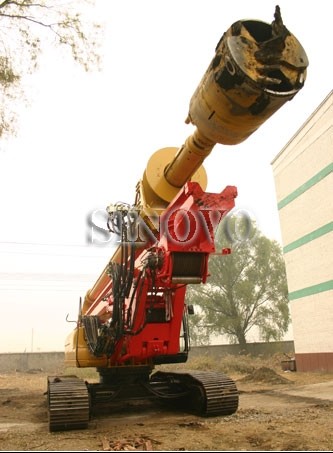

TYPE |
TR220W |
|
Drilling torque max |
220KNm/100KNm(CFA) |
|
Drilling speed |
6-27rpm |
|
Max pull-down piston push |
210KN |
|
Max pull-down piston pull |
210KN |
|
Pull down piston stroke |
No |
|
Pull down winch stroke for CFA |
13500mm |
|
Mast side raking maximum |
±5o |
|
Mast forward |
5o |
|
The model of the engine |
C9 |
|
Installed power |
213Kw |
|
Main Winch pulling force(the first layer) |
200KN |
|
Main rope diameter |
28mm |
|
Main winch pulling speed |
78M/min |
|
Auxiliary Winch pulling force(the first layer) |
110KN |
|
Auxiliary rope diameter |
20mm |
|
Auxiliary winch pulling speed |
68M/min |
|
Drilling depth maximum |
60M |
|
Drilling depth maximum for CFA |
20M |
|
Drilling diameter maximum |
2000mm |
|
Track shoe width |
800mm |
|
Overall width in drilling position |
4300mm |
|
Overall width in transport position |
3000mm |
|
Overall height in transport position |
3475mm |
|
Overall height in drilling position |
21095mm |
|
Overall height in drilling position CFA |
20500mm |
|
Traction force |
510KN |
|
Base type |
CAT330D |
|
Weight with standard drilling bar |
65T |
