| Place of Origin: | China |
|---|---|
| Brand Name: | Sinovo |
| Certification: | CE/ISO |
| Model Number: | CFA |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Export package |
| Delivery Time: | 7-15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30 sets per month |
| Name Of Accessories: | Core Berral Seruse | Name Of Accessor: | Interlocking Kelly Bar |
|---|---|---|---|
| Name: | Continuous Flight Auger Drilling Rig Accessories | Certification: | ISO9001 |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Type: | Drill Rod |
| High Light: | cfa machine,drilling equipment |
||

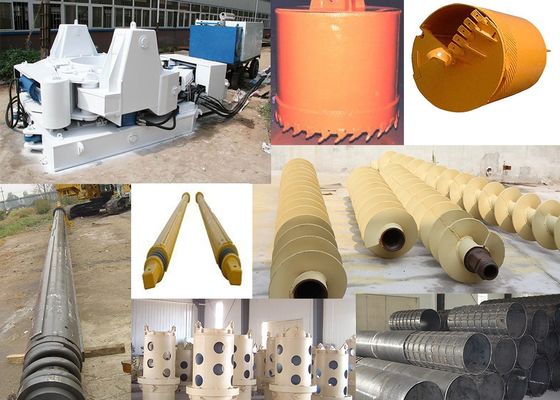

Accessories-Drill Rod
Interlocking Kelly bar
Interlocking Kelly bar is located at the upper end of the drill string. It can be divided into square and hexagonal. In well drilling, when drilling, the Kelly is matched with the square bushing and bushing to transmit the ground torque to the drill pipe to drive the bit to rotate and bear the weight of the hanging weight of the drill string. In the drilling of turbine and screw, it bears the weight and counter torque of drill string.
The main function of Kelly is to change the rotation of rotary table into the rotation of the whole drill string and bit, so as to break the formation, that is, to transfer torque and bear the whole weight of drill string
Drilling Buckets Series:
1. Double-bottom Double-open Weathering Resistance Drilling Bucket
| Diameter (mm) |
Connection | Bucket height (mm) |
Bucket wall thickness(mm) | Base plate thickness(mm) | Cutting plate thickness(mm) | Teeth quantity | Weight |
| φ600 | Bauer | 1200 | 16 | 40 | 50 | 4 | 846 |
| φ800 | Bauer | 1200 | 16 | 40 | 50 | 6 | 1124 |
| φ1000 | Bauer | 1200 | 16 | 40 | 50 | 8 | 1344 |
| φ1200 | Bauer | 1200 | 16 | 40 | 50 | 10 | 1726 |
| φ1500 | Bauer | 1200 | 16 | 40 | 50 | 12 | 2252 |
| φ1800 | Bauer | 1000 | 16 | 50 | 50 | 15 | 3056 |
| φ2000 | Bauer | 800 | 20 | 50 | 50 | 18 | 3871 |
| φ2200 | Bauer | 800 | 20 | 50 | 50 | 20 | 4700 |
| φ2500 | Bauer | 800 | 20 | 40(box type) | 40(box type) | 23 | 6112 |
2. Double-bottom Double-open Hard Soil Drilling Bucket
| Diameter (mm) |
Connection | Bucket height (mm) |
Bucket wall thickness(mm) | Base plate thickness(mm) | Cutting plate thickness(mm) | Teeth quantity | Weight |
| φ600 | Bauer | 1200 | 16 | 40 | 50 | 6 | 825 |
| φ800 | Bauer | 1200 | 16 | 40 | 50 | 8 | 1095 |
| φ1000 | Bauer | 1200 | 16 | 40 | 50 | 10 | 1302 |
| φ1200 | Bauer | 1200 | 16 | 40 | 50 | 12 | 1668 |
| φ1500 | Bauer | 1200 | 16 | 40 | 50 | 15 | 2175 |
| φ1800 | Bauer | 1000 | 16 | 50 | 50 | 18 | 2900 |
| φ2000 | Bauer | 800 | 20 | 50 | 50 | 20 | 3680 |
| φ2200 | Bauer | 800 | 20 | 50 | 50 | 22 | 4490 |
| φ2500 | Bauer | 800 | 20 | 40(box type) | 40(box type) | 25 | 5870 |
3. Double-bottom Double-open Soil Layer Drilling Bucket
| Diameter (mm) |
Connection | Bucket height (mm) |
Bucket wall thickness(mm) | Base plate thickness(mm) | Cutting plate thickness(mm) | Teeth quantity | Weight |
| φ600 | Bauer | 1200 | 16 | 40 | 50 | 2 | 747 |
| φ800 | Bauer | 1200 | 16 | 40 | 50 | 4 | 995 |
| φ1000 | Bauer | 1200 | 16 | 40 | 50 | 6 | 1180 |
| φ1200 | Bauer | 1200 | 16 | 40 | 50 | 7 | 1535 |
| φ1500 | Bauer | 1200 | 16 | 40 | 50 | 9 | 2027 |
| φ1800 | Bauer | 1000 | 16 | 50 | 50 | 12 | 2796 |
| φ2000 | Bauer | 800 | 20 | 50 | 50 | 12 | 3560 |
| φ2200 | Bauer | 800 | 20 | 50 | 50 | 14 | 4360 |
| φ2500 | Bauer | 800 | 20 | 40(box type) | 40(box type) | 16 | 5730 |
4. Double-bottom Single-open Hole Cleaning Drilling Bucket
| Diameter (mm) |
Connection | Bucket height (mm) |
Bucket wall thickness(mm) | Base plate thickness(mm) | Cutting plate thickness(mm) | Weight |
| φ600 | Bauer | 1200 | 16 | 40 | 50 | 719 |
| φ800 | Bauer | 1200 | 16 | 40 | 50 | 984 |
| φ1000 | Bauer | 1200 | 16 | 40 | 50 | 1189 |
| φ1200 | Bauer | 1200 | 16 | 40 | 50 | 1557 |
| φ1500 | Bauer | 1200 | 16 | 40 | 50 | 2103 |
| φ1800 | Bauer | 1000 | 16 | 50 | 50 | 2856 |
| φ2000 | Bauer | 800 | 20 | 50 | 50 | 3618 |
| φ2200 | Bauer | 800 | 20 | 50 | 50 | 4661 |
| φ2500 | Bauer | 800 | 20 | 40(box type) | 40(box type) | 5749 |
5. Single-bottom Single-open Soil Drilling Bucket
| Diameter (mm) |
Connection | Bucket height (mm) |
Bucket wall thickness(mm) | Cutting plate thickness(mm) | Teeth quantity | Weight |
| φ600 | Bauer | 1200 | 16 | 50 | 2 | 700 |
| φ800 | Bauer | 1200 | 16 | 50 | 4 | 895 |
| φ1000 | Bauer | 1200 | 16 | 50 | 6 | 1087 |
| φ1200 | Bauer | 1200 | 16 | 50 | 7 | 1403 |
| φ1500 | Bauer | 1200 | 16 | 50 | 9 | 1855 |
| φ1800 | Bauer | 1000 | 16 | 50 | 12 | 2385 |
| φ2000 | Bauer | 800 | 20 | 50 | 12 | 2800 |
| φ2200 | Bauer | 800 | 20 | 50 | 14 | 2840 |
| φ2500 | Bauer | 800 | 20 | 50 | 16 | 4770 |
6. Single-bottom Pot Drilling Bucket
| Diameter (mm) |
Connection | Bucket height (mm) |
Bucket wall thickness(mm) | Base plate thickness(mm) | Teeth quantity | Weight |
| φ600 | Bauer | 1200 | 16 | 30 | 2 | 580 |
| φ800 | Bauer | 1200 | 16 | 30 | 4 | 882 |
| φ1000 | Bauer | 1200 | 16 | 30 | 6 | 1040 |
| φ1200 | Bauer | 1200 | 16 | 30 | 7 | 1187 |
| φ1500 | Bauer | 1200 | 16 | 30 | 9 | 1275 |
7. Two-petal Soil Drilling Bucket
| Drill Specification | Connection | Straight Tube Diameter | Gear Diameter | Teeth Quantity | Weight |
| BS600 | Bauer | 520 | 600 | 4 | 819 |
| BS800 | Bauer | 680 | 800 | 6 | 1165.5 |
| BS1000 | Bauer | 860 | 1000 | 8 | 1480.5 |
| BS1200 | Bauer | 1060 | 1200 | 10 | 2047.5 |
| BS1500 | Bauer | 1360 | 15000 | 12 | 2866.5 |
Auger Series
| Euro Standards | American Standards | |
| Dimension | 400-3500 mm | 15.7-138 inch |
Casing Series
| Euro Standards | American Standards | |
| Dimension | 400-3500 mm | 15.7-138 inch |
Core Berral Seruse
| Euro Standards | American Standards | |
| Dimension | 400-3500 mm | 15.7-138 inch |
