Foundation Pile Drilling Diameter 800mm CFA Equipment

Basic Information
Place of Origin: China
Brand Name: SINOVO
Certification: CE/ISO/SGS
Model Number: TR180W
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: 7-10 work days
Payment Terms: L/C, D/A, D/P, Western Union, MoneyGram, T/T
Supply Ability: 30 set per month
Detail Information
Model NO.: TR180W Max Drilling Diameter: 800mm
Service: CAT Global Service Usage: Foundation Pile
Power Type: Diesel Specification: CE, SGS, ISO
Rated Power: 187kw Max Drilling Depth: 16.5m
High Light:

cfa machine


drilling equipment

Product Description



CFA Equipment

Basic Information:

CFA drilling equipment based on continuous flight auger drilling technique is mainly used in construction to create concrete piles.

It can construct a continuous wall of reinforced concrete that protects workers during excavation.

CFA piles continue the advantages of the driven piles and the bored piles, which are versatile and require no removal of soil.

This drilling method enables the drilling equipment to excavate a wide variety of soils, dry or water-logged, loose or cohesive, and also to penetrate through low capacity, soft rock formation like tuff, loamy clays, limestone clays, limestone and sandstone etc, The maximum diameter of piling reaches 1.2 m and max. depth achieves 30 m, helping overcome problems formerly connected to project and execution of pilings.

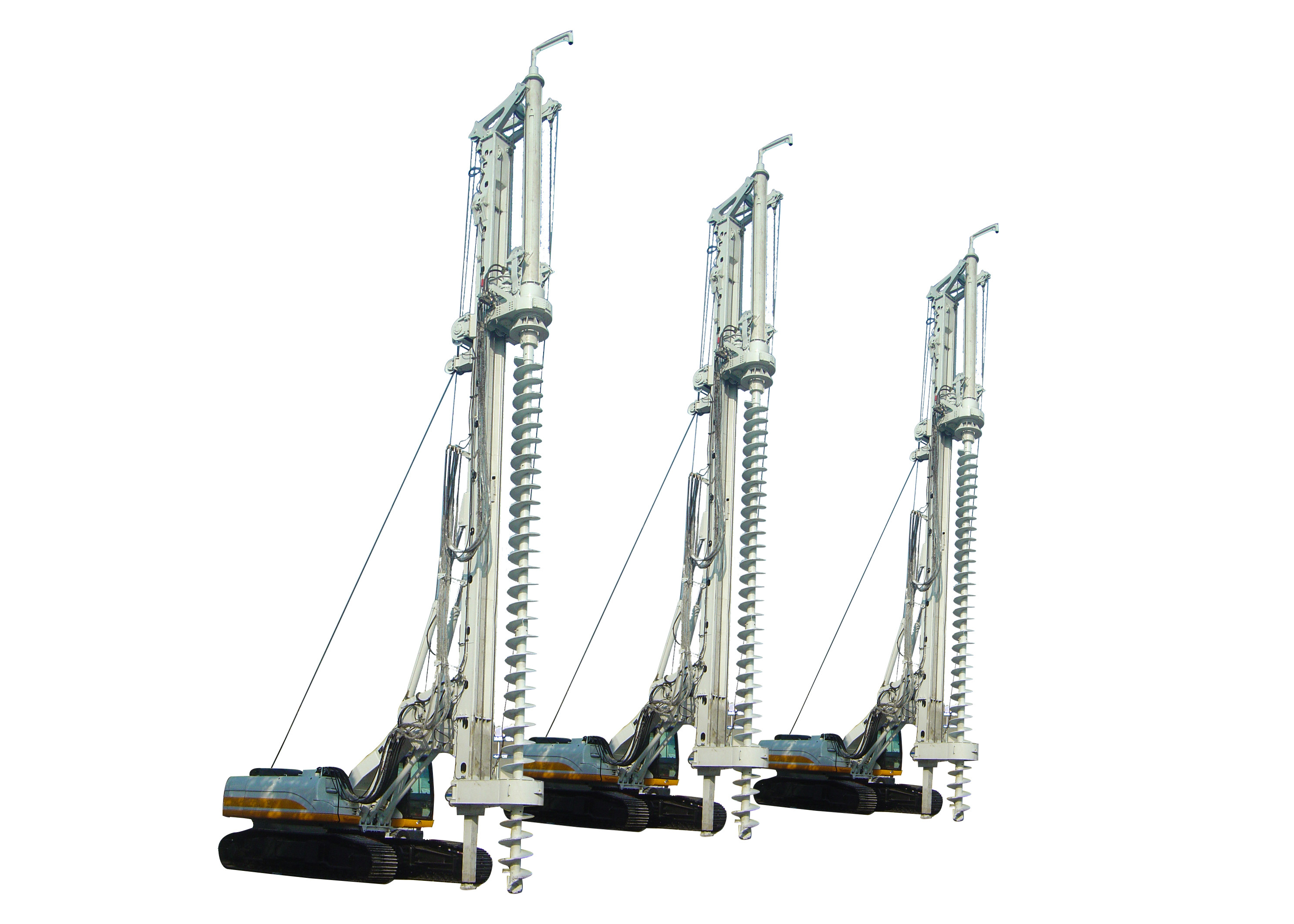

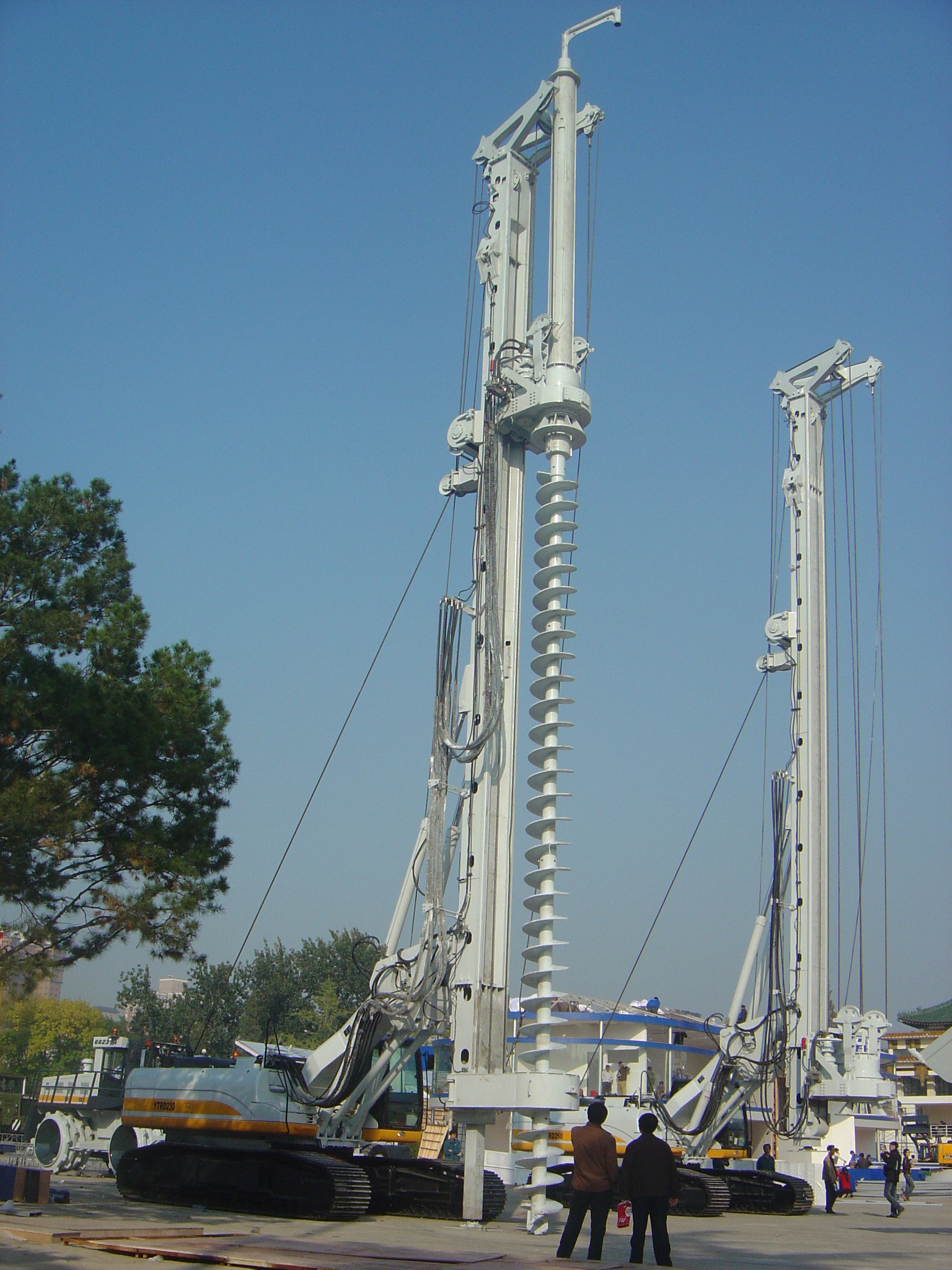

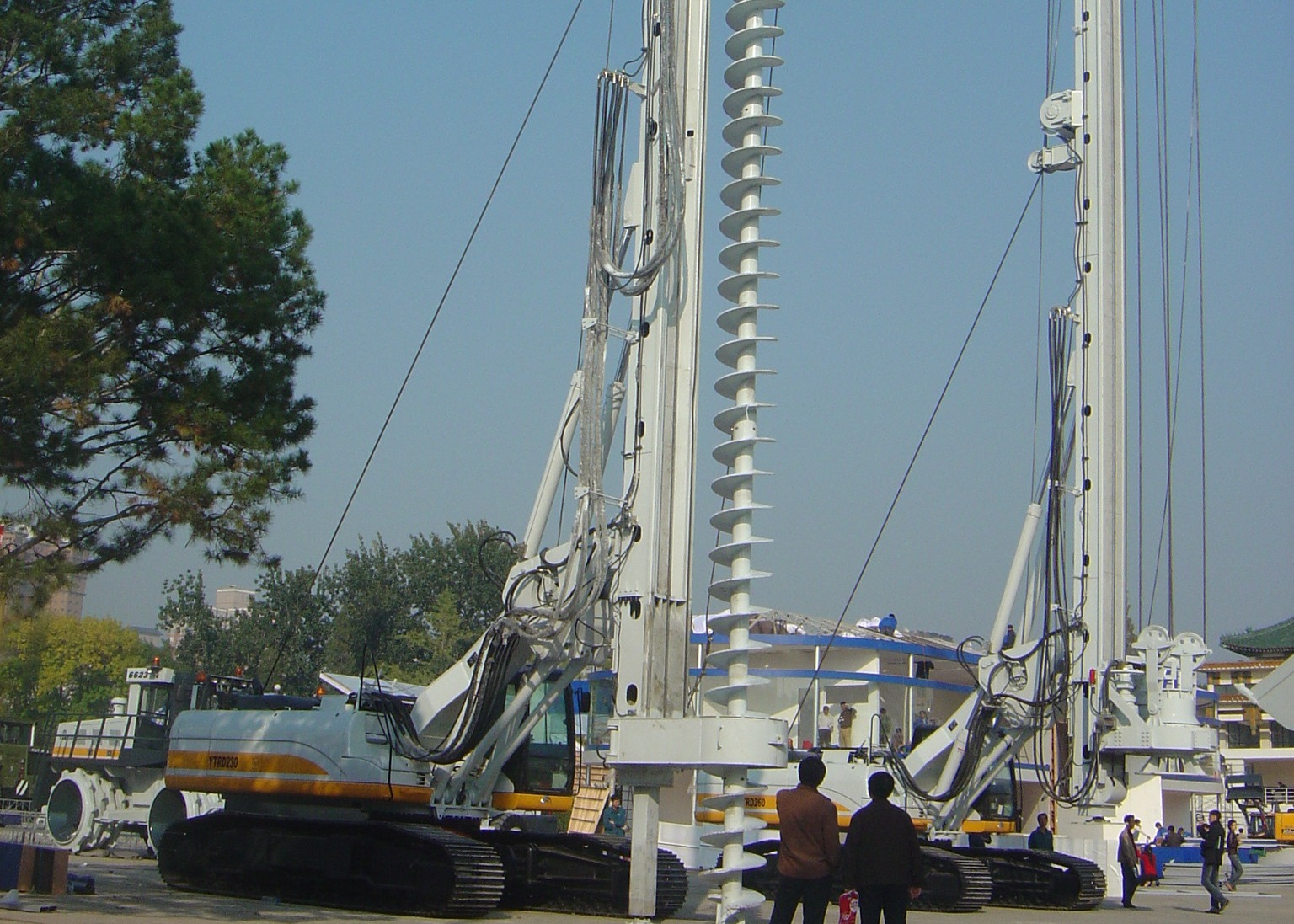

TR180W CFA Equipment - modified from TR180D Rotary Drilling Rig


Technical Parameters
  Euro Standards U.S. Standards
Max drilling depth 16.5m 54 ft
Max drilling diameter 800mm 32in
Engine model CAT C-7 CAT C-7
Rated power 187KW 251HP
Max torque for CFA 90kN.m 66357lb-ft
Rotating speed 8~29rpm 8~29rpm
Max crowd force of winch 150kN 33720lbf
Max extraction force of winch 150kN 33720lbf
Stroke 12500mm 492in
Max pulling force of main winch (the first layer) 170kN 38216lbf
Max pulling speed of main winch 78m/min 256ft/min
Wire line of main winch Φ26mm Φ1.0in
Undercarriage CAT 325D CAT 325D
Track shoe width 800mm 32in
width of crawler 3000-4300mm 118-170in
Whole machine weight 55T 55T

Foundation Pile Drilling Diameter 800mm CFA Equipment 0
Configuration(by first class key components)
Base: Original Caterpillar 325D base
Engine: C-7 engine with ACERT™ technology
Hydraulic systems adopt Rexroth motor and wave
Electric systems are from Pal-Fin auto-control
Rotary drive: Linder HMR135-02P1 Motor;Brevini ED2250 Reducer
Main winch: Rexroth A2FE125/61W-VZL181-K Motor;;Rexroth GFT80W3B99-35 Reducer
