| Place of Origin: | China |
|---|---|
| Brand Name: | SINOVO |
| Certification: | CE/GOST/ISO9001 |
| Model Number: | TR 180W |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | International Export Carton Case Package |
| Delivery Time: | 7-10 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 30 set per month |
| Name: | CFA Rotary Drilling Rig | Type: | Rotary Drilling Rig |
|---|---|---|---|
| Power Type: | Diesel | Chassis Type: | CAT |
| Max Drilling Depth: | 16.5m | Max Drilling Dia: | 800mm |
| Max Torque For CFA: | 90kN.m | Whole Machine Weight: | 55t |
| Highlight: | Hydraulic CFA Equipment,16.5m CFA Equipment,CAT Chassis CFA Equipment |
||

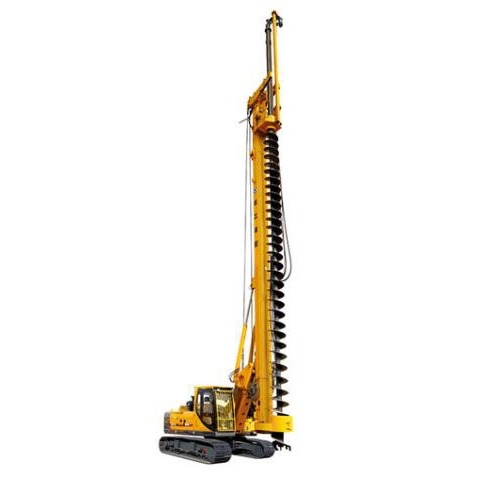

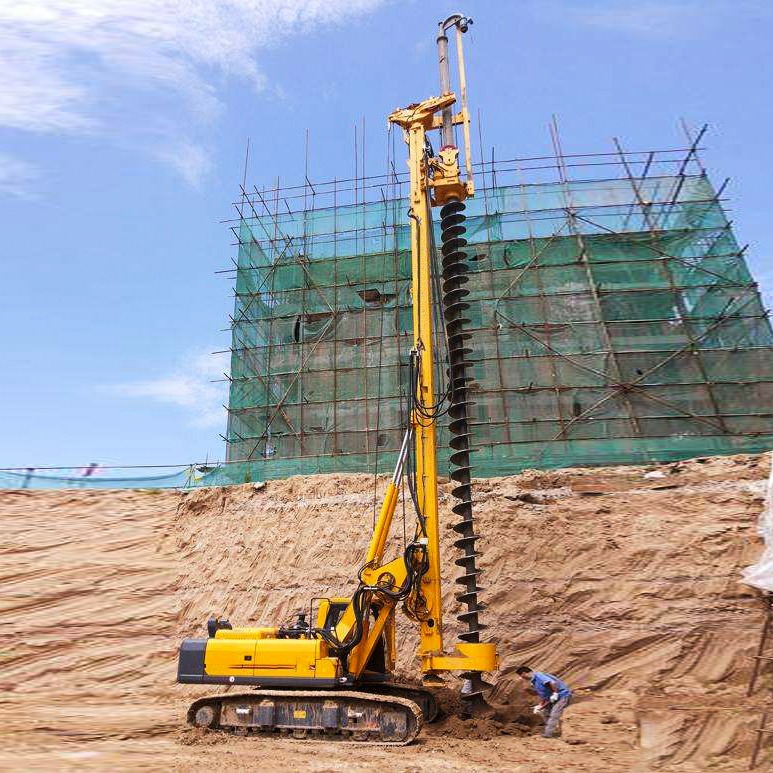

CAT Chassis Max Drilling Depth 16.5m Hydraulic CFA Rotary Drilling Rig
Performance
1. The leading self-propelled hydraulic long spiral drilling rig , can change transport state into working state rapidly;
2. High-performance hydraulic system and control system, ensure the machine efficient construction and real-time monitor;
3. High security according to European Union safety standards EN16228 design meets the requirements of dynamic and static stability,and promises construction safty.
4. With concrete volume display system,can realize the precise construction and measurement;
5. The innovative depth measurement system has higher precision than ordinary rig;
6. All-hydraulic power head construction,the output torque is stable and smooth;
7. Power head can change torque according to the needs of construction,which ensures higher efficiency;
8. Mast automatically adjusts the vertical to enhance the accuracy of the hole;
9. The innovative design Wind-fire Wheels ensures work safer in nighttime;
10. The Humanized rear design can increase storage space effectively;
11. The new design of the secondary interface,makes the operation more convenient.
Main Technical Parameters
| Technical Parameters | ||
| Euro Standards | U.S. Standards | |
| Max drilling depth | 16.5m | 54 ft |
| Max drilling diameter | 800mm | 32in |
| Engine model | CAT C-7 | CAT C-7 |
| Rated power | 187KW | 251HP |
| Max torque for CFA | 90kN.m | 66357lb-ft |
| Rotating speed | 8～29rpm | 8～29rpm |
| Max crowd force of winch | 150kN | 33720lbf |
| Max extraction force of winch | 150kN | 33720lbf |
| Stroke | 12500mm | 492in |
| Max pulling force of main winch (the first layer) | 170kN | 38216lbf |
| Max pulling speed of main winch | 78m/min | 256ft/min |
| Wire line of main winch | Φ26mm | Φ1.0in |
| Undercarriage | CAT 325D | CAT 325D |
| Track shoe width | 800mm | 32in |
| width of crawler | 3000-4300mm | 118-170in |
| Whole machine weight | 55T | 55T |
Supply Ability:
50 Set/Sets per Month CAT Chassis Max Drilling Depth 16.5m Hydraulic CFA Rotary Drilling Rig
Packaging & Delivery
Packaging Details:
CAT Chassis Max Drilling Depth 16.5m Hydraulic CFA Rotary Drilling Rig: Standard packing, spare parts will put into the wooden cases then transport by the container, big model will be nude packing.
Port:
Tianjin port, Shanghai port, or as request
FAQ:
Q1:WHAT'S YOUR PAYMENT TERM?
A: We accept T/T(30% down payment and balance before shipping) and L/C mostly. But if you prefer other payment terms please contact us for further information.
Q2:WHATS'S THE WARRANTY TIME?
A:From the date of shipment, 1 year or 1500 working hours,whichever comes first.
