CFA Rotary Drilling rig mounted on Caterpillar Base with pull down winch system

Basic Information
Place of Origin: CHINA
Brand Name: SINOVO
Certification: CE/ISO/SGS
Model Number: TR280W
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Export Package
Delivery Time: 7-10 work days
Supply Ability: 30 unit unit month
Detail Information
Name: 280KN Hydraulic CFA Rotary Drilling Rig For Piling Model: TR280W
Max Drilling Depth: 26m Max Drilling Diameter: 1200mm
Engine Model: CAT C-9 Rated Power: 261kw
Undercarriage: CAT 336D Total Weight With Kelly Bar: 78T
High Light:

280kn cfa piling rig

,

rotary drilling cfa piling rig

,

hydraulic cfa drilling rig


Product Description

Hydraulic CFA Multifunctional Piling Borehole Rotary Drilling Rig Machine mounted on Caterpillar Base



TR280W CFA rotary drilling rig is mainly used in the contruction of civil and bridge engineering, which adopts advanced hydraulic loading back technology, integrates advanced electronic control technology. The whole performance of TR280W rotary drilling rig has reached advanced world standards.The corresponding improvement on both structure and control, which makes the structure more simple and compact the performance more reliable and operation more humanized.



TR280W CFA rotary drilling equipment is suitable for for the following application:
a. Drilling with telescopic friction or interlocking
Kelly bar – standard supply;
b. Long hollow stem auger (CFA System) with or without kelly extensions;


Such as CFA piling drilling and drilling cased boreholes,



Technical Parameters of TR280 CFA Rotary Drilling Rig:



Technical parameters


Euro Standards

U.S. Standards

Max drilling depth by CFA

26m

85 ft

Max drilling diameter by CFA

1200mm

47in

          Max drilling depth by kelly bar             85m            278.8
          Max drilling diameter by kelly bar            2500mm            98.42in

Engine model

CAT C-9

CAT C-9

Rated power

261KW

350HP

Max torque for CFA

120kN.m

88476lb-ft

Rotating speed

6~23rpm

6~23rpm

Max crowd force of winch

280kN

62944lbf

Max extraction force of winch

280kN

62944lbf

Stroke

14500mm

571in

Max pulling force of main winch (the first layer)

240kN

53952lbf

Max pulling speed of main winch

63m/min

207ft/min

Wire line of main winch

Φ30mm

Φ1.2in

Undercarriage

CAT 336D

CAT 336D

Track shoe width

800mm

32in

width of crawler

3000-4300mm

118-170in

Whole machine weight

78T

78T























































Features and advantages of TR280 CFA rotary drilling rig:



1. The power head of TR280W CFA rotary drilling rig has the function of high-speed soil rejection; the maximum speed can reach to 70r/min. It completely solves the problem of soil rejection difficulty for small diameter pile hole construction.


2. The main and vice winch of TR280W CFA rotary drilling rig are all located in the mast which are easy to observe the direction of the rope. It improves the mast stability and construction safety.


3. CAT C-9 engine is chosen to meet the state III emission requirements with economic, efficient, environmentally friendly and stable characteristics.


4. The hydraulic system adopts the international advanced concept, specially designed for the rotary drilling system. Main pump, power head motor, main valve, auxiliary valve, walking system, rotary system and the pilot handle are all import brand. The auxiliary system adopts the load-sensitive system to realize the ondemand distribution of the flow. Rexroth motor and balance valve are chosen for the main winch.


5. All the key parts of the electric control system (such as display, controller, and the inclination sensor) adopt imported components of international famous brands EPEC from Finland, and use air connectors to make special products for domestic projects.


6. TR280W CFA rotary drilling rig is no need to disassemble the drill pipe before transporting which is transition convenient. The whole machine can be transported together.


7. The width of chassis is 3m which can work stability. The superstructure is optimizing designed; engine is designed at the side of the structure where all components are located with rational layout. The space is large which is easy for maintenance.

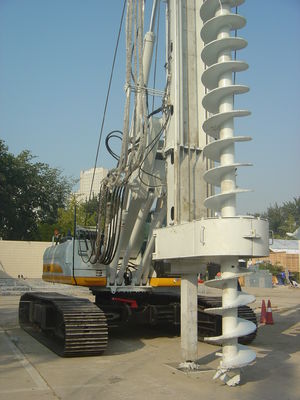

CFA Rotary Drilling rig mounted on Caterpillar Base with pull down winch system 0

CFA Rotary Drilling rig mounted on Caterpillar Base with pull down winch system 1CFA Rotary Drilling rig mounted on Caterpillar Base with pull down winch system 2CFA Rotary Drilling rig mounted on Caterpillar Base with pull down winch system 3
